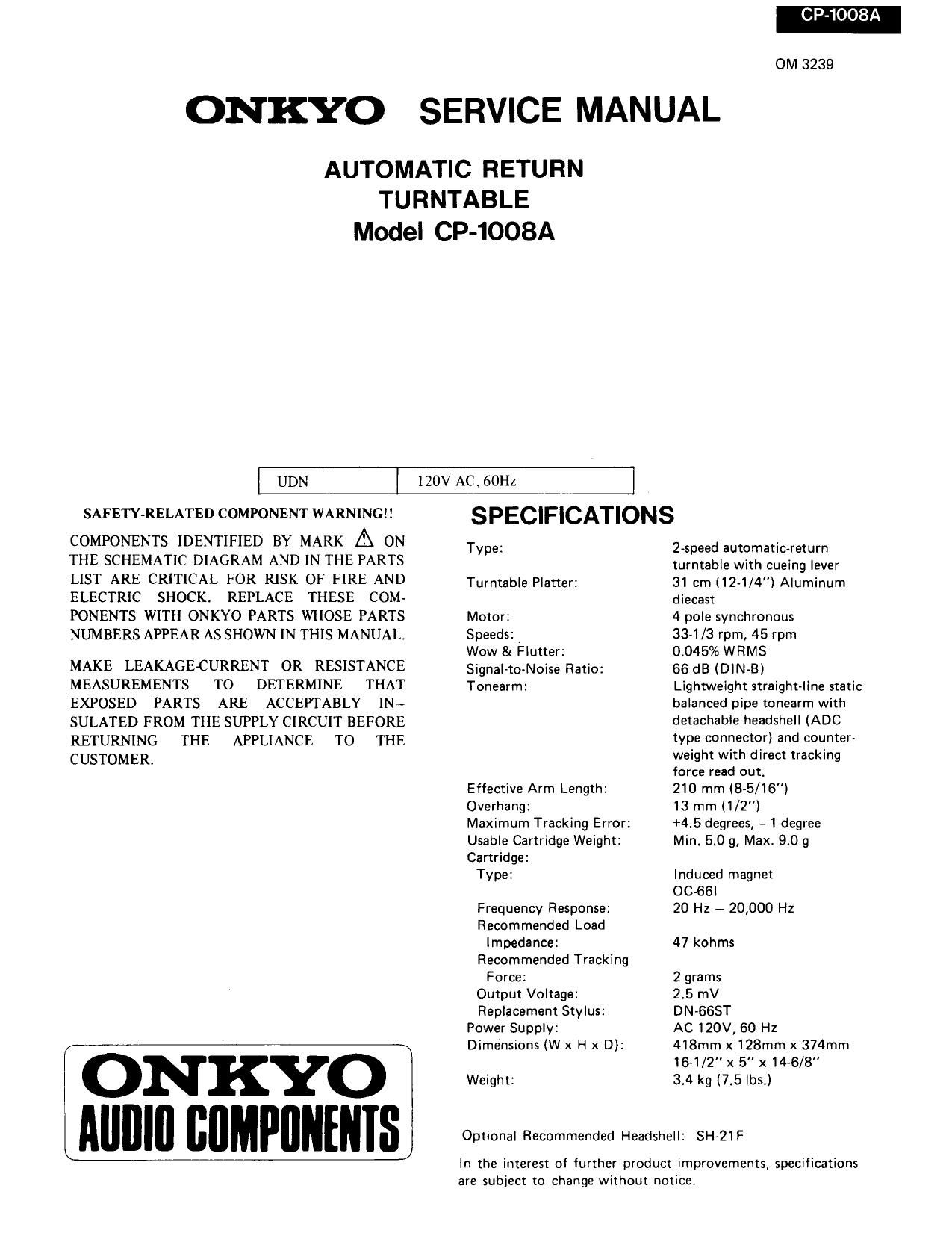

Onkyo CP 1008 A Service Manual

Page 1

CP-1008A

OM 3239

ONKYO SERVICE MANUAL

AUTOMATIC RETURN
TURNTABLE
Model CP-1008A

UDN

120V AC, 60Hz

SAFETY~RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A ON
THE SCHEMATIC DIAGRAM AND IN THE PARTS
LIST ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE THESE COM-
PONENTS WITH ONKYO PARTS WHOSE PARTS
NLWIBERS APPEAR AS SHOWN IN THIS MANUAL.

MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPTABLY INV-
SULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE APPLIANCE TO THE
CUSTOMER.

i ONKYO

SPECIFICATIONS

Type:
Turntable Platter:

Motor:

Speeds: _

Wow & Flutter:
Signal-toNoise Ratio:
Tonearm:

Effective Arm Length:
Overhang:

Maximum Tracking Error:

Usable Cartridge Weight:
Cartridge:
Type:

Frequency Response:
Recommended Load
impedance:
Recommended Tracking
Force:
Output Voltage:
Replacement Stylus:
Power Supply:
Dimensions (W x H x D):

Weight:

2-speed automatic-return
turntable with cueing lever
31 cm (12-1/4) Aluminum
diecast

4 pole synchronous

33-1/3 rpm, 45 rpm

0.045% WRMS

66 dB (DIN»B)

Lightweight straight-line static
balanced pipe tonearm with
detachable headshell (ADC
type connector) and counter-
weight with direct tracking
force read out.

210 mm (8»5/16)

13 mm (1/2")

+4.5 degrees, -1 degree

Min. 5.0 9, Max. 9.0 g

Induced magnet
00%|
20 Hz - 20,000 Hz

47 kohms

2 grams

2.5 mV

DN-668T

AC 120V, 60 Hz

418mm x 128mm x 374mm
16-1/2" x 5 x 146/8"

3.4 kg (7.5 lbs.)

Lnunln BuMPflNENISJ Optional Recommended Headshell: SH-21F

in the interest of further product improvements. specifications
are subject to change without notice.
