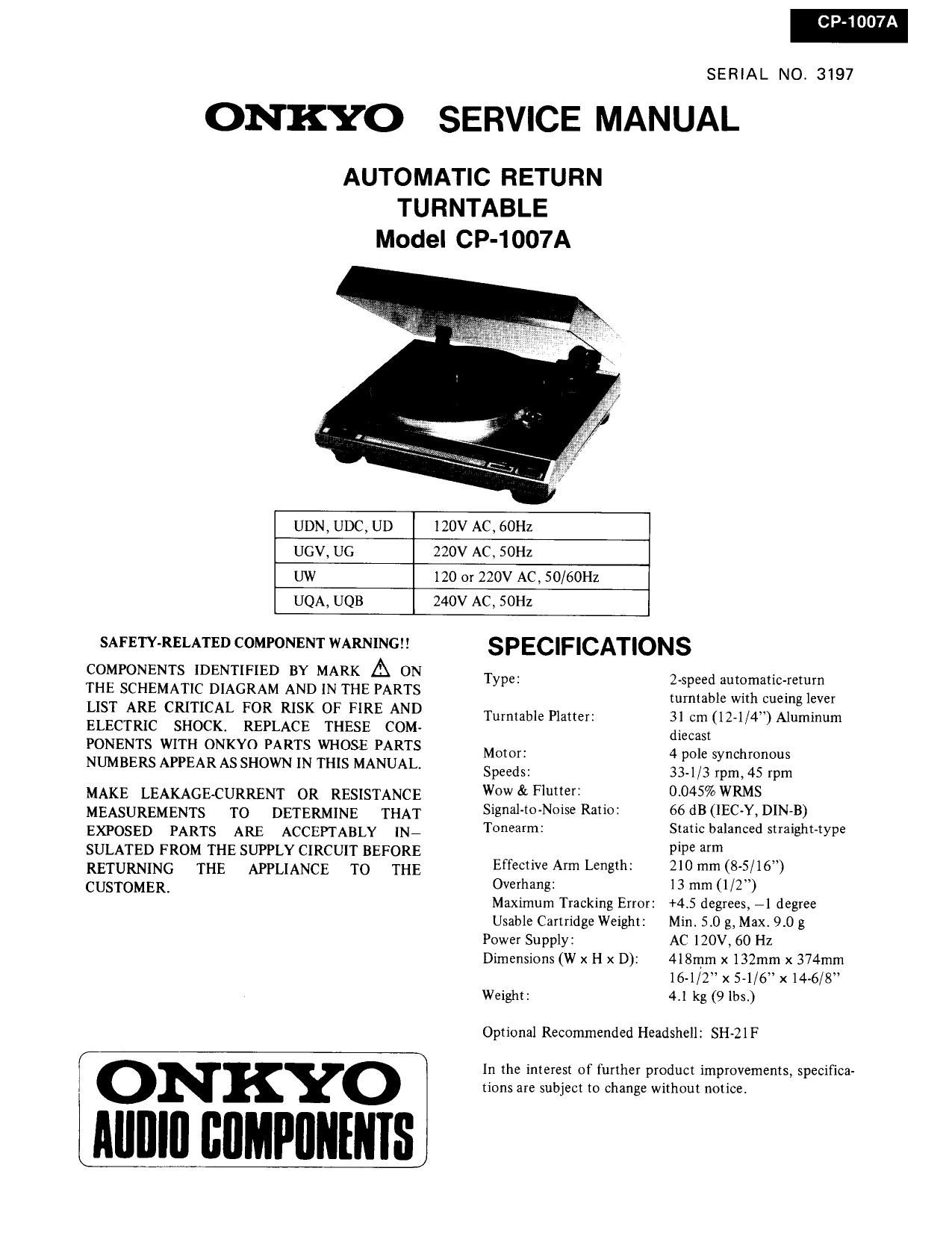

C P-1 007A

SERIAL NO. 3197

ONKYO SERVICE MANUAL

AUTOMATIC RETURN
TURNTABLE
Model CP-1007A

UDN, UDC, UD

120V AC, 60Hz

UGV, UG

220V AC, 50Hz

UW

120 or 220V AC, SO/60Hz

UQA, UQB

240V AC, SOHZ

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A ON
THE SCHEMATIC DIAGRAM AND IN THE PARTS
LIST ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE THESE COM<
PONENTS WITH ONKYO PARTS WHOSE PARTS
NUMBERS APPEAR AS SHOWN IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPTABLY lNi
SULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE APPLIANCE TO THE
CUSTOMER.

1 ON KYO
AIIIIIII BIIMPIIIIIIIIS

SPECIFICATIONS

Type:
Turntable Platter:

Motor:

Speeds:

Wow & Flutter:
SignaI-to-Noise Ratio:
Tonearm:

Effective Arm Length:
Overh ang:

Maximum Tracking Error:
Usable Cartridge Weight:
Power Supply:
Dimensions (W x H x D):

Weight:

2-speed automatic~return
turntable with cueing lever
31 cm (12-1/4) Aluminum
diecast

4 pole synchronous

33-1/3 rpm, 45 rpm
0.045% WRMS

66 dB (IEC-Y, DIN-B)
Static balanced straithype
pipe arm

210 mm (8-5/16)

13 mm (1/2)

+45 degrees, -1 degree
Min. 5.0 g, Max. 9.0 g

AC 120V, 60 Hz

418mm x 132mm x 374mm
16-1/2" x 5-1/6"x14-6/8
4.1 kg (9 lbs.)

Optional Recommended Headshell: SH-ZIF

In the interest of further product improvements, specifica-
tions are subject to change without notice.
