Onkyo CBX 300 Service Manual

This is the 24 pages manual for Onkyo CBX 300 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 24
Onkyo CBX 300 Service Manual

Extracted text from Onkyo CBX 300 Service Manual (Ocr-read)


Page 1

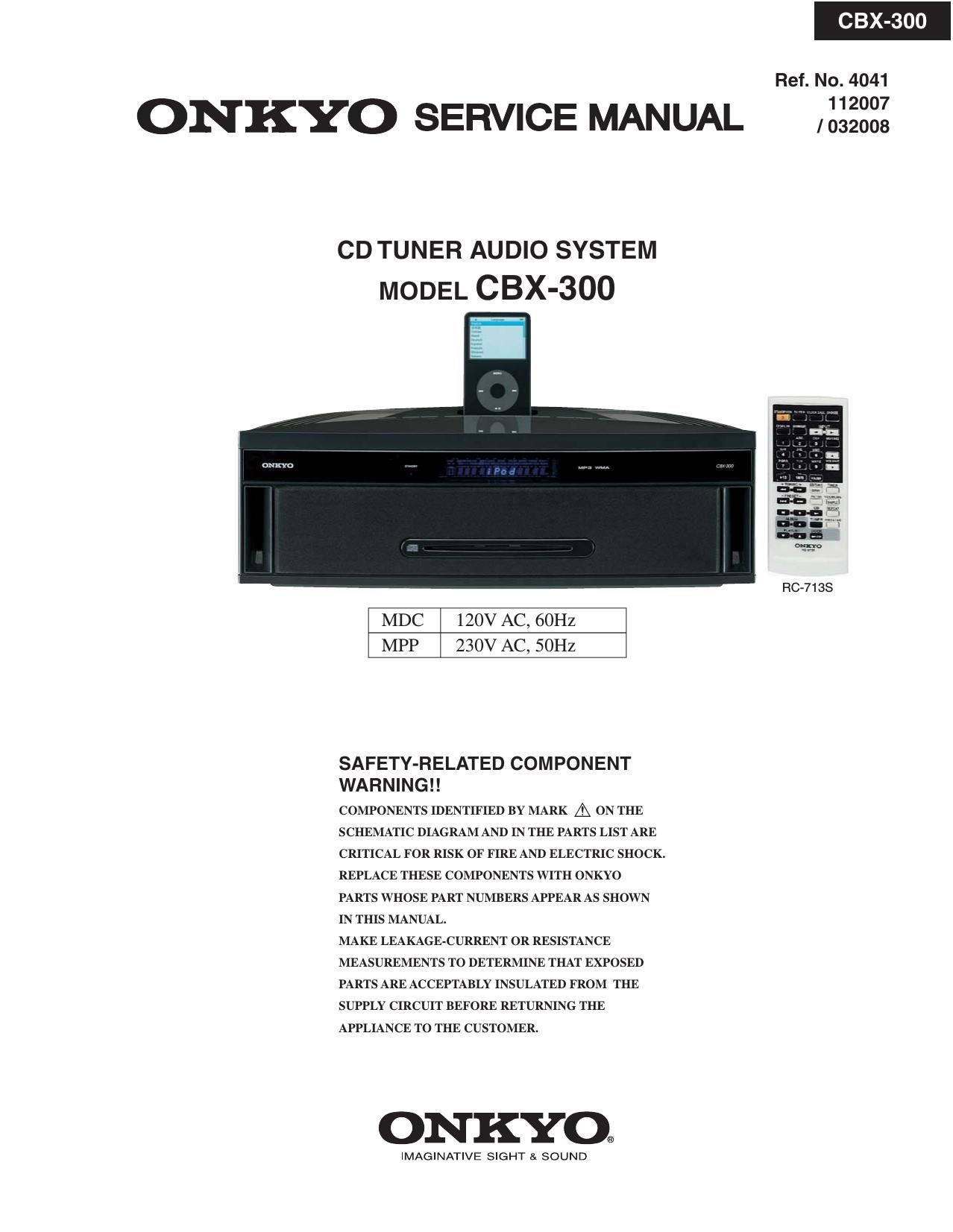

CBX-300

Ref. No. 4041

ONKYO SERVICE MANUAL $2332

CD TUNER AUDIO SYSTEM
MODEL CBX-300

RC-713S

MDC 120V AC, 60Hz
MPP 230V AC, SOHZ

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO®

IMAGINATIVE SIGHT SI SOUND
