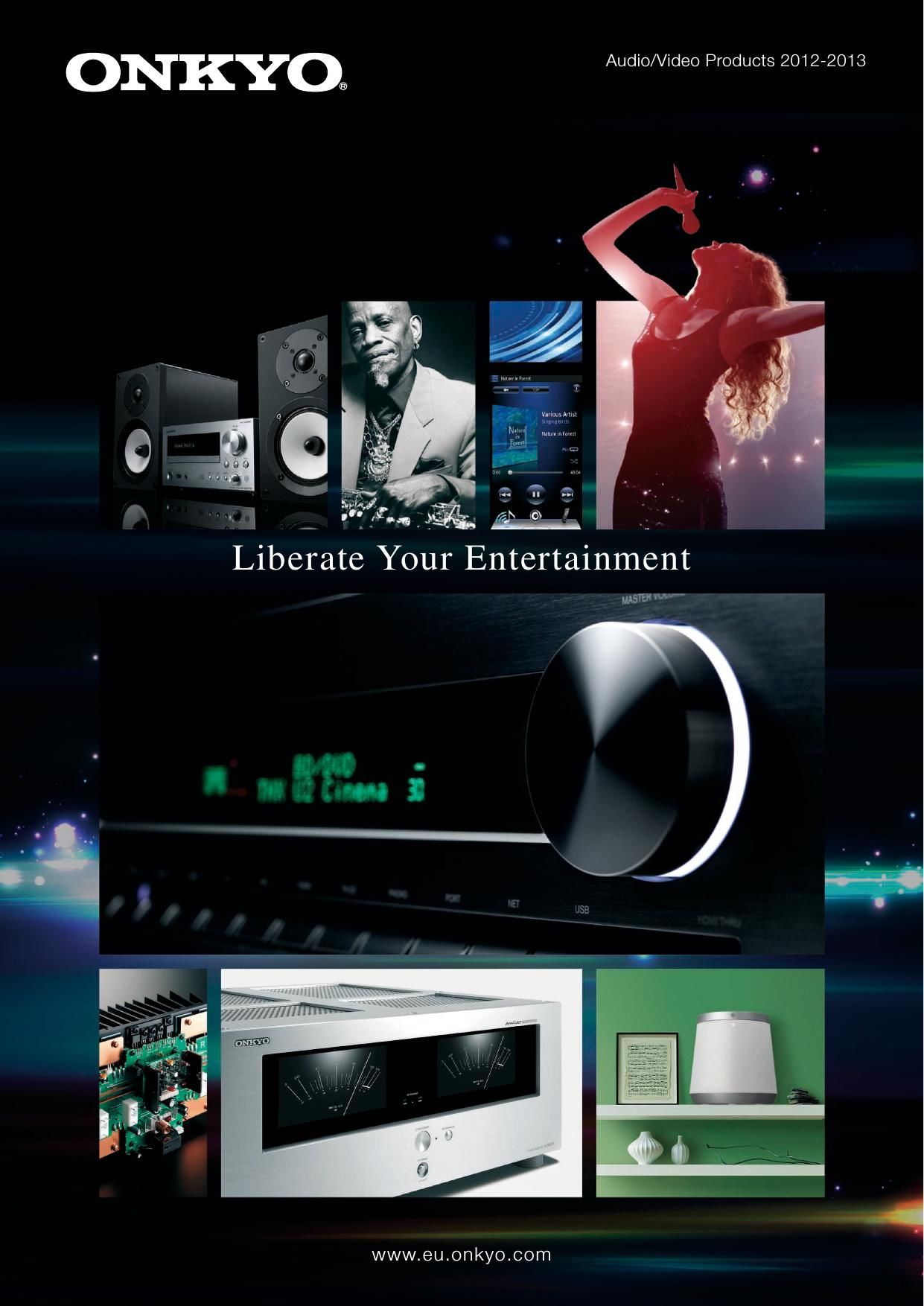

Onkyo AV PRODUCTS 2012 13 Catalog
This is the 16 pages manual for Onkyo AV PRODUCTS 2012 13 Catalog.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo AV PRODUCTS 2012 13 Catalog (Ocr-read)
Page 1
2 Home Cinema Components Time for Living If ar t is life, our A/V products make sure youre living well by breathing new energy and vitality into your favorite performances. Until the last note fades and the credits roll, you may forget theyre even there. There are no distractions to break the spell. To ensure this kind of transparent performance, ever y mid-range and high-end A/V receiver we make is THX ® cer tified, having passed more than 2000 bench tests for cinema-like sound. We include more HDMI ® connections than any other brand, and make it easier for you to stream content from online ser vices, PC, smar t phone, and tablet. To share the magic throughout your home, weve sourced the best technology to join our own advanced amplification techniques. And we sweat ever y detail on ever y product-from our entr y-level home cinema packages right up to the stunning TX-NR5010 flagship-for exhilarating performance ever y time. Life is shor t, after all. Its time to star t living.
Page 2
Our high-end models feature a massive toroidal transformer, with separate transformers for audio and video processing. From the mid range and up, the power amp and pre-amp are isolated to minimize interference. Rigid anti-resonant chassis and separate side and front panels are used on our most powerful model, as are gold-plated inputs, outputs, and speaker posts. Our A/V receivers feature more HDMI inputs than ever to accept all of your HD sources. HDMI enables decoding of Dolby ® TrueHD and DTS-HD Master Audio ™. It also suppor ts 3D video playback, and powers our user-friendly GUI. The latest Onkyo network receivers feature InstaPrevue ™ technology, which displays a series of video thumbnails instead of HDMI por t numbers. You can now preview connected content at a glance, and choose an HDMI source far more easily. Selected 2012 models also feature a front-panel HDMI/MHL por t for 1080p display of media stored on compatible smar t phone, with up to 7.1 channels of surround sound. Selected receivers feature the HQV ® Vida ™ VHD1900 processor, upscaling lower-quality video sources to breathtaking 1080p. Mar vells Qdeo ™ technology upscales all video up to 4K with a compatible display, while an ISF input calibration system dramatically improves display performance. Audysseys MultEQ ® XT32 and 2EQ ® acoustic correction systems equalize the sound to suit your room shape, guaranteeing the best performance from your home cinema. DTS Neo:X ™, Audyssey DSX ®, and Dolby ® Pro Logic ® IIz expand audio sources to deliver up to 11 channels of surround sound on selected Onkyo receivers*. Front Wide or Front Height channels carr y directional effects or add a ver tical dimension to your movie and game soundtracks. *11-channel upmixing supported on TX-NR5010 and TX-NR3010. Additional stereo amplifier required. To achieve THX ® Ultra2 Plus ™ or THX ® Select2 Plus ™ cer tification, Onkyos mid-range and high-end A/V receivers are rigorously and independently tested. Whether youre an occasional listener or a passionate music fan, Onkyos DLNA-cer tified network receivers connect you to a world of online audio content. Explore internet radio, stream music, and access libraries stored on PC . Note: Availability of internet radio and music streaming ser vices depends on region. Some ser vices may require a firmware update. Integrated household enter tainment is now a reality, with Onkyo A/V receivers able to distribute and power audio in up to three separate rooms of your home. And with our top-end models, you have the added advantage of HD video in a second room. WRAT is a circuit topology that reduces distor tion across the frequency range. Each circuit has a separate link to the power supply to cancel electrical noise, while high instantaneous current capability ensures a sustained, stable supply of power. Our amps also feature discrete, high- quality output-stage components. Found on mid-range models and up, this advanced amplification circuit incorporates a low negative feedback design to remove distor tion and preser ve the natural life and character of audio signals. Our flagship model employs 192 kHz/32-bit Burr-Brown DACs to achieve the best dynamic performance and better tolerance to clock jitter. All other models are graced with high- performance Burr-Brown 192 kHz/24-bit DACs. In addition to quality DACs, VLSC employs a unique digital- to-analog conversion circuit to fur ther mitigate the effects of signal noise. Our technology produces a pristine analog signal based on the digital source. Hybrid Standby mode provides HDMI through functionality while the network A/V receiver is powered down. Now you have the option of using your game console or Blu-ray player without having to turn on your home cinema. You can also power up using Onkyo Remote Apps for iPhone and Android phone. Experience stunning realism and impact with four gaming modes-Rock, Spor ts, Action, or Role Playing Game (RPG)- optimizing the surround sound to help you get the most from your favorite games. At the touch of a button, easy-to-navigate menus appear overlaid on screen. The HDMI-enabled Graphical User Interface gives instant access to home cinema settings, guiding you through the initial set-up, and making in-program adjustments quick and easy. Most Onkyo receivers feature a front-panel USB por t for iPod and iPhone. The connection carries audio signals to the receivers DACs in digital format. This results in superior sound quality. Selected receivers also feature a rearside USB por t for our optional wireless LAN adapter. The optional UWF-1 Wireless LAN Adapter lets you integrate your music life without unsightly wires. Simply plug it into your network receivers USB and enjoy smooth wireless access to the local network. Onkyos UBT-1 Bluetooth USB Adapter (sold separately) lets you stream music from compatible devices-such as cellphones, laptops, and tablets-with aptX ® coding technology delivering truly outstanding wireless audio quality. High-Precision Audiophile Build HDMI ® for Seamless HD Entertainment InstaPrevue ™ Technology Connect Your Smart Phone with MHL ™ World-Beating Picture Quality Tailored to Your Unique Listening Space More Realistic Surround Sound THX ® is a Trusted Performance Guarantee Enjoy Online Audio with Hi-Fi Sound Smooth and Easy Housewide Integration WRAT (Wide Range Amplifier Technology) Three-Stage Inverted Darlington Circuitry Digital-to-Analog Conversion Stage VLSC ™ (Vector Linear Shaping Circuitry) Hybrid Standby Saves Energy and Money Four Thrilling Audio Modes for Gamers Overlaid OSD for Stress-Free Operation Plug and Play with Extra USB Connections Wireless-Ready with USB Adapter Stream Direct From Your Handset or Tablet Core Technology 3
