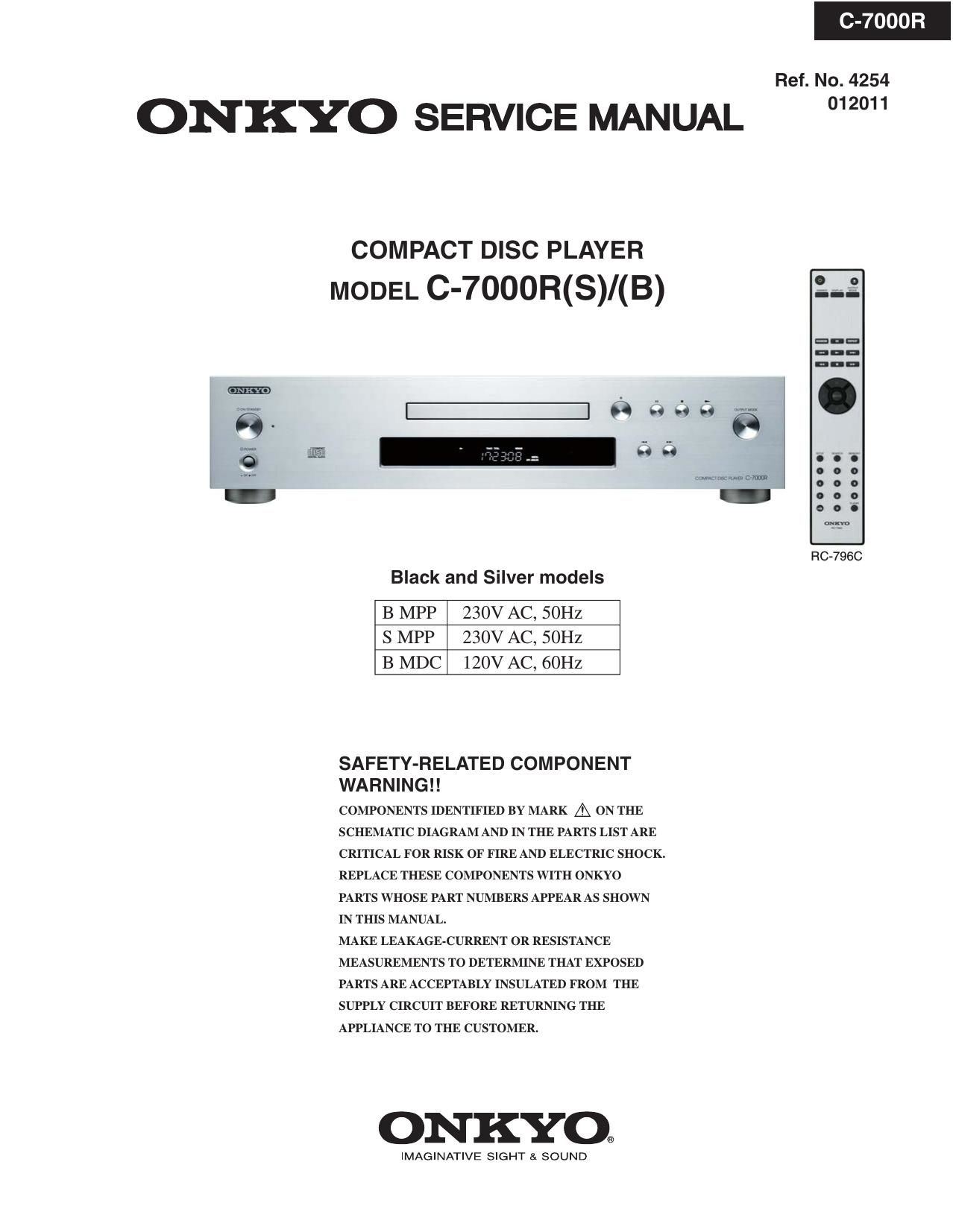

C-7000R

Ref. No. 4254

ONKYO SERVICE MANUAL 2"

COMPACT DISC PLAYER
MODEL C-7000R(S)/(B)

II
In

OI 3x I
2.
i;
m
0

0.9..
V 00.9.;
.0000

i
'3

RC-7960
Black and Silver models

B MPP 230V AC, SOHZ
S MPP 230V AC, SOHZ
B MDC 120V AC, 60Hz

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO®

IMAGINATIVE SIGHT SI SOUND
