Onkyo ASV 640 Owners Manual

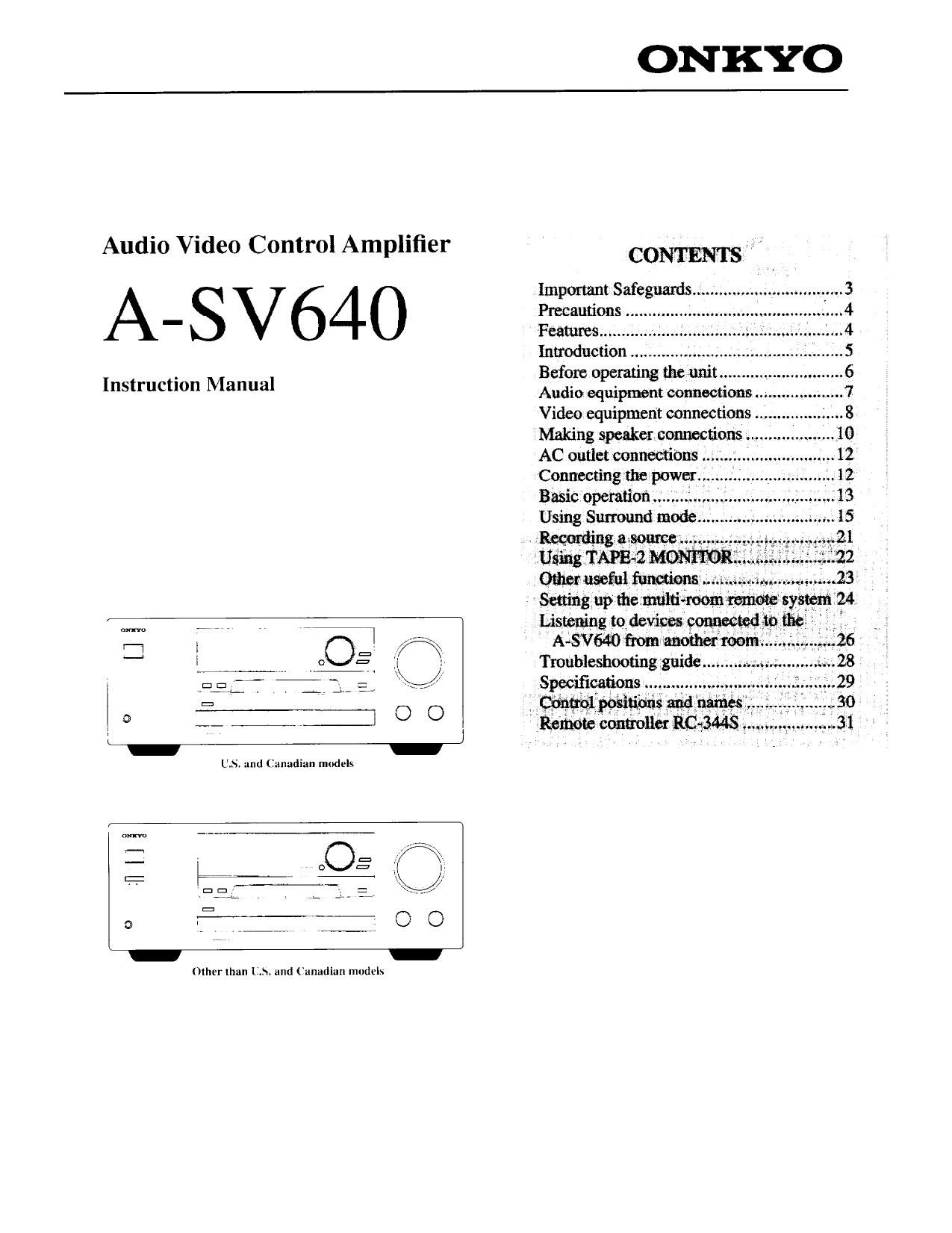

Page 1

ONKYO

Audio Video Control Amplifier

A-SV64O

Instruction Manual

o = :( 1,
Fig" 17 2., a J
o f. fig: 0 O

Lima to devim confided in

Other Ihan LA and (Canadian models

CONTENTS "

Important Safeguards ............
Precautions .......... '
Features .........
Introduction" ..
Before operating the unit
Audio equipment connections
Video equipment connections
Making speaker. connections M
AC outlet connections

Bésic opemfionw
Using Surround mode.

A-Wémfimnmmom ... .
Troubleshooting guidcw. .
Specifications, 29

:Wposi \ V 3,0
Roman cumullm RC 3443 . I

Page 2

Thank you for purchasing an Onkyo Audio Video Control Amplifier, Please read this manual thoroughly before mak-

ing connections and turning on the power, Following the instructions in this manual will enable you to obtain optimum perfor-
mance and listening enjoyment trom your new Audio Video Control Amplifier. Please retain this manual tor future reference,

Supplied accessories

I Remote controller
2 Batteries (size AA, R6. or UM-3)

@@

RC-344S

The following accessories are available only for worldwide

models.
N

I CV plug (Shape may vary
according to the area where
purchased.)

FCC Information for User

CAUTION:
Changes or modifications not expressly approved by the manur
facturer for compliance could void the users authority to 0ch
ate the equipment.

NOT E:
This equipment has been tested and found to comply with the limits
for a Class B digital device. pursuant to Ptu't |5 of the FCC Rules
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses. and can radiate radio frequency energy and. if not
installed and used in accordance With the instructions. may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation,
If this equipment does cause hamittil interference to radio or tclevi-
sion reception. which can be determined by turning the equipment
off and on. the user is encouraged to try to correct Ihe Interference
by one or more of the followmg measures:
0 Reorient or relocate the receiving antenna
0 Increase the separation between other equipment and the

receiver,
0 Connect the equipment into an outlet oil a circuit different
from that to which the receiver is connected.

O Consult the dealer or an experienced radio/TV technician for help

Replacement and mounting of an AC plug on the power supply cord
of this unit should be performed only by qualified service personnel.
O IMPORTANT
The wires in the mains lead are colored in accordance with the fol,
lowing code:

Blue : Neutral

Brown : Live
AS the colors of the wires in the mains lead of this apparatus may
not correspond with the colored markings identifying the terminals
in your plug. proceed as follows:
The Wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.
The Wire which is coloured brown must be connected to the termie
nal which is marked with the letter L or coloured red,
0 IMPORTANT
A 5 amp fuse is fitted in this plug. Should the fuse need to be
replaced. please ensure that the replacement fuse has a rating of 5
amps and that it is approved by ASTA or BSI to B81362. Check for
the ASTA mark or the 851 mark on the body of the fuse.
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE
SOCKET OUTLET IN YOUR HOME. THEN THE FUSE
SHOULD BE REMOVED AND THE PLUG CUT OFF AND DIS,
POSED OF SAFELY THERE IS A DANGER OF SEVERE
ELECTRICAL SHOCK IF THE CLIT OFF PLUG IS INSERTED
INTO ANY 1} AMP SOCKET.
If in any doubt. please consult a qualified electrician.

0 For models having a power cord With a polarized plug:
CAUTION : TO PREVENT ELECTRIC SHOCK. MATCH
WIDE BLADE OF PLLG TO WIDE SLOT. FULLY INSERT.

0 THIS DIGITAL APPARATUS DOES NOT EXCEED THE
CLASS B LIMITS FOR RADIO NOISE EMISSION FROM
DIGITAL APPARATUS SET OUT IN THE RADIO INTER-
FERENCE REGULATIONS OF THE CANADIAN DEPART-
MENT OF COMMUNICATIONS,

Sur Ies modeles dont la fiche est polari e:
ATTENTION: POUR EVITER LES Ci-iocs ELEC.
TRIQUES. INTRODUIRE LA LAME LA PLL'S LARGE DE LA
FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE
ET POUSSER JUSQUAU FOND.

0 LINTEREERENCE RADIO ELECTRIQUE GENEREE PAR
CET APPAREIL NUMERIQUE DE TYPE B NE DEPASSE
PAS LES LIMITES ENONCEES DANS LE REGLEMENT
SUR LES PERTURBATIONS RADIO ELECTRIQUES. SEC-
TION APPAREIL NUMERIQUE. DU MINISTERE DES
COMMUNICATIONS.

Declaration of Conformity

We. ONKYO EUROPE
ELECTRONICS GMBH
INDUSTRIESTRASSE 18/20
82] 10 GERMERING.
GERMANY

declare in own responsibility. that [he ONKYO product described
in this instruction manual is in compliance with the corresponding
technical standards such as EN55013. ENSSUZO. ENGOSSSAZI ,3
and EN60065

GERMERING. GERMANY E (W1

H. YAMAZOE
ONKYO EUROPE ELECTRONICS GMBH
