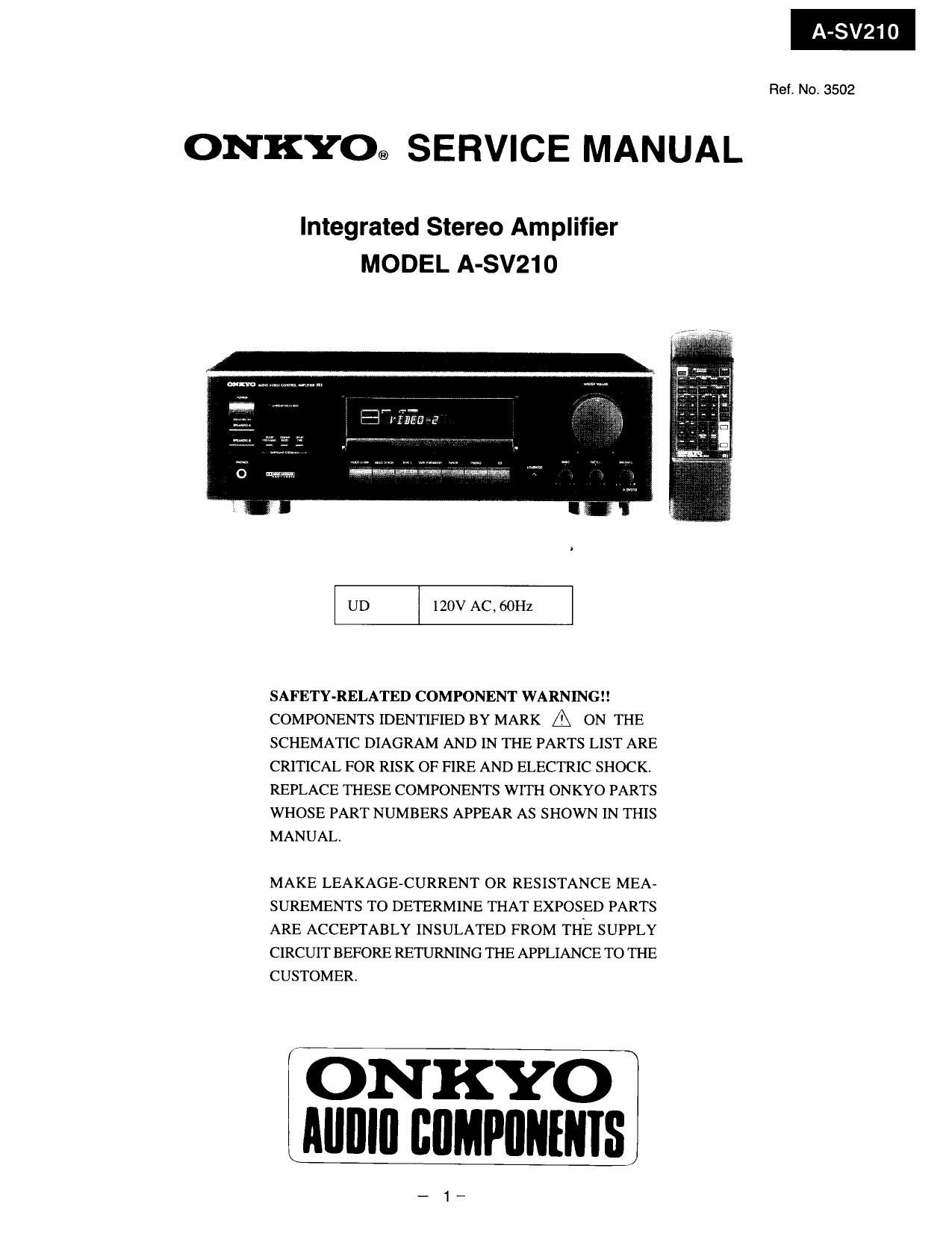

ONKYO® SERVICE MANUAL

Integrated Stereo Amplifier
MODEL A-SV21O

UD 120V AC. 60Hz

SAFETY-RELATED COMPONENT WARNINGI!
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK,
REPLACE THESE COMPONENTS WITH ON KYO PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE MEA-
SUREMENTS TO DETERMINE THAT EXPOSED PARTS
ARE ACCEPTABLY INSULATED FROM THE SUPPLY
CIRCUIT BEFORE RETURNING THE APPLIANCE TO THE
CUSTOMER.

{ ON KYO
, Alllllll liflMPflNINIS

\

_1._

Ref. No. 3502

Page 2

SPECIFICATIONS
AMPLIFIER SECTION

Power Output:

Front UR channels
100 watts per channel min. RMS. at 8 ohms, both channels
driven, from 40 Hz to 20.000 Hz, with no more than 0.08%

total harmonic distortion,

Front L/R and center channels
60 watts per channel min. RMS at 8 ohms, with no more
than 0.08% total harmonic distortion at 1.000 H2

Rear channels
15 watts per channel min. RMS at 8 ohms. with no more
than 0.3% total harmonic distortion at 1,000 Hz

0.08% at rated power (FRONT)

IM Distortion: 0.08% at rated power (FRONT)

Damping Factor: 50 at 8 ohms (FRONT)

Sensitivity and Impedance: Phono:

Total Harmonic Distortion:

2.5 mV/SO kohms
CD/T ape Play: 150 mV/50 kohms
Tape Rec: 150 mV/2.2 kohms
Mono out (SUBWOOFER): IV 2.2 kohms

120 mV RMS. at 1,000 Hz, 0.5% T1101

20 to 30.000 Hz, +/-l dB

RIAA Deviation: 20 to 20.000 Hz, +l-0.8 dB

Tone Control: BASS: +/710 dB at 100 Hz

TREBLE: +/-10 dB at 10,000 Hz

PHONO: 80 dB (IHF A. 5 mV input)
CD/TAPE: I00 (13 (IHF A)

Phone Overload:
Frequency Response:

Signal to Noise Ratio:

VIDEO SECTION

Signal sensitivity and impedance:
VDP/VCR input, output: I vap, 75 ohms

General

Power Supply:
Dimensions (W x H x D):

AC120 V. 60 Hz

455 x150>< 331mm
I7vl5/I6" X 5-7/8" x 13-1/16"
Weight: 9.8 kg (21.6 lbs.)

Specifications and features are subject to change without notice.

PRECAUTIONS

1.Replacing the fuses

E- This symbol located near the fuse indicates that
the fuse used is fast operating type. For continued protection
against fire hazard, replace with same type fuse. For fuse

rating refer to the marking adjacent to the symbol.

DESCRIPTION
6.3A»UL/T-237

CIRCUIT No. PART NO.
F901 252166Y

2.1nsulation resistance mesurement (Only USA. model)

ED' Ce symbole indique que le fusible utltse est a
rapide. Pour une protection permanente, n'utiliser que des
fusibles de meme type. Ce damier est indique 1a qu le present
symbol est appose.

Connect the insulating-resistance tester between the plug of power supply cable and the terminal GND on the back panel!

Specifications; More than 10 M9 at 500V.
