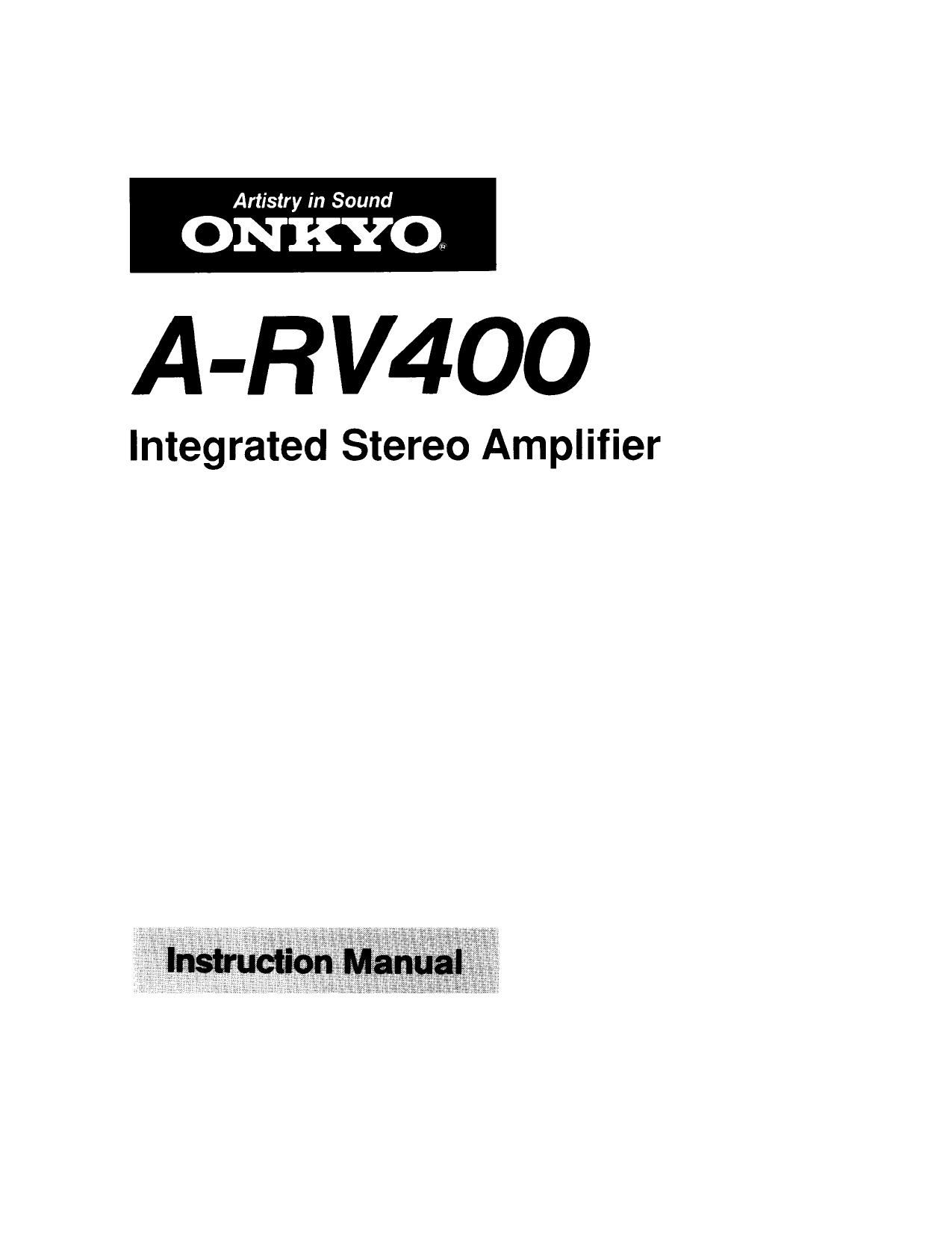

A-RV400

Integrated Stereo Amplifier

Page 2

0 Congratulations on your purchase of the ONKYO A-RV400 Integrated Amplifier. I Please
read this manual thoroughly before making connections and turning power on.

0 Following the instructions in this manual will enable you to obtain optimum performance
and listening enjoyment from your new A-RV400. I Please retain this manual for future re-

lerence.

Features ............................
Important safeguards...
Precautions .........................
System connections
Front panel facili es.
Operations ..............................

Troubleshooting guide.
Specifications ..............

CON TEN T5

Using the remote control transmitter

(DQQNUIWNN-l

Features
*

0 High Power Output

Delivering 100 watts of clean, continuous power per channel Into 8 ohms With no more than 0.08% total harmonicdistortion. the A-RVllOO

also boasts effortless drive of low Impedance loads,

0 Discrete Output Stage

Instead of the IC power amplifier circuitry used in some mid»priced amplifiers, Onkyo opted for a discrete output stage in the A-RVAOO
to ensureclean drive of low impedance loads In addition, linear swnching makes for minimal distortion. Onkyo's uncompromising amplilier
design philosophy is also reflected In the careful selection of the high quality parts used in the AERVAOO.

O Multi-Function Infrared Remote Control Included

The Included Wireless remote control covers virtually all of the A-RVAOO'S functions, Including power on/off, volume up/down, audio
muting, source direct on/off and input selector switching. it can also control the major lunctions of any Onkyo cassette deck, CD player
or tuner bearing the RI mark (turntables also in the U.S) alter you make the appropriate connections with the A»RV400,

O Source Direct Switch

The A-RV400s Source Direct Swnch lets you enioy the purest sound possible from any program source. Switch it on and the music
signal is routed directly into the power amp Circuitry, bypassing all tone and balance controls.

0 Two Sets of Video Input and Output Jacks
0 Front Panel Video Jacks

O Handsome Fluorescent Display
