Onkyo A 9555 Service Manual
This is the 40 pages manual for Onkyo A 9555 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo A 9555 Service Manual (Ocr-read)
Page 1

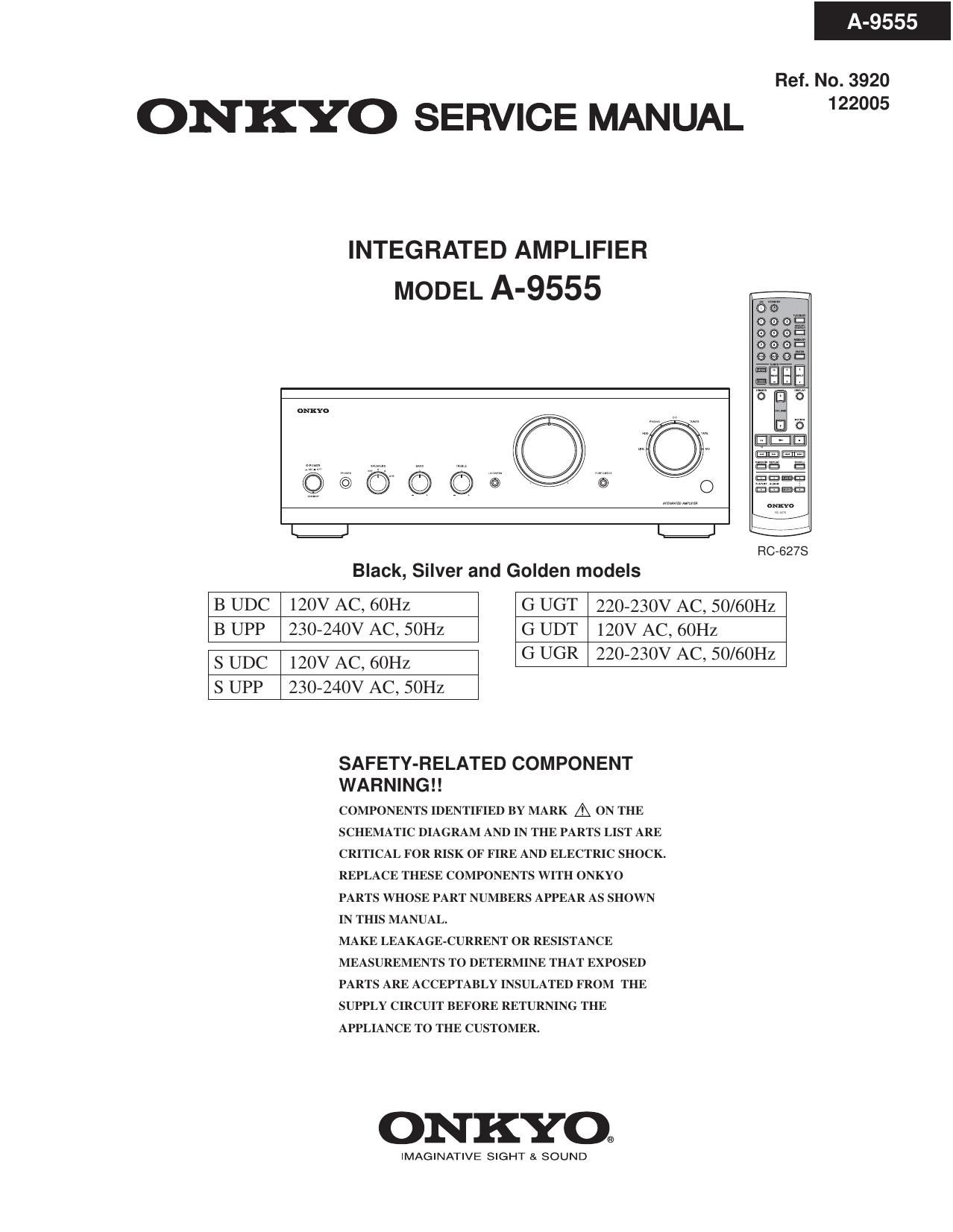

ONKYO SERVICE MANUAL
INTEGRATED AMPLIFIER
MODEL A-9555
ouln'o
Ref. No. 3920
122005
SAFETY-RELATED COMPONENT
WARNING! !
COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO.
IMAGINATIVE SIGHT & SOUND
FIG-627$
Black, Silver and Golden models
B UDC 120V AC, 60Hz G UGT 220-230V AC, 50/60Hz
B UPP 230-240V AC, SOHZ G UDT 120V AC, 6()Hz
S UDC 120V AC, 60Hz G UGR 220-230V AC, 50/60Hz
S UPP 230-240V AC, SOHZ
