Onkyo A 9010 Service Manual
This is the 11 pages manual for Onkyo A 9010 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo A 9010 Service Manual (Ocr-read)
Page 1

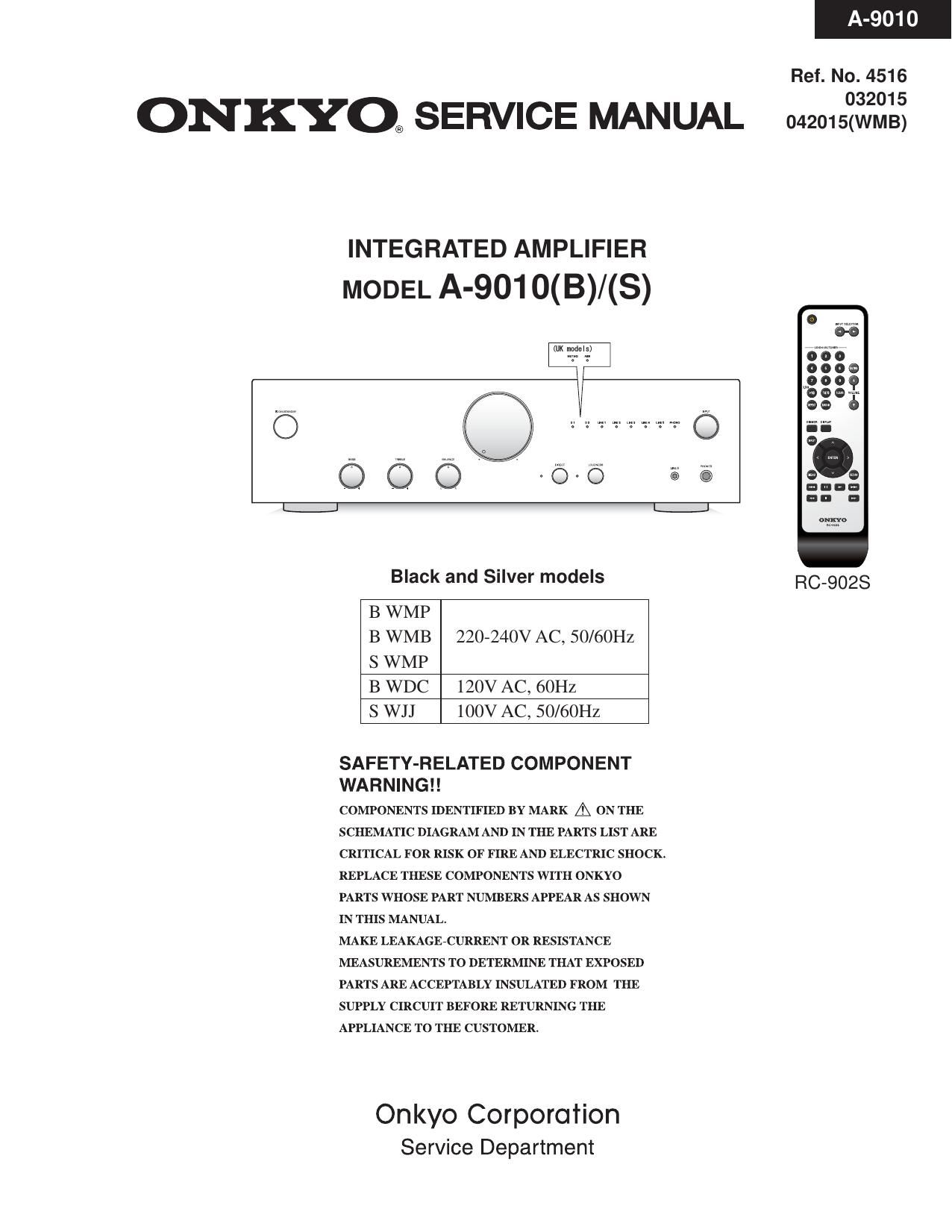

A-901 0
Ref. No. 4516
ONKYO, SERVICE MANUAL 042015333
INTEGRATED AMPLIFIER
MODEL A-9010(B)/(S)
(UK mdes)
Q |h_d
Black and Silver models RC-QOZS
B WMP
B WMB 220-240V AC, 50/60Hz
S WMP
B WDC 120V AC, 60Hz
S WJJ 100V AC, 50/60HZ
SAFETY-RELATED COMPONENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTARLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
Onkyo Corporation
Service Department
Page 2
A-9010
SERVICE PROCEDURE
INITIAL SETTING FOR SHIPPING
Initialization of memories.
Hold down [DIRECT button and then press [ON/STANDBY] button.
Unplug the power cord after it goes standby mode.
