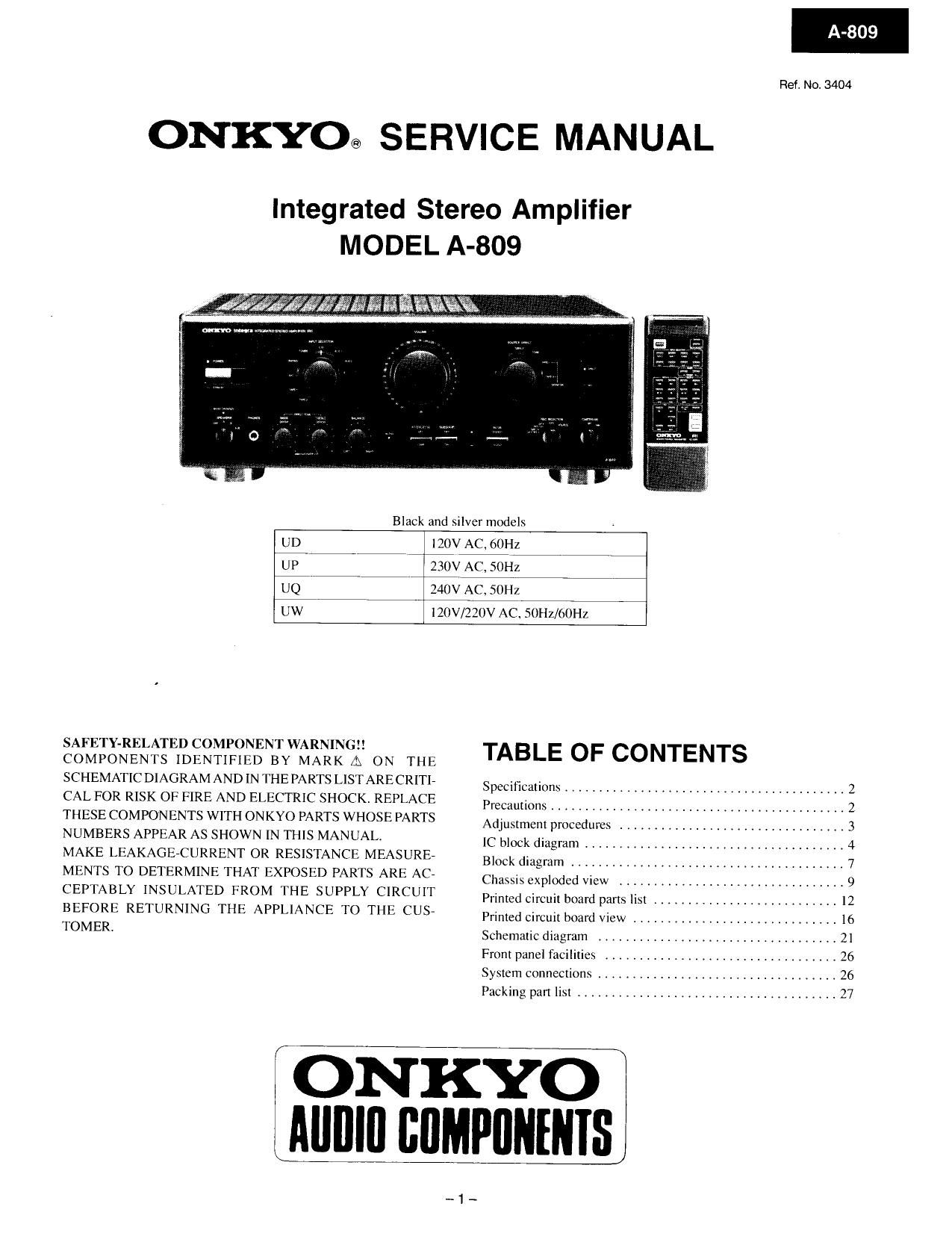

Onkyo A 809 Service Manual

Page 1

809

Ref. No, 3404
ONKYO® SERVICE MANUAL
lnteg rated Stereo Amplifier
Black and silver models
UD 120V AC, 60Hz
UP 230V AC, SOHZ
UQ 240V AC, SOHZ
UW HOV/220V AC. SOHZ/OOHZ
SAFETY-RELATED COMPONENT WARNING31
COMPONENTS IDENTIFIED BY MARK A ON THE TABLE OF CONTENTS
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARECRITL Specifications ________________________________ 2
CAL FOR RISK OF FIRE AND ELECTRIC SH()CK REPLACE PTCCHUIIOIIS .......................................... 2
THESE COMPONENTS WITH ONKYO PARTS IE-{05E PARTS Adjustment procedures ................................. 3
NUMBERS APPEAR AS SHOWN IN THIS MANLAL 1C block diagram ...................................... 4
MAKE LEAKAGEeCURRENT 0R RESISTANCE MEASURE, Block diagram ________________________________ 7
{YIENTS TO DETERMINE THAT EXPOSED PARTS ARE AC" Chassis exploded vi w ................................. 9
(EPTABLY INSULAIEP FROM FHEVSUP'PLY CIRCUIT Printed Circuit board parts list ........................... 12
BEFORE RETURNING FHE APPLIANCE TO THE (5" Printed circuit board view .............................. 16
TOMER Schematic diagram ................................... 21
Front panel facilities .................................. 26
System connections ................................... 26
Packing part list ...................................... 27

/.

l
l
l

ONKYO
Alllllfl BflMPflNfNIS

Page 2

A-809

SPECIFICATIONS

Power Output: 105 watts per channel, mini RMSI at 8 ohms,
both channels driven lrom 20 Hz to 20 kHz,
with no more than 0 008% Total harmonic
distortion,

303 watts at 2 ohms.

235 watts at 4 ohms

155 watts at 3 ohms

000896 at rated power

0.008% at 1 watt output

0.005% at rated power

150 at 8 ohms (1 kHz)

Dynamic Power:

Total Harmonic Distortion

lntermodulation Distortion:
Damping Factor:

Input Sensitivity/ Phono (MM): 2.5 mV/50 kohms

Impedance: Phono (MC): 160 uV/130 ohms
CD: 150 mV/30 kohms
TUNER: 150 mV/30 kohms
Tape Play: 150 mV/BO kohms

Output Lavel/lmpedance: Tape Rec: 150 mV/I .0 kohms (Phono)

Phono Overload: Phono (MM): 200 mV RMS. at1 kHz,

0.01 2% THD.

Tone Control

(Vol -20 dB): BASS: 18 dB at 100 Hz
TREBLE: i3 dB at 10 kHz

High Cut: 6 kHz (6 dB/Octave) (TREBLE min.)

Frequency Response: CD, Tuner: 2 szSO kHz
(+0, -1 d8)
RIAA Deviation: Phono (MM): i014 dB, 20 Hz -20 kHz
Subsonin Filter: ZOHZ (73MB: GdB/Oct)
Signal to Norse Phono (MM): 94 £13 (5.0 mV input)
Ratio (IHF»A): Phono (MC): 75 dB (0.5 mV input)
CD (DIRECT): 107 dB
Attenuator: -20 dB
Muting: *00

Power Supply: European models: ACZSOV, 50 Hz

U SVA & Canadian models:
U.K & Australia models:
Worldwide models:

Act 20V, 60 H1
ACZ4OV, 50 Hz
AC1 20 and 220V

switchable, 50/60 H1
Dimensions (W X H X D):455 X I70 X 420 mm
17-15/16" X (Sill/16~ X16-9/16"

Weight: 16 7 kg, 368 lbs.

PRECAUTIONS

l. Replacing the fuses
For continued protection against risk fire, replace only with same type and same rating fuse,

CIRCUIT NO. PART NO. DESCRIPTION

F90] 252052 7A ST-o. Primary fuse (120V, lZlW/ZZOV model)

F901 252075 25A»SE-EAK. Primary fuse (230V model)

F902 252077 4A-SE-EAK, Primary fuse (230V. 240V. 120V/220V model)

Insulation resistance mesurement (Only U.S.A. model)
Connect the insulatingeresistance tester between the plug of power supply cable and the terminal GND on the back panel. Specifications;
More than 10 M9 at 500Vl

Voltage selector (rear panel)

Worldwide models are equipped with a voltage selector to conform with local power supplies Be sure to set this switch to match the voltage
ot'the power supply in your area before turning the power switch on, Voltage is changed by sliding the groove in the switch with a screwdriver
to the up or down. Confirm that the switch has been moved all the way to the up or down before turning the power switch on. Models without
a voltage selector can only be used in areas where the power supply is the same as that of the unit.

220v ., 220v N
at Ac 220v at AC 120v
120v ~ 120v .

Page 8

A 047

-10_
