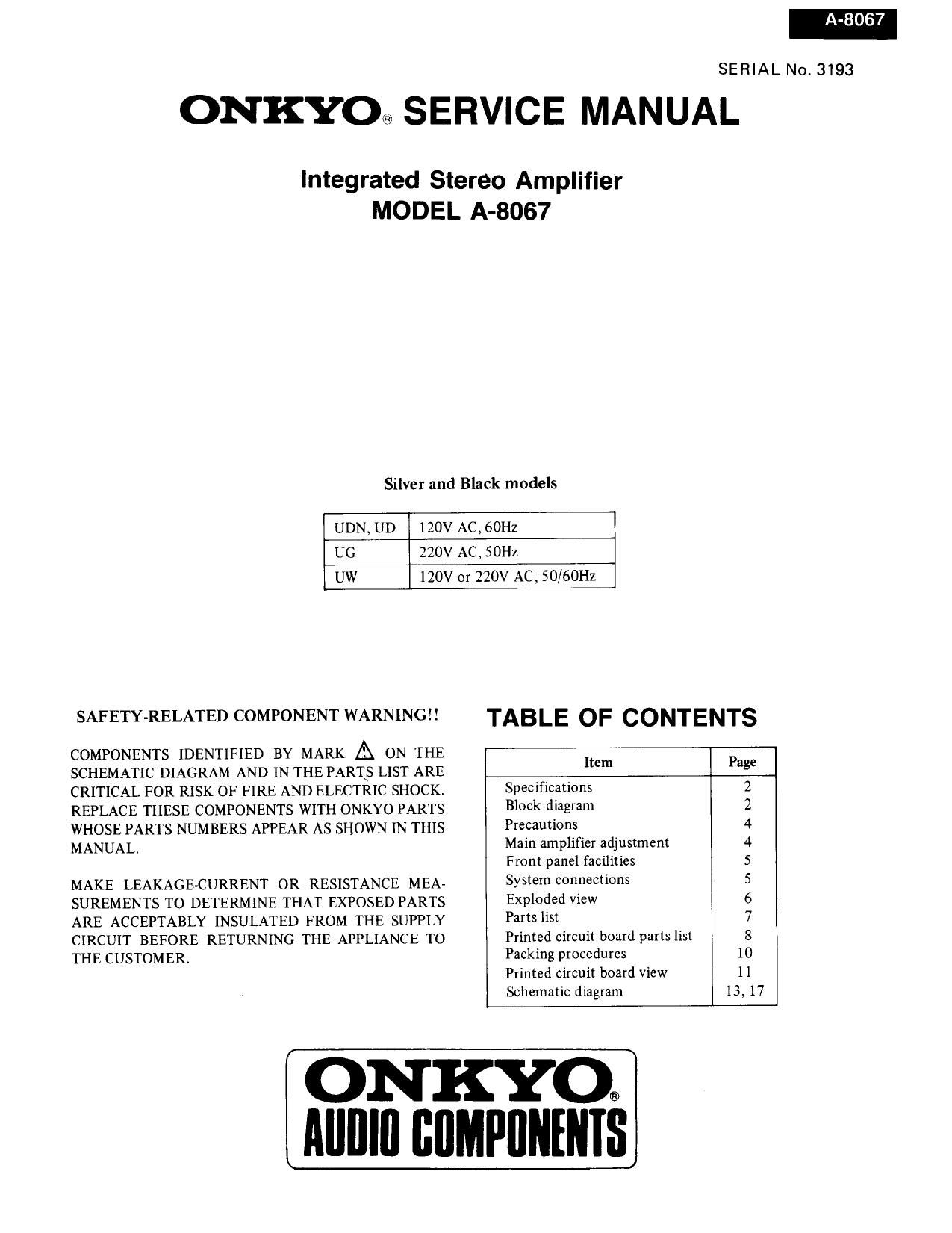

Page 1
A-8067
SERIAL No. 3193
ONKYO@ SERVICE MANUAL
Integrated Stereo Amplifier
MODEL A-8067
Silver and Black models
UDN, UD
120V AC , 60Hz
UG
220V AC, 50Hz
UW
120V or 220V AC, 50/60Hz
SAFETY-RELATED COMPONENT WARNINGII
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK
REPLACE THESE COMPONENTS WITH ONKYO PARTS
WHOSE PARTS NUMBERS APPEAR AS SHOWN IN THIS
MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE MEA-
SUREMENTS TO DETERMINE THAT EXPOSED PARTS
TABLE OF CONTENTS
Item
Page
Specifications
Block diagram
Precautions
Exploded View
ARE ACCEPTABLY INSULATED FROM THE SUPPLY P3181181
CIRCUIT BEFORE RETURNING THE APPLIANCE TO
THE CUSTOM ER.
Main amplifier adjustment
Front panel facilities
System connections
Printed circuit board parts list
Packing procedures
Printed circuit board View
Schematic diagram
\IGVIUIAANN
11
13,17
ON KYO®
Alllllll lllIMPIINENIS
Page 6
A-8067
CHASSIS-EXPLODED VIEW
