Onkyo A 8019 Service Manual
This is the 12 pages manual for Onkyo A 8019 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo A 8019 Service Manual (Ocr-read)
Page 1
SERIAL NO. 3186

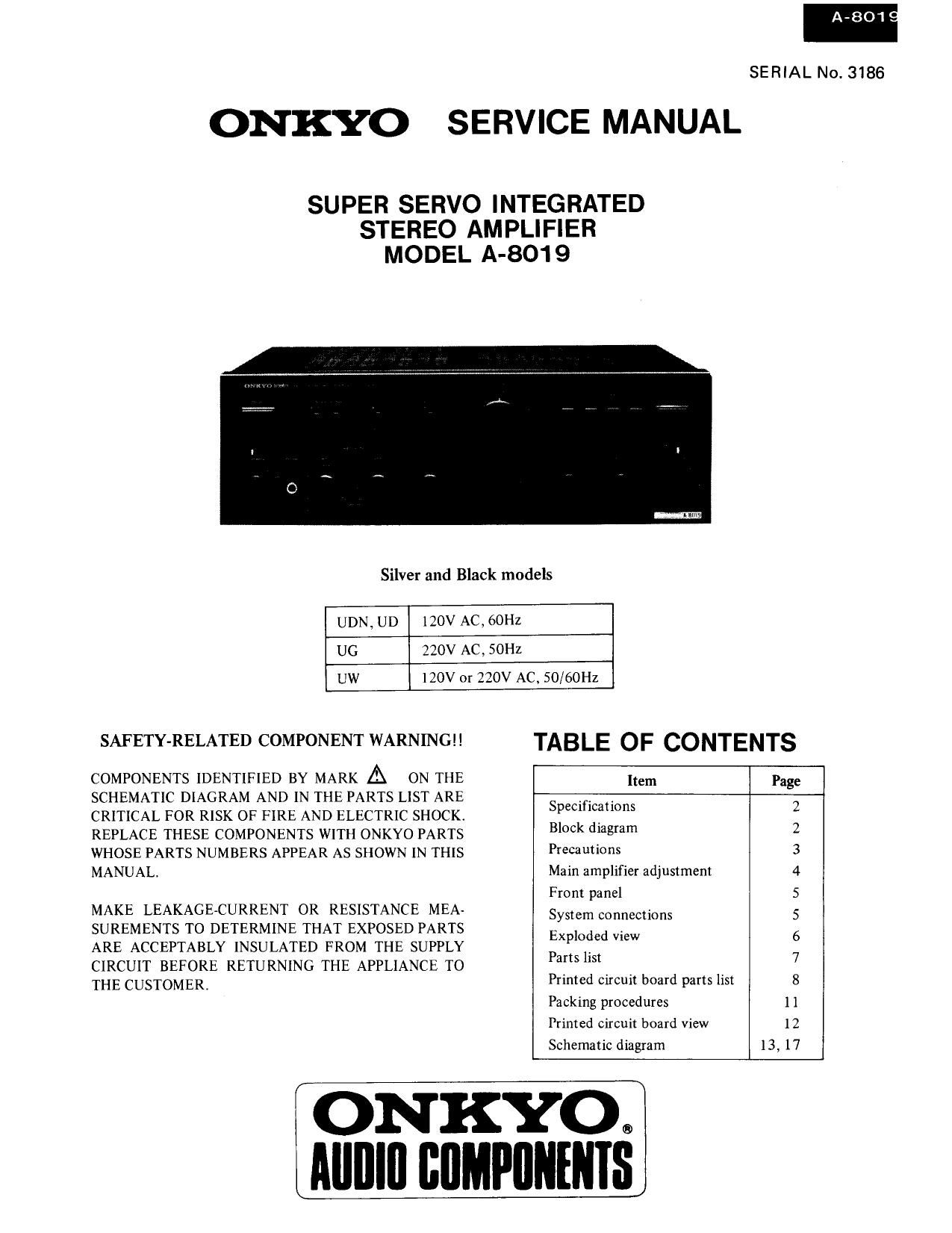

ONKYO SERVICE MANUAL
SUPER SERVO INTEGRATED
STEREO AMPLIFIER
MODEL A-8019
Silver and Black models
UDN, UD 120V AC, 60Hz
UG 220v AC, 50Hz
uw 120v or 220V AC, 50/60Hz
SAFETY-RELATED COMPONENT WARNINGI! TABLE OF CONTENTS
COMPONENTS IDENTIFIED BY MARK A ON THE Item page
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE specificamns 2
CRITICAL FOR RISK OE FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO PARTS 31 diagram 2
WHOSE PARTS NUMBERS APPEAR AS SHOWN IN THIS Precautiom 3
MANUAL. Main amplifier adjustment 4
Front panel 5
MAKE LEAKAGECURRENT OR RESISTANCE MEA- system commons 5
SUREMENTS To DETERMINE THAT EXPOSED PARTS Exploded view 6
ARE ACCEPTABLY INSULATED FROM THE SUPPLY _
CIRCUIT BEFORE RETURNING THE APPLIANCE To Pam 115 7
THE CUSTOMER. Printed Circuit board parts list 8
Packing procedures 11
Printed circuit board View 12
Schematic diagram 13, 17
