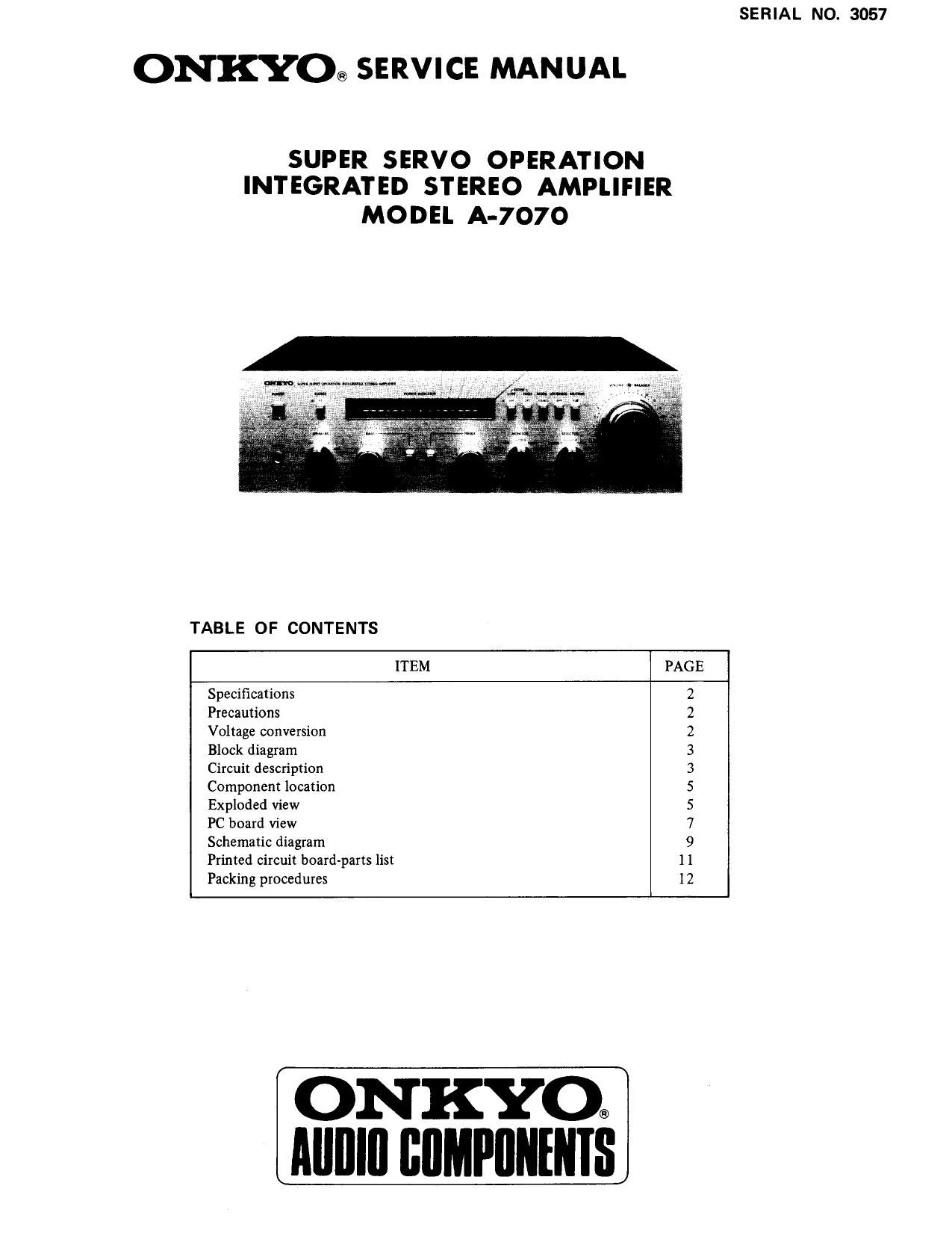

Page 1
ONKYO® SERVICE MANUAL
SUPER SERVO OPERATION
INTEGRATED STEREO AMPLIFIER
MODEL A-707O
TABLE OF CONTENTS
ITEM PAGE
Specifications 2
Precautions 2
Voltage conversion 2
Block diagram 3
Circuit description 3
Component location 5
Exploded View 5
PC board View 7
Schematic diagram 9
Printed circuit board-parts list 11
Packing procedures 12
ON KYO®
Illlllfl IIIIMPIIIIINIS
SERIAL NO. 3057
