Onkyo A 45 Service Manual
This is the 11 pages manual for Onkyo A 45 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Page: 1 / 11
Extracted text from Onkyo A 45 Service Manual (Ocr-read)
Page 1

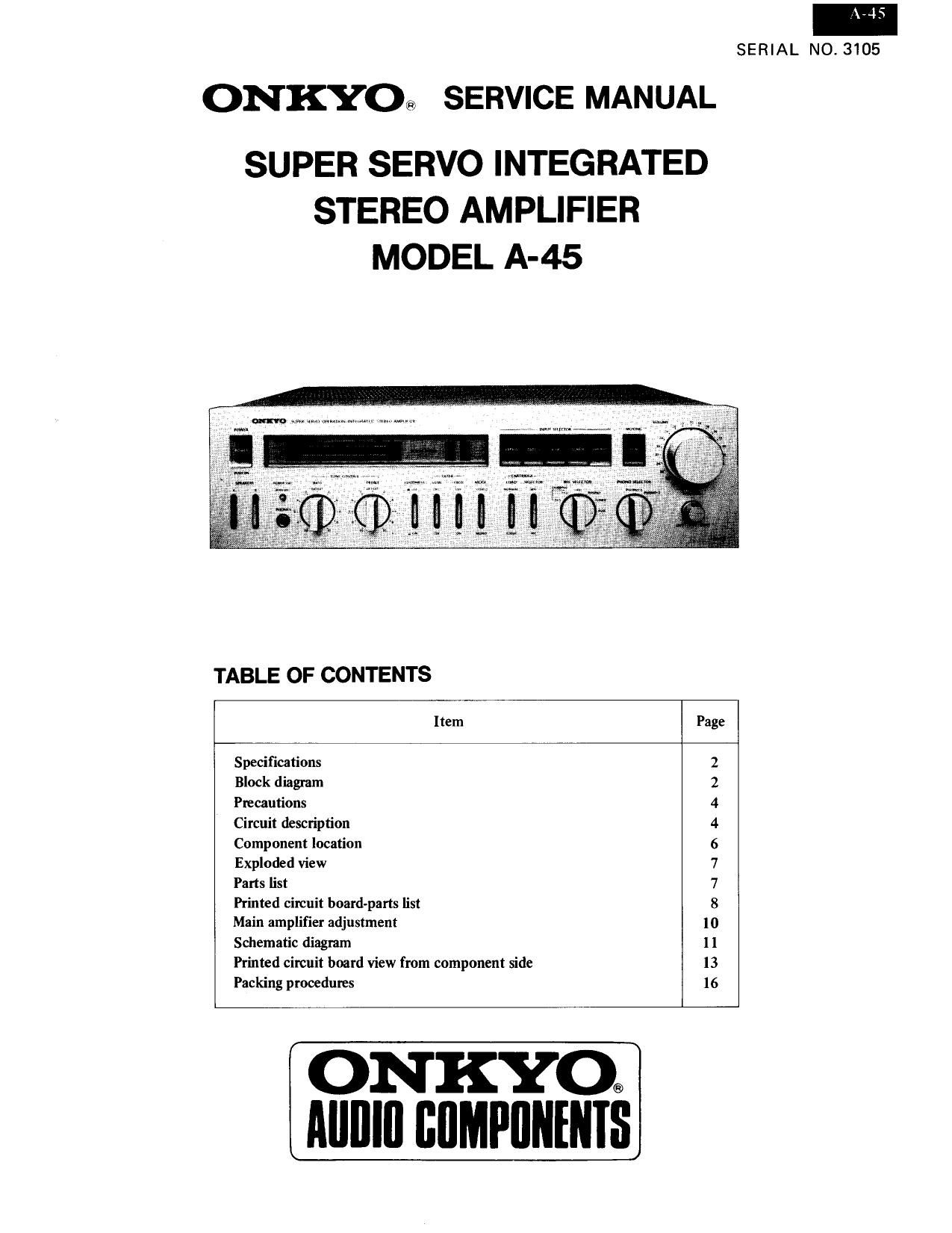

~45
SERIAL NO. 3105
ONKYO< SERVICE MANUAL
SUPER SERVO INTEGRATED
STEREO AMPLIFIER
MODEL A-45
TABLE OF CONTENTS
Item Page
Specifications 2
Block diagram 2
Precautions 4
Circuit description 4
Component location 6
Exploded view 7
Parts list 7
Printed circuit board-parts list 8
Main amplifier adjustment 10
Schematic diagram 11
Printed circuit board view from component side 13
Packing procedures 16
ONKYO®
Alllllll BflMPlINENlS
