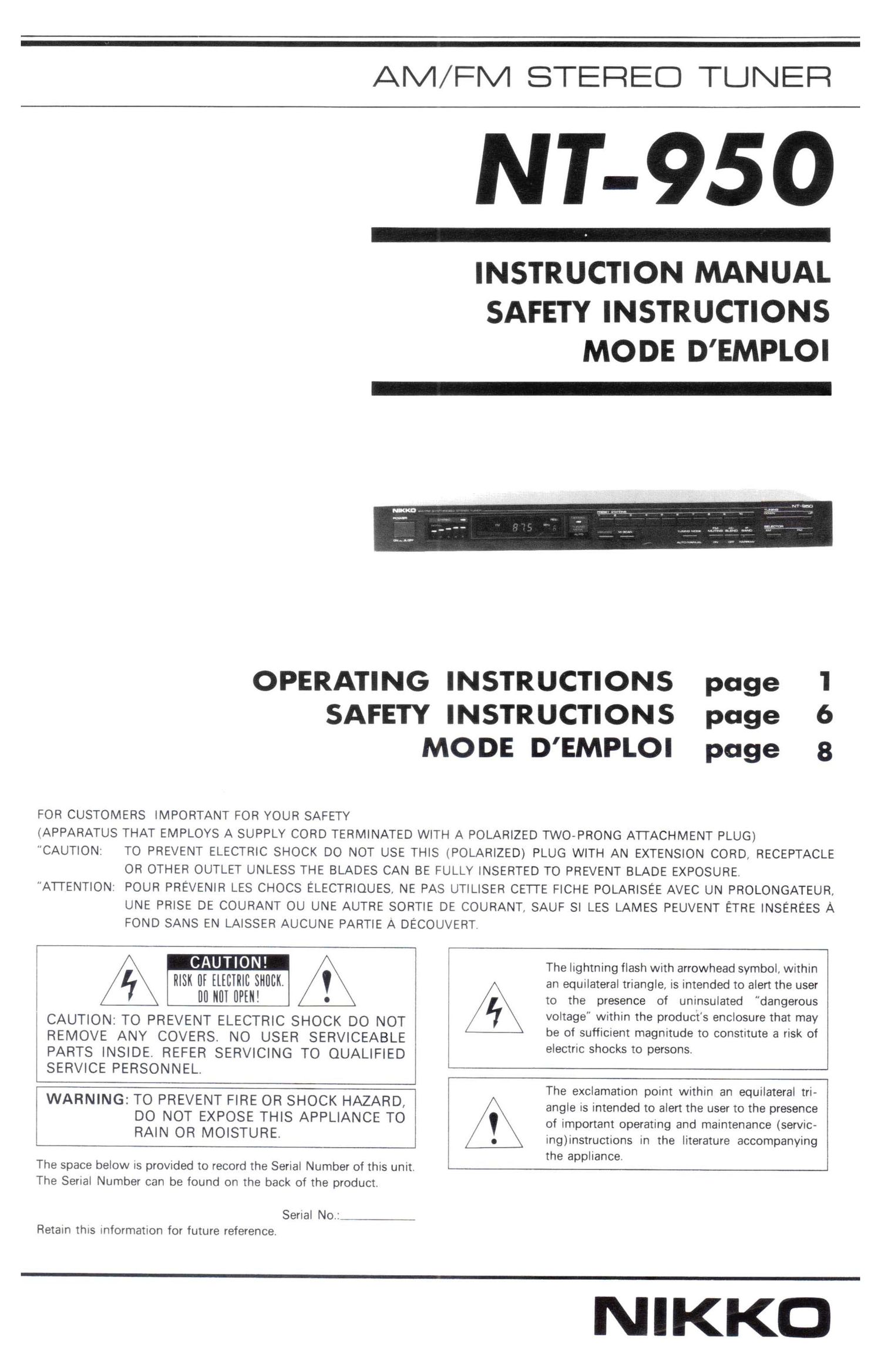

AIVI/FIVI STEREO TUNER

NT-950

INSTRUCTION MANUAL
SAFETY INSTRUCTIONS
MODE DEMPLOI

JIM my :-
-.mn «I. 17... w

OPERATING INSTRUCTIONS page 'I
SAFETY INSTRUCTIONS page 6
MODE DEMPLOI page 8

FOR CUSTOMERS IMPORTANT FOR YOUR SAFETY

(APPARATUS THAT EMPLOYS A SUPPLY CORD TERMINATED WITH A POLARIZED TWO-PRONG ATTACHMENT PLUG)

CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE
OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

"ATTENTION: POUR PREVENIR LES CHOCS ELECTRIOUES, NE PAS UTILISER CETTE FICHE POLARISEE AVEC UN PROLONGATEUR,

UNE PRISE DE COURANT OU UNE AUTRE SORTIE DE COURANT, SAUF SI LES LAMES PEUVENT ETRE INSEREES A
FOND SANS EN LAISSER AUCUNE PARTIE A DECOUVERT.

i

The lIghtning flash with arrowhead symbol, within

6 RISK III [IECIRIC SHOCK. ' I an equilateral triangle, is intended to alert the user

[III III OPEN! 0 I to the presence of uninsulated "dangerous

CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT voltage" within the product's enclosure that may

I REMOVE ANY COVERS. NO USER SERVICEABLE be of sufficient magnitude to constitute a risk of
PARTS INSIDE. REFER SERVICING TO QUALIFIED elem: ShOCkS 0 pe'sons

SERVICE PERSONNEL.

The exclamation point within an equilateral tri-
angle is intended to alert the user to the presence
of important operating and maintenance (servic-
ing)instructions in the literature accompanying
the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD,

DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.

The space below Is provided to record the Serial Number of this unit.
The Serial Number can be found on the back of the product.

Serial No:
Retain this Information for future reference.

NIKKD

Page 2

ENGLISH

INTRODUCTION

Thank you for selecting the NIKKO AM/FM Stereo Tuner NT-950. Every NIKKO product passes a series of strict quality control
tests before shipment to ensure total reliability. In order to get the most out of your AM/FM Stereo Tuner, please read this
Instruction Manual carefully and follow its instructions. Should you have any doubts or questions, please contact your nearest

NIKKO dealer.

PRECAUTIONS

Installation

In order to derive maximum performance from the unit, please pay

close attention to the following points:

0 Do not place the unit in a location exposed to direct sunlight and
keep away from heat (stoves, etc.).
Make sure the unit is well ventilated and is not exposed to moisture
or dampness.

a Do not place the unit in a location with excessive dust.

0 Make sure the unit is placed on a flat, stable surface, free from
vibrations.

0 Do not expose the unit to flammable objects and avoid the use
of spray cans (hair sprays, etc.) near the unit.

0 Be sure to install the unit in a level position. Do not use the unit
in a vertical or slanted position as overheating of internal parts
may result, badly damaging the unit.

This unit is designed so that heat created during operation is dissi-
pated through the ventilation openings in the top and bottom panels.
Maintain free and unrestricted ventilation, and do not remove the feet
of the unit. Avoid blocking the ventilation openings (be careful of
curtains, draperies, rugs, etc. blocking the openings). When installing
in a rack or shelf, be sure the unit is properly ventilated. Allow at
least 2 inches of space on all sides.

Warning: To prevent fire or shock hazard, do not expose this
appliance to rain or moisture.

SPECIFICATIONS

FM Tuner Section

Usable Sensitivity ........................................................ 11.2 dBf/2 uV
de Ouieting Sensitivity
STEREO ............................... WIDE: 39.2 dBf NARROW: 39.2 dBf
MONO ................................. WIDE: 22.2 dBf NARROW: 17.2 dBf
Signal-to-Noise Ratio
STEREO ................................................................................ 70 dB
MONO ................................................................................... 75 dB
Total Harmonic Distortion
STEREO ...................................... WIDE: 0.08% NARROW: 0.2%
MONO ......................................... WlDE: 0.05% NARROW: 0.1%
Stereo Separation
1 kHz ......................................... WIDE: 50 dB NARROW: 45 dB
100 Hz 1010 kHz ..................... WIDE: 40 dB NARROW: 35 dB
Frequency Response
(50 Hz to15 kHz) ............................................ +1.0 dB, -2.0dB
Capture Ratio ................................ WIDE: 1.5 dB NARROW: 2.0 dB
Alternate Channel Selectivity ...... 50 dB 80 dB
Spurious Response Ratio ............. 75 dB 75 dB
IF Rejection Ratio ......................... 90 dB 90 dB
AM Suppression Ratio ................. 60 dB 60 dB
Sub-Carrier Suppression .............. 67 dB 67 dB
Muting Threshold Level .. WIDE: 35.2 dBf NARROW: 35.2 dBf
Antenna Impedance ............................... 75 ohms and 300 ohms
Output Level ...................................................................... 600 mV

AM Tuner Section

Usable Sensitivity ............................................................... 350 jiV/m
Selectivity ................................................................................... 40 dB
Signal-to-Noise Ratio ............................................................... 50 dB
Image Rejection ......................................................................... 40 dB
lF Rejection ................................................................................ 40 dB
Total Harmonic Distortion ........................................................... 0.5%
Output Level ............................................................................ 200 mV
General
Power Requirement

U.S.A. & Canada ................................................. AC 120 V, 60 Hz

Europe ................................................................. AC 220 V, 50 Hz
Power Consumption .................................................................... 12W
Dimensions ................................ 440 (W) x 43.5 (H) x 265 (D) mm

(17-1/4" x1-3/4"x10-2/5")

Weight, without package ............................................. 3.2 kg (7 lbs)
Accessories
O-MATCH Antenna ........................................................................... 1
AM Loop Antenna ............................................................................. 1
Pin Plug Cord ..................................................................................... 1

* Specifications are subject to change without notice.

The RM4 Rack Mount Adaptor is included as optional equipment.
