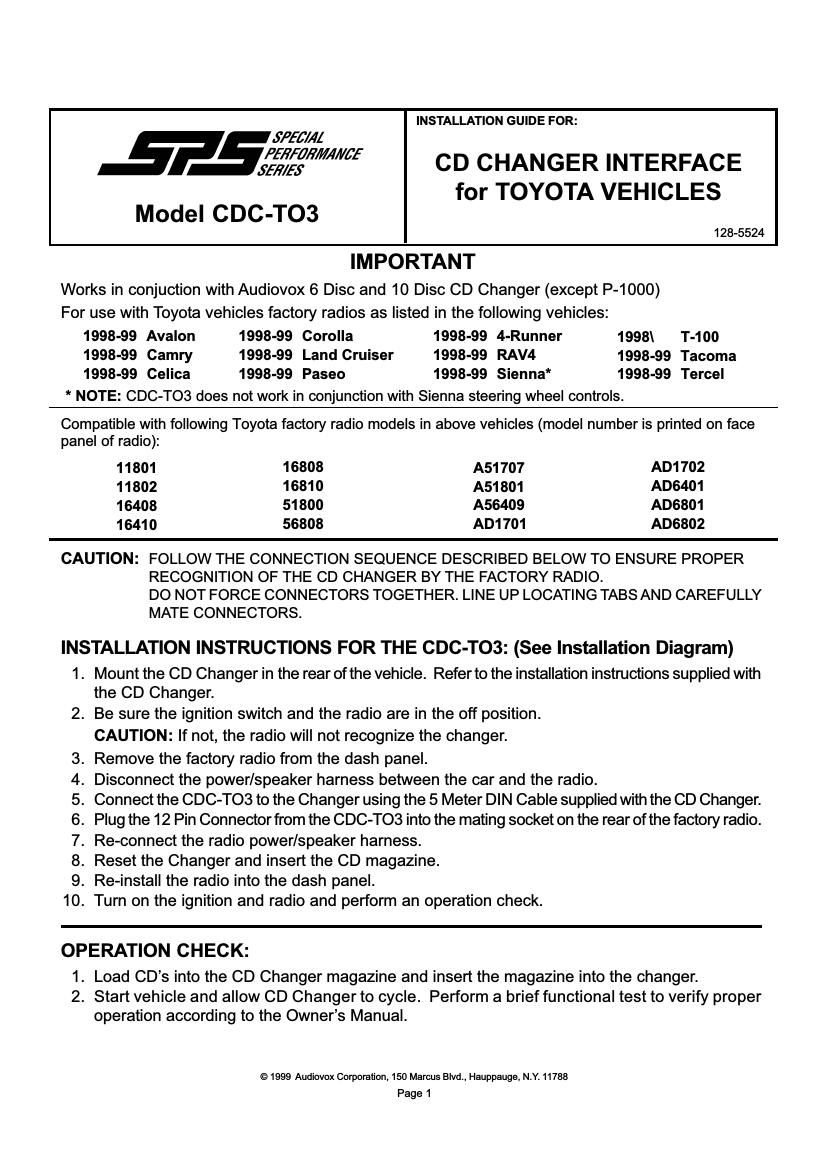

INSTALLATION GUIDE FOR:

gig/1:50.532;
557/5 CD CHANGER INTERFACE

for TOYOTA VEHICLES
Model CDC-T03

128-5524

IMPORTANT

Works in conjuction with Audiovox 6 Disc and 10 Disc CD Changer (except P-1000)
For use with Toyota vehicles factory radios as listed in the following vehicles:

1998-99 Avalon 1998-99 Corolla 1998-99 4-Runner 1998\ T-100
1998-99 Camry 1998-99 Land Cruiser 1998-99 RAV4 1998-99 Tacoma
1998-99 Celica 1998-99 Paseo 1998-99 Sienna* 1998-99 Tercel

* NOTE: CDC-T03 does not work in conjunction with Sienna steering wheel controls.

Compatible with following Toyota factory radio models in above vehicles (model number is printed on face
panel of radio):

11801 16808 A51707 AD1702
11802 16810 A51801 ADG401
16408 51800 A56409 AD6801
16410 56808 AD1701 AD6802

CAUTION: FOLLOW THE CONNECTION SEQUENCE DESCRIBED BELOW TO ENSURE PROPER
RECOGNITION OF THE CD CHANGER BY THE FACTORY RADIO.
DO NOT FORCE CONNECTORS TOGETHER. LINE UP LOCATING TABS AND CAREFULLY
MATE CONNECTORS.

INSTALLATION INSTRUCTIONS FOR THE CDC-T03: (See Installation Diagram)
1. Mount the CD Changer in the rear of the vehicle. Refer to the installation instructions supplied with
the CD Changer.
2. Be sure the ignition switch and the radio are in the off position.
CAUTION: If not, the radio will not recognize the changer.
Remove the factory radio from the dash panel.
Disconnect the power/speaker harness between the car and the radio.
Connect the CDC-T03 to the Changer using the 5 Meter DIN Cable supplied with the CD Changer.
Plug the 12 Pin Connector from the CDC-T03 into the mating socket on the rear of the factory radio.
Re-connect the radio power/speaker harness.
Reset the Changer and insert the CD magazine.
Re-install the radio into the dash panel.
Turn on the ignition and radio and perform an operation check.

.Of-DPJFPWFP

_\

OPERATION CHECK:

1. Load CDS into the CD Changer magazine and insert the magazine into the changer.

2. Start vehicle and allow CD Changer to cycle. Perform a brief functional test to verify proper
operation according to the Owners Manual.
