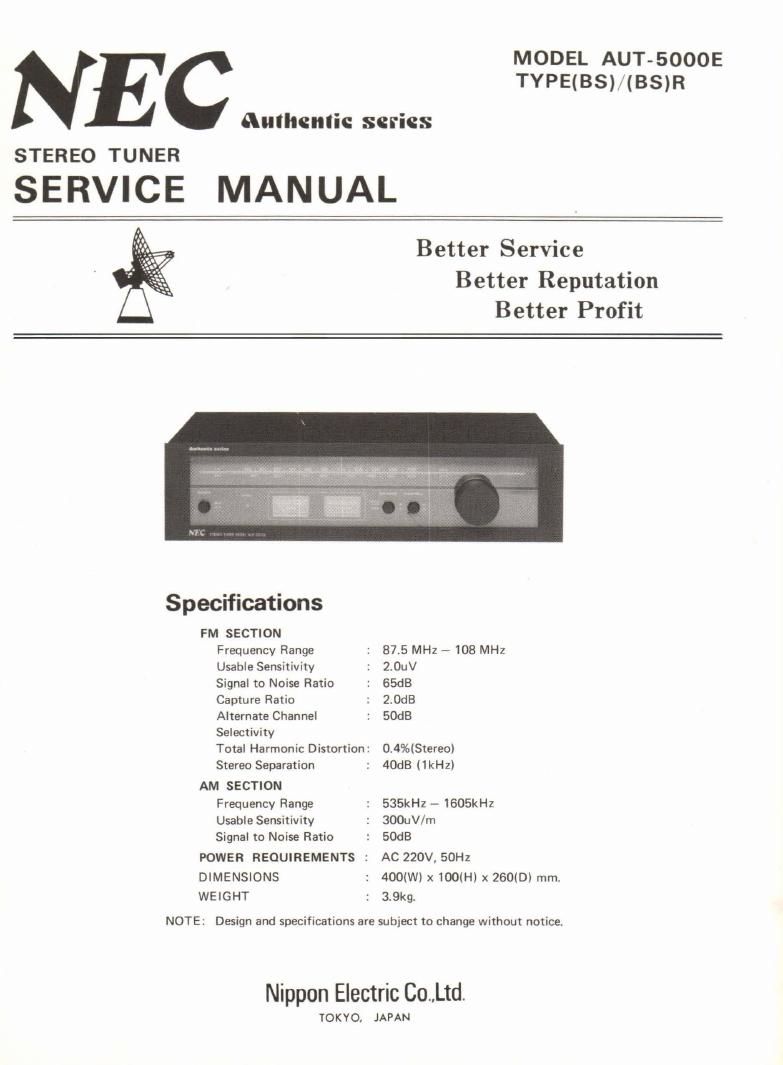

Page 1
MODEL AUT-5000E
TYPE(BS)/(BS)R
Authentic series
STEREO TUNER
SERVICE MANUAL
Better Service
Better Reputation
Better Profit
Specrflcatlons
FM SECTION
Frequency Range : 87.5 MHZ - 108 MHz
Usable Sensitivity : 2.0uV
Signal to Noise Ratio : 65dB
Capture Ratio : 2.0dB
Alternate Channel : 50dB
Selectivity
Total Harmonic Distortion: 0.4%(Stereol
Stereo Separation : 40dB (IkHz)
AM SECTION
Frequency Range : 535kHz - 1605kHz
Usable Sensitivity : 300uV/m
Signal to Noise Ratio : 50dB
POWER REQUIREMENTS 2 AC 220V, 50Hz
DIMENSIONS : 400(W)x100(H)x 260(D) mm.
WEIGHT : 3.9kg.
NOTE: Design and specifications are subject to change without notice.
Nippon Electric Co.,Ltd.
TOKYO. JAPAN
Page 2
Disassembly Instructions
A
g
a 6
B 6
cr .
Top View ' Bonom View
Figure 1.
Removing cabinet top and bottom OOVEI. See Figuve l.
1. Reveme 4 cabinet screws (A) from left and right sides and lift off cabinet.
2. Remove six bottom Dover screws (C) and lift off bottom cover.
Removing front panel. See Figure 1.
1. Remove 5 screws (B) from chassis and lift off front panel.
Removing Antenna Cover
Ram Punei
f To up word
Rear Punei (Buck side)
1. Remove two Ant. cover mounting screws (D)
2. Then push up ward and remove it.
