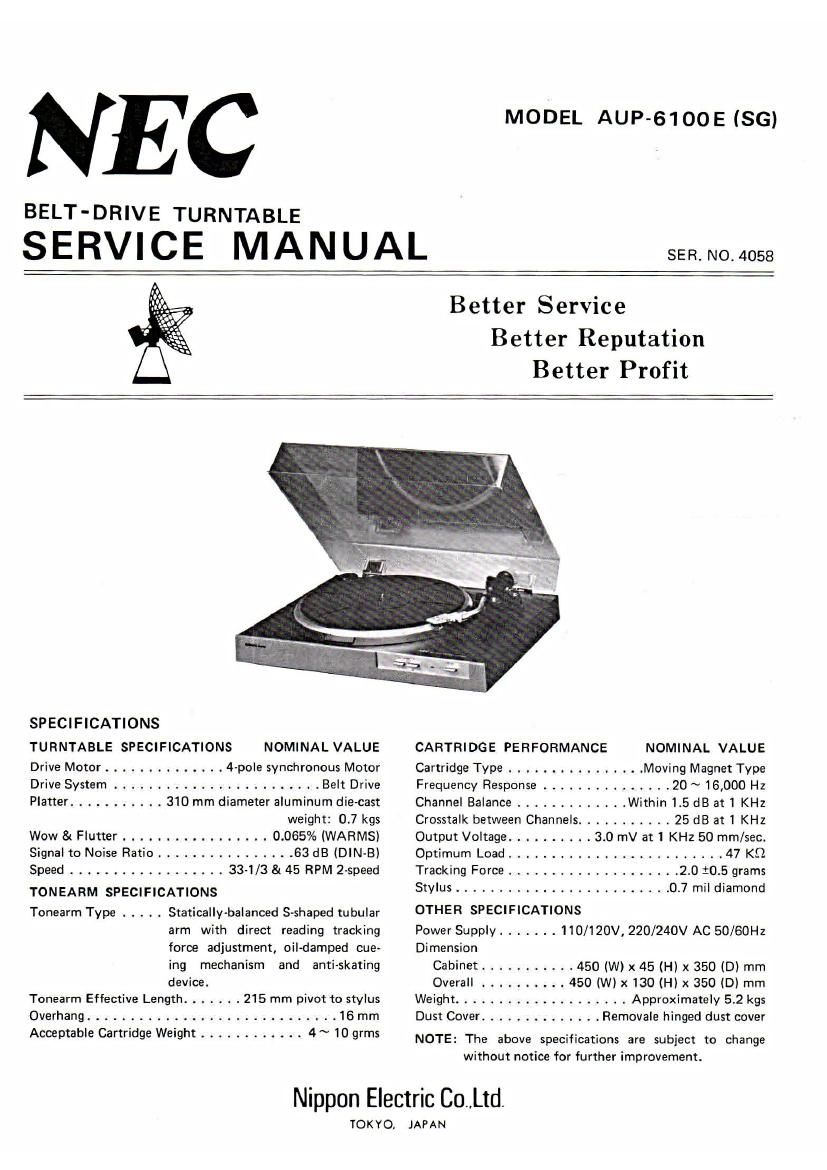

Page 1
BELT- DRIVE TURNTABLE
SERVICE MANUAL
MODEL AUP-6 1 00 E (86)
SER. NO. 4058
Better Service
Better Reputation
Better Profit
SPECIFICATIONS
TURNTABLE SPECIFICATIONS NOMINAL VALUE
Drive Motor .............. 4-pole synchronous Motor
Drive System ........................ Belt Drive
Platter ........... 310 mm diameter aluminum die-cast
weight: 0.7 kgs
Wow & Flutter ................. 0.065% (WARMS)
Signal to Noise Ratio ................ 63 dB (DIN-B)
Speed .................. 33-1/3 81 45 RPM 2-speed
TONEARM SPECIFICATIONS
Tonearm Type ..... Statically-balanced S-shaped tubular
arm with direct reading tracking
force adjustment, oil-damped cue-
ing mechanism and anti
Tonearm Effective Length ....... 215 mm pivot to stylus
Overhang ............................. 16 mm
Acceptable Cartridge Weight ............ 4 ~ 10 grms
CARTRIDGE PERFORMANCE NOMINAL VALUE
Cartridge Type ................ Moving Magnet Type
Frequency Response ............... 20 ~ 16,000 Hz
Channel Balance ............. Within 1.5 dB at 1 KHz
Crosstalk between Channels ........... 25 dB at 1 KHz
Output Voltage .......... 3.0 mV at 1 KHz 50 mm/sec.
Optimum Load ......................... 47 K9
Tracking Force .................... 2.0 $0.5 grams
Stylus ......................... 07 mil diamond
OTHER SPECIFICATIONS
Power Supply ....... 110/120V, 220/240V AC 50/60H2
Dimension
Cabinet ........... 450 (W) x 45 (H) x 350 (D) mm
Overall .......... 450 (W) x 130 (H) x 350 (D) mm
Weight .................... Approximately 5.2 kgs
Dust Cover .............. Removale hinged dust cover
NOTE: The above specifications are subject to change
without notice for further improvement.
Nippon Electric Co.,Ltd.
TOKYO.
JAPAN
