Nec aua 7300e

This is the 22 pages manual for nec aua 7300e.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

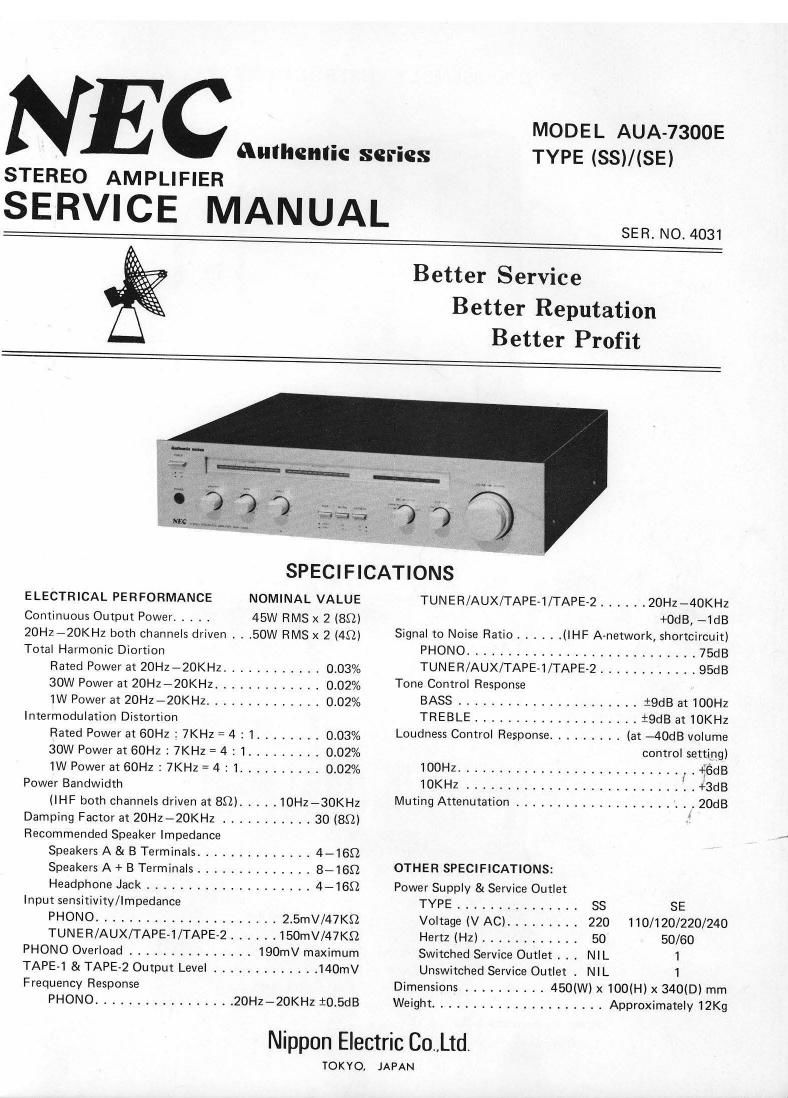

Page: 1 / 22
nec aua 7300e

Extracted text from nec aua 7300e (Ocr-read)

Page 2

D ISASSEMB LY INSTRUCTIONS

(A)


Bottom View

Power Supply
PWB Ass'y
Main PWB Assy
(87353101)
l
Top View

Speaker SW. PWB Ass'y Power Transformer
(87375201) (45019090)

Fig. 1
Removing cabinet top and bottom cover. See Fig. 1 .

1. Remove four cabinet screws (A) from left and right sides and lift off cabinet.
2. Remove three bottom cover screws (B) and lift off bottom cover.

Removing front panel. See Fig. 1.
1. Remove four screws (C) from chassis and lift off front panel.
