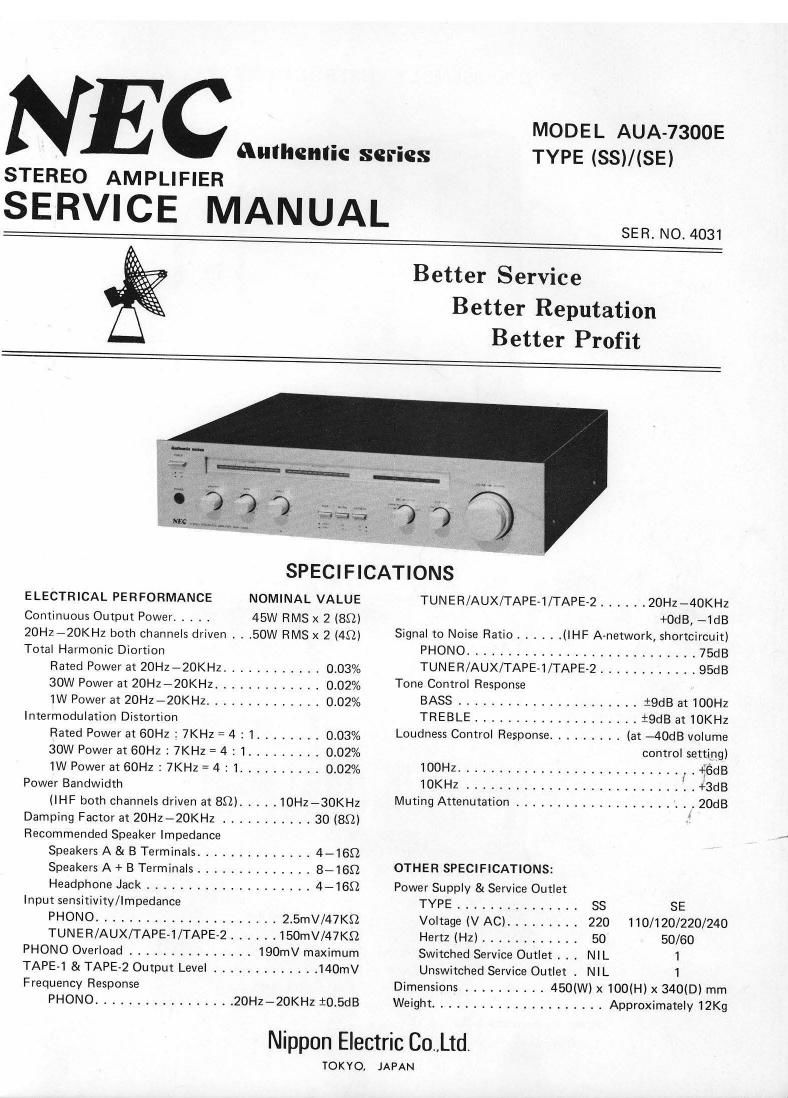

Page: 1 / 22
Nec AUA 7300E Service Manual

Extracted text from Nec AUA 7300E Service Manual (Ocr-read)


Page 2

D ISASSEMB LY INSTRUCTIONS

(A)


Bottom View

Power Supply
PWB Ass'y
Main PWB Assy
(87353101)
l
Top View

Speaker SW. PWB Ass'y Power Transformer
(87375201) (45019090)

Fig. 1
Removing cabinet top and bottom cover. See Fig. 1 .

1. Remove four cabinet screws (A) from left and right sides and lift off cabinet.
2. Remove three bottom cover screws (B) and lift off bottom cover.

Removing front panel. See Fig. 1.
1. Remove four screws (C) from chassis and lift off front panel.
