Nakamichi ZX 7 Owners Manual

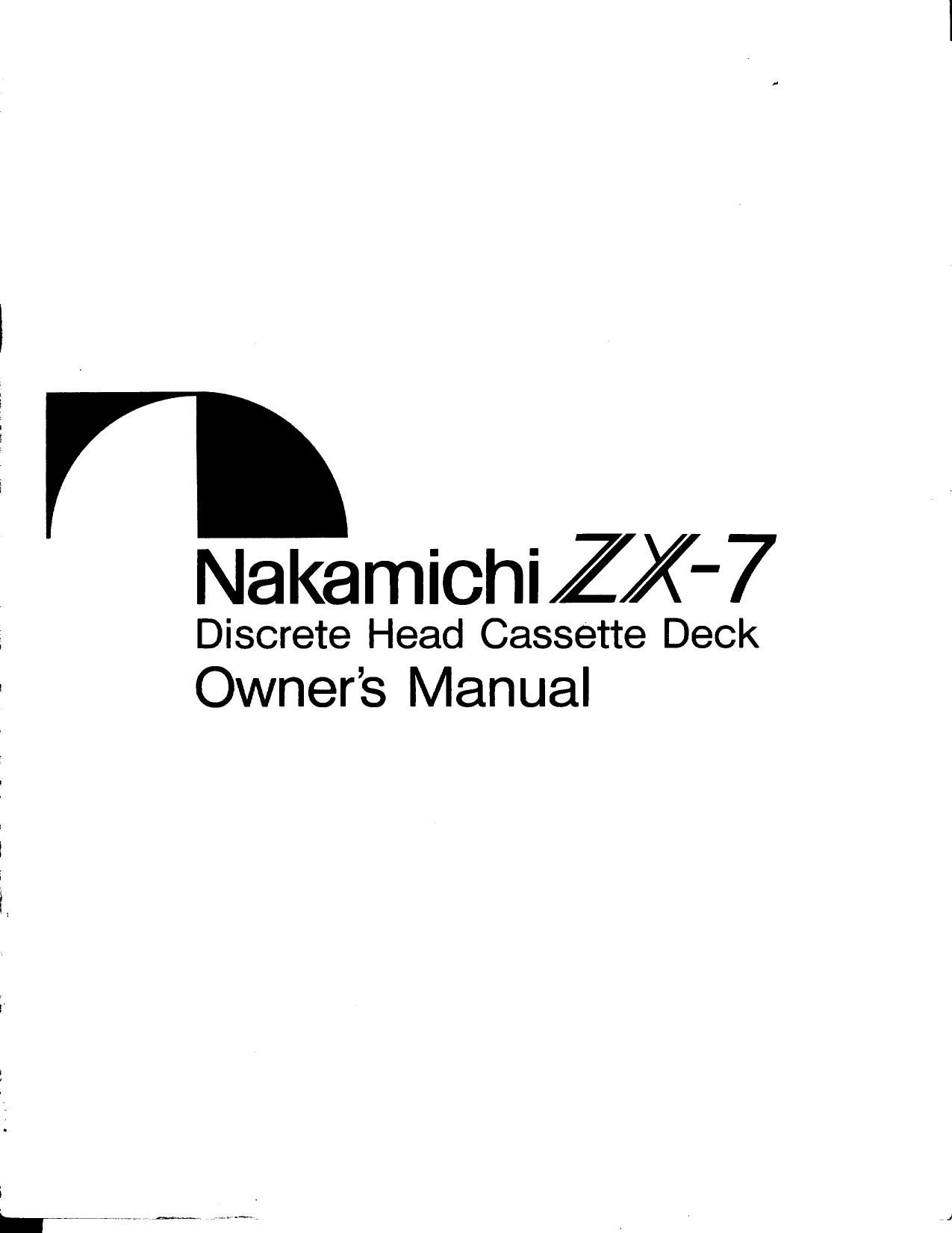

Page 1

NakamichiZX-7

Discrete Head Cassette Deck
Owners Manual

Page 2

EFIU Tl [I N
SHIJEK. DI] III'ITIIPEII!
CAUTION

TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). N0
USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL

The lightning flash with arrowhead
symbol, withln an equilateral triangle. is
intended to alert the user ol the presence
of uninsulaled dangerous voltage"
within the products enclosure; that may
be 01 sufficient magnitude to constitute a
risk of electric shock to persons.

The exclamation point within an
A equilateral triangle is intended to alert
the user at the presence oi important
operating and maintenance (servicing)
instructions, in the literature
accompanying the appliance.

WARNING

TO PREVENT FIRE 0R SHOCK
HAZARD, DO NOT EXPOSE
THIS APPLIANCE TO RAIN 0R
MOISTURE

Please record the Model Number and Serial
Number in the space provided below and
retain these numbers.

Model Number and Serial Number are located
on the rear panel 01 the unit.

Model Number: Nakamichi ZX-7

Serial Number:

CONTENTS
Salety Instructions. ..
On Cassette Tapes ..
Precautions ............
Controls and Features.
Connections ......
Special Features
Playback ............
Before Recording . . H
Recording ...........
Tips on Setting Record Levels.
Dolby Noise Reduction System .
Maintenance ......
Troubleshooting.
Specifications rrrrr

Page 13

6. Tlmer Recording or Playback

This deck incorporates a sell-start feature
which enables you to make unattended
recordings or start piaybeck at e pre-selected
time with the use of a timer.

-Operation -

1. Make connections as shown in the chart.

2. Insert the tape tor recording or playback
and turn on the power to all components.

3. For timer recording, set the recording level
to suit the expected signal. For timer
playback. set the output control to the
desired level. Check it all components are
set up properly.

4. For timer recording, set the tape start
memory/timer switch (30) to Rec", for
timer playback, set it to "Play.

5. Adjust the timer to the desired starting
time.

6. At the pre-selected time, the timer will
supply power to the components and the
ZX-7 will start recording or playing.

Note:

- When the timer recording or playback
feature is not desired, be sure to set the
tape start memory/timer switch (30) to
Oti or "Memory".

M... IX-7 _...._..

M 51555 .5'

to AC outlet

El Dunn

® Dunn

OO
000

timer

o cocoa o

|_l

|-l
amplifier or receiver

1O
