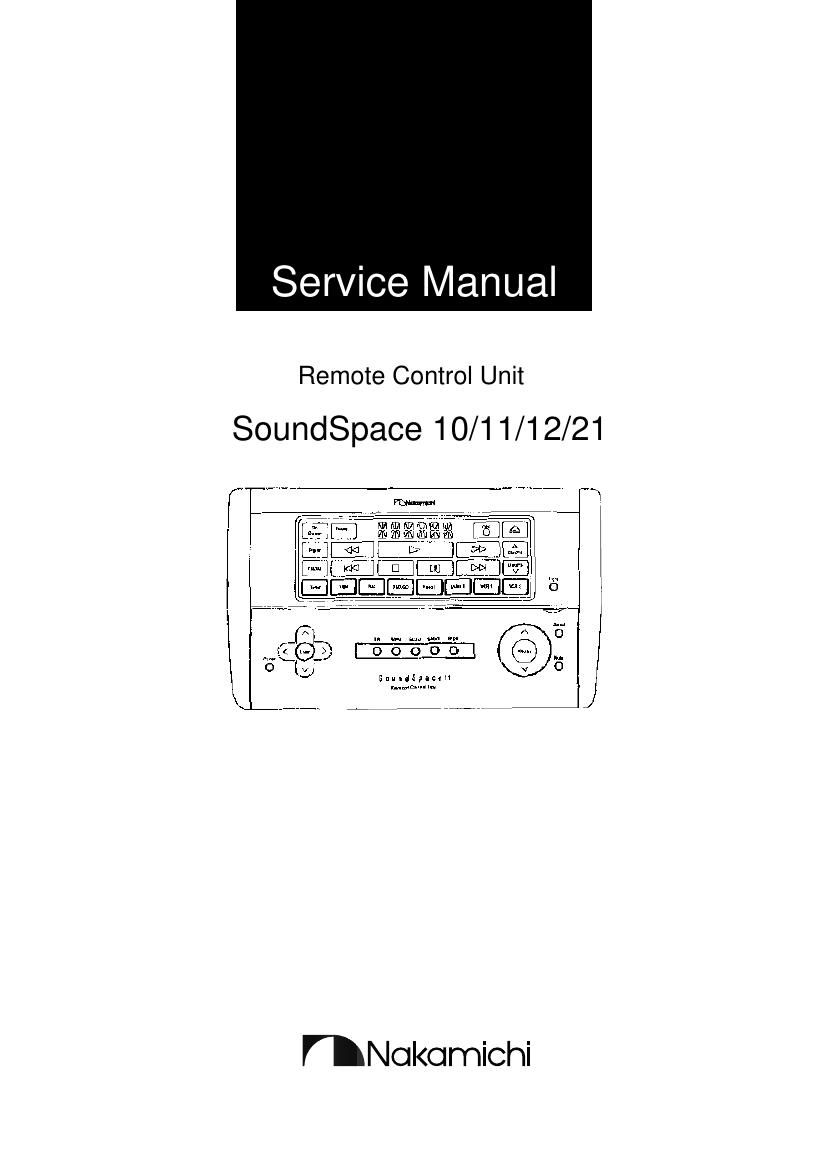

Nakamichi soundspace 10 11 12 21 service manual
This is the 13 pages manual for nakamichi soundspace 10 11 12 21 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from nakamichi soundspace 10 11 12 21 service manual (Ocr-read)
Page 1
Remote Control Unit (SS-10/11/12/21) 2 CONTENTS 1. REMOVAL PROCEDURES ................................................................................................................................ 2 2. MECHANISM ASS'Y AND PARTS LIST ........................................................................................................... 3 3. MOUNTING DIAGRAMS AND PARTS LIST ..................................................................................................... 5 3.1. Main P.C.B. Ass'y/Sensor P.C.B. Ass'y .................................................................................... ............. 5 4. IC BLOCK DIAGRAMS ...................................................................................................................................... 8 5. BLOCK DIAGRAM ............................................................................................................................................. 10 6. WIRING DIAGRAM ............................................................................................................................................ 11 7. SCHEMATIC DIAGRAM .................................................................................................................................... 12 1. REMOVAL PROCEDURES Fig. 1.1 Refer to Figs. 1.1 to 1.3. (1) Open F01 (Battery Cover). (2) Remove screws F02 (4 pcs.), F03 (1 pce.) to detach F04 (Bottom Cabinet Ass'y) and F05 (Front Panel Ass'y). Fig. 1.2 (3) Remove screws F06 (4 pcs.) to detach F07 (Main P.C.B. Ass'y) from F05 (Front Panel Ass'y). (4) Remove screws F08 (2 pcs.) to detach F09 (Sensor P.C.B. Ass'y) from F04 (Bottom Cabinet Ass'y). Fig. 1.3
Page 2
Remote Control Unit (SS-10/11/12/21) 2. MECHANISM ASS'Y AND PARTS LIST 2.1. Synthesis3 Fig. 2
