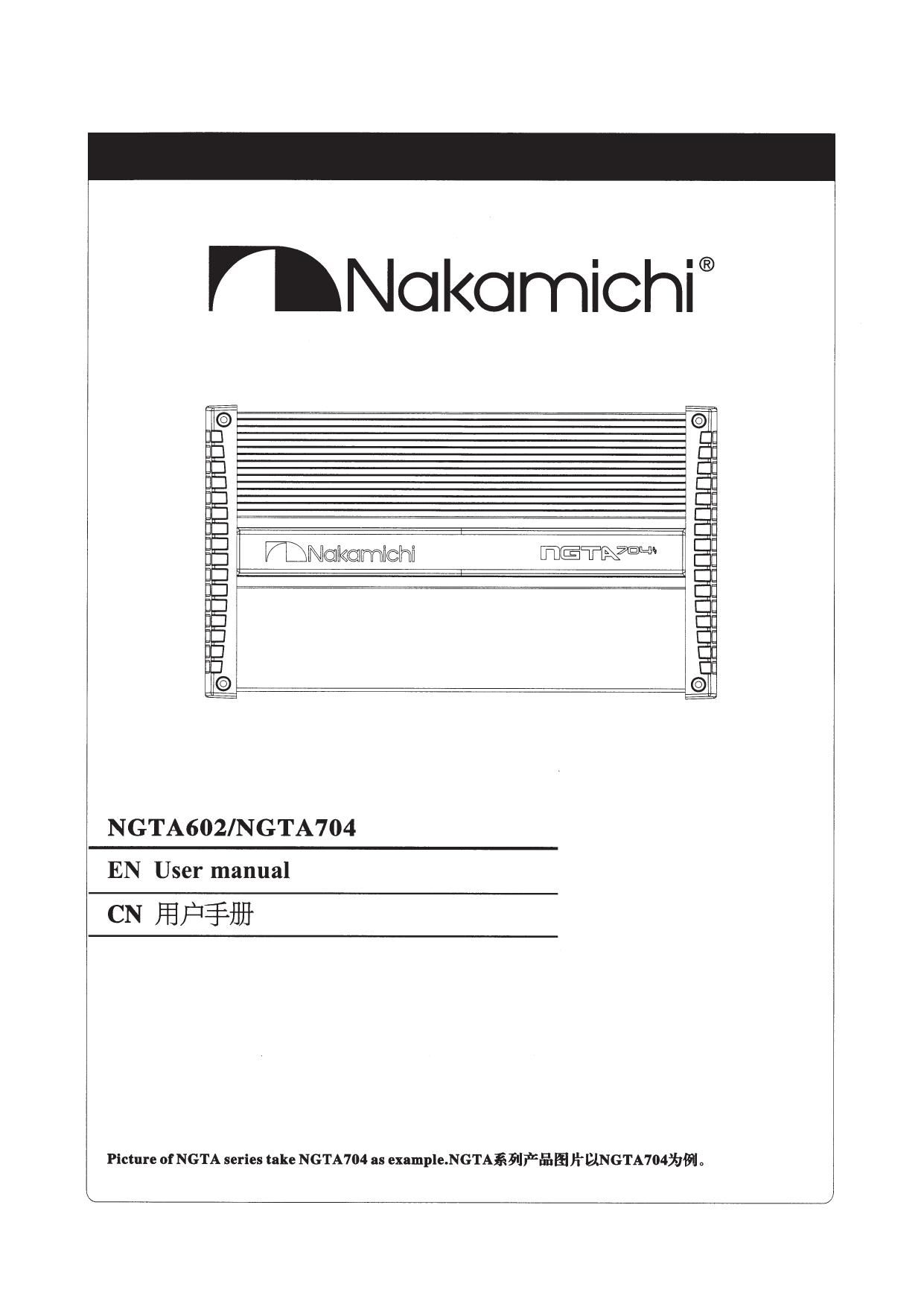

Nakamichi NGTA 602 Owners Manual

Page 2

Nokomichi

C o ntents
1 .Important 2
Safety 2
Notice 2
2.System Equipment 3
Accessory List 3
Feature 3
3.1nstallation 4
Installation Warnings and Tips 4
Mounting Location and Size 5
Power Connection 5
4.C0ntr0l Function (NGTA602) 6
Rear Panel 6
Specification 8
System Examples 9
5-C0ntrol Function (NGTA704) 10
Rear Panel 10
Specification 12
System Examples 13
6.Troubleshooting 15

1 cm

Page 5

3.1nstallation

Warning: Play music too loud in an automobile can hinder your ability to hear the traffic
and permanently damage your hearing.We recommend listening at low or moderate levels

while driving. Nakamichi accepts no liability for hearing loss, bodily injury or property
damage resulting from the use or misuse ofthis product.

Important: To get the best performance from your Nakamichi NGTA Series amplifiers,
we strongly recommend that installation be entrusted to a qualified professional.
Although the instruction explains how to install this amplifiers in a general sense, they
do not show specific installation methods that may be required for your particular vehi-
cle. Ifyou do not have the necessary tools or experience, do not attempt the installation
yourself. Instead, please ask your authorized Nakamichi car audio dealer about profe-
ssional installation.

Installation Warnings and Tips
§ Always wear protective eyewear when using tools.

0 Turn off all audio systems and other electrical devices before you start. Disconnect
the (+) negative lead from your vehicle's battery.

9 Make sure that both sides ofthe planned mounting surface are clean before drilling or
installing any screws.Remember that the screws can pass through the barrier .

O At the installation sites, locate and make a lot of all fuel lines, hydraulic brake
lines, vacuum lines, and electrical wiring. Use extreme caution when cutting or
drilling in and around these areas.

9 Before drilling of cutting holes, use a utility knife to remove unwanted fabric or vinyl to
keep material from snagging in drill bit.

9 When routing cables, keep input-signal cables away from power cables and speaker wires.

9 When making connections, make certain they are secure and properly insulated.
