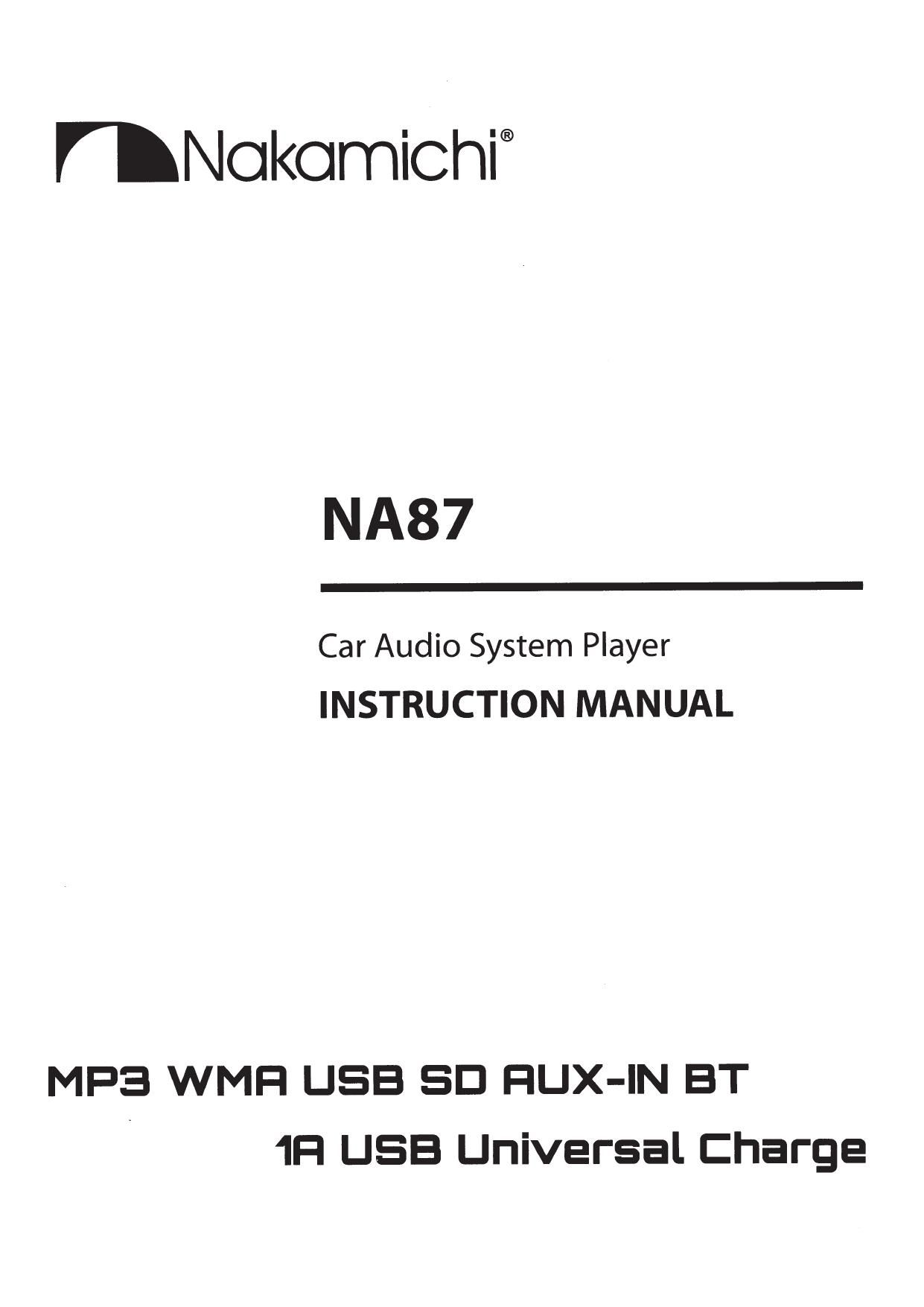

Nakamichi NA 87 Owners Manual

Page 2

WARNING

Stop the car before operating the unit.

Important to know...

it To prevent a short circuit, never put or leave any metallic objects
(such ascoinsormetal tools) insidethe unit.

* Caution? Adjust the volume so that you can hear sounds
outside the car. Driving with the volume too high may cause an
accident.

* Condensation: When the car is air-conditioned, moisture may
collecton the laser |ens.This may cause disc read errors. In this case,
removethe disc and wait forthe moisture to evaporate.

* The illustrations in this manual are examples used to explain more
clearly how the controls are used. Therefore, what appears on the
illustrations may differ from what appears on the actual
equipment.

* If you experience problems during installation, consult your
Nakamichidealer.

* When you purchase external components, check with your
Nakamichidealertomakesurethattheyworkwithyourmodeland
inyourarea.

Maintenance
Cleaning the unit: Wipe off the dirt on the panel with a dry silicon or
soft cloth. Failure to observe this precaution may result in damage to
themonitororunit.

Cleaning the connector: Wipe off dirt on the connector of the unit and
faceplate. Use a cotton swab orcloth.

FCC STATEMENT

* This device complies with Part15 of the FCC Rules. Operation is
subject tothe following two conditions:
(1 ) This device may not cause harmful interference.
(2) This device must acceptany interference received, including
interference that may cause undesired operation.

* Changes ormodifications not expressly approved by the party
responsibleforcompliance could void the user's authority to operate
the equipment.

ZEN

* Note: Thisquipment has been testedand foundto comply with the
limits fora Class Bdigital device, pursuantto Part 15 ofthe FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interferenceto radiocommunications. However, there is no
guaranteethatinterferencewill notoccurina particularinstallation.
if this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference byoneormoreofthefollowing measures:

- Reorientorrelocatethereceivingantenna

' Increasetheseparation betweentheequipmentandreceiver.

- Connecttheequipmentintoanoutletonacircuitdifferentfrom
thattowhich the receiverisconnected.

0 Consultthedealeroran experienced radiotechnicianforhelp.

F(( Radiation Exposure Statement

Thisequipmentcomplies with FCt radiation exposure limits set
forth foran uncontrolled environment.This equipment should be
installed and operated with minimum distance 20cm between the
radiator& your body.

Page 8

Listening to the Radio

I Hold for about 2 seconds to memorize the current station .
I Press briefly to recall memorized station.

1 Press Q BAND repeatedly toa band ( FM1, FMZ, FM},
AM1(MW1) or AM2 (MW2)). Press and hold to activate the
AutoStorefunction.

2 Press I«/»l tosearchforastation.

Adjust [MENU] mode settings
While listening to the radio...
1 Pressand hold JMENU toenterinto thelMENU] mode.

2 Press JMENU repeatedlytoselecttheitemtobeadjusted.
3 Turntheencodervolume knob to selectavalue/option.

Item Selectable Setting
To receive more radio stations or only stations with strong signal, you can adjust the radio sensitivity.
LOC ON/OFF I ON: Search for radio stations with strong signals only.

I OFF: Search for radio stations with strong and weak signals. 7
Press the (D six to access into Auto Store mode, the six strongest stations of the selected band are

STORE '-' saved in preset channel automatically: FMl, FMZ, FM3li-6), AM1, AM2.
AREA Select suitable country region of the radio: USA; LATIN; EUROPE; RUSSIA(0irt); M-EAST; ASIA; JAPAN;
AUST (Australia)

Page 9

Listening to a USB/SD device

Detaches the I Press to select a track/ file. Pressto repeatonetradt,
control panlel I Press and hold for fast forward / backward. pressagain repeatafolder. 53 terminal
flfi _ ' - A

\
Press into search mode Press to pause. Press again to resume playback. Press to move next/previous folder.
Press to start random play, press again to random a folder.
Playing a USB device 1A USB Universal Charge
1 Slide the USB socket covermarket oeo tothe left. 1 Slide the q USB socket to left.
2 Insertthe USB device intothe USB socket. 2 Insert the Smart Phone device into the USB socket.

3 Once the Smart Phone is connected and recognized, the Smart

3 PresstheSRC"button to selectthe USB mode to start playing. Phone beginsto charge.

Playing 3 SD memory card

1 Pressthe Panel 2 (Release) button.
2 Push the leftside ofthe panel rightward
3 Insertthecardintothecardslot.

4 Closethefrontpanel.
5 PresstheSRC"buttontoselecttheSD modetostartplaying.

Listening to the other external components

Auxiliary inputjack\ .

3.5 mm Cable."
(not included)

1 Pressthe SRC to selectAUX-IN mode.
2 Turn on the externalcomponentandstartplaying.

EN9
