a w a 34-36-5355.@5355 a at 9 o e 53 a a a an o a c a c.» n

®®® (OIL/6?

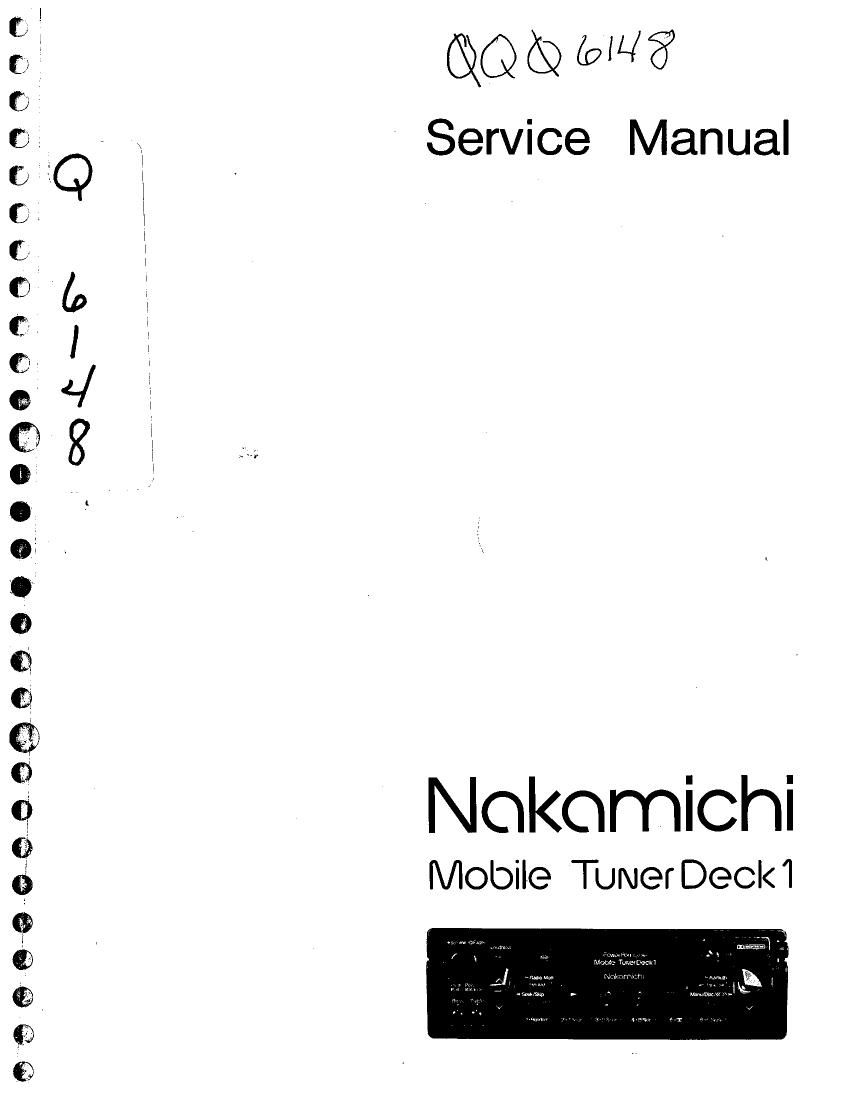

Service Manual

Nokomichi

Mobile Tumer Dec|<1

Page 2

CONTENTS
1. General ....... . ..... . . . .
2. Removal Procedures .............. . . .

2. 1. Top Cover and Bottom Cover .......
2. 2. Handle Assy and Front Panel Assy . . .
2. 3. Mechanism Assy . . . ..... .
2. 4. Cassette Case and Cassette Case Plate Assy . .

2 5 Head Assy and Pressure Roller Arm Assemblies ........................

3. TestTapes............. ...................
4. Mechanical Adjustments ..... . . . . .

4. 1. Tape Speed Adjustment ...............
4. 2. Playback Head Azimuth Alignment .......
Parts Location for Electrical Adjustment ...... . . .
Electrical Adjustments . . . . . . . . ...........
Mechanism Assy and Parts List . .........
7. 1. Synthesis ...........

7. 2. Front Panel Assy (A01)
7. 3. Mechanism Assy (A02) . .
8. Mounting Diagrams and Parts List . . .
8. 1 Main P.C.B. Assy . . . . . .

Q9513!

8. 2. Tone P.C.B. Assy .
8. 3. Volume P.C.B. Assy .
8. 4. Front P.C.B. Assy .
8. 5. Outlet P.C.B. Assy .
8. 6. Joint P.C.B. Assy .
9. IC Block Diagrams ..... . . .

10. Schematic Diagram . . . .

11. Wiring Diagram . . .....

12. BlockDiagram........... . ..

Specifications . .

1. GENERAL

1.1. Product Code
0617 (for USA, CAN, EP,AUS,JPN1)
0618 (for JPNlS)

1.2. Destinations
USA - U.S.A.
CAN - Canada
EP - Europe
AUS - Australia
JPNl - Japan (without pull-out mechanism)
JPNlS - Japan (with pull-out Mechanism)

mqumceehmwwmwwh

1.3. Lithium Battery Caution

Use ONLY replacement parts recommended by the
manufacturer. Replacement must be done only by
qualified service personnel because of risk for explosion.

VARNING . .
Litiumbatteri. Explosionsfara vid felaktig hantenng. Byte
far endast ske av sakkunnig personal enligt servicedoku-

mentationens anvisningar.

ADVARSEL! . . a
Lithiumbatterier. Eksplosionsfare. Udskiftnmg ma kun
foretages af en sagkyndig 0g som beskrevet 1
servicemanualen.

batterierne kun m5 udsklftes med batterier af samme

fabrikat cg type.

aom-@fi-e-é-e-6WM

eye-oo-o-Q-Qfl

1.4. Package Assy and Accessory Ass'y

Fig. 1

Schematic

Ref. No. Part No. Description

0.
E

-- Package Assy

01 0F04547A Packing Top

02 0F04520A Packing Bottom

03 0FD4516A Inner Carton (Except JPNIS)
0F04599A Inner Carton (JPNIS)

04 0F04512A Outer Caxton (Except JPNl. JPNIS)
OF04607A Outer Carton (JPNI)
0F04606A Outer Caxton (JPNIS)

- 0F04504A Soft Sheet

Schematic
Ref. No.

HHHHHHHH

Part No. Description

6.
S

DA04492A Accessory Assy (USA, CAN)
DA04493A Accessory Assy (EP)
DA04494A Accessory Assy (AUS)
DA04551A Accessory Assy (JPNI)
DA04542A Accessory AssY (JPNl S)

DA04502A Remote Control Unit

0390462A Battery UM4x1 (Except JPNI,
JPNlS)

0390558A Battery AM4LR03X1 (JPNl, JPNlS)

0D04720A Maflc Tape (Male)

0D04721A Magic Tape (Female)

0D0$18 7A Owner 5 Manual (English/French]
German)

0D0618$A Owners Manual (Japanese) (JPNl)

0D06229A Owners Manual (Japanese) (JPNIS)

DA03825A Screw for Accessory Assy (JPNl)

DA044'17A Fuse AsSy (JPNl)

OBB5D4BA 4P Tax-urinal (Male) (JPNl)

HHHHH HHHN NH HHHHH

2. REMOVAL PROCEDURES

2.1. Top Cover and Bottom Cover
Refer to Fig. 2.1.

(1) Loosen screws F01 (2 pcs.) and remove F02 (Top Cover).
(2) Loosen screws F03 (3 pcs.) and remove F04 (Bottom Cover).

F02 Top Cover

_/ [F04

~r . Bottom Cover
F03

Rear View

F38. 2.1

2.2. Handle Auy and From Panel Aaly

Refer to Fig. 2.2.

(1) Remove the Top Cover and Bottom Cover relating to
item 2.1.

(2) Loosen screws F01 (4 yes.) and remove F02 (Handle Assy).

(3) Loosen screws F03 (2 pcs.). pull out F04. (Volume Knob
Assy). F05 (Peder Knob) and F06 (Azimuth Knob). and
remove F07 (Front Panel Assy).

1 Front Panel Assy
~ I
~ J02 }

Handle Assy \ .
\ i\Except JPNl
\ c F01 I
\\ r
\ xi
From View
Fig. 2.2
