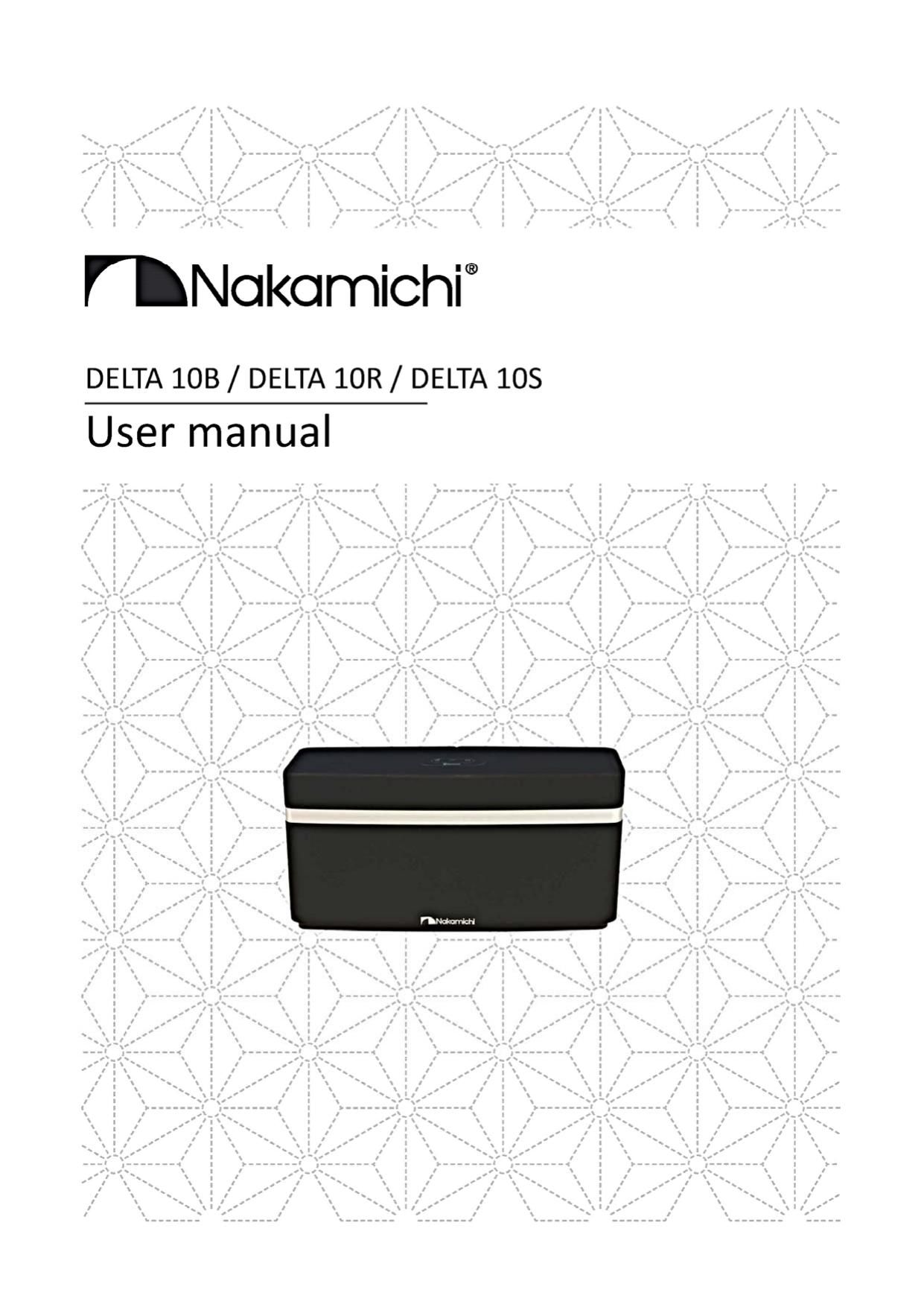

Nakamichi DELTA 10 R Owners Manual

Page 4

0- 9
9V DC 1 5A AUX N
o eC-o' will 0 ,
1 z 3

BACK PLATE
1. DC IN - Connect with provided Power Adaptor.
2. AUX IN - Insert with external input source (e.g, Smartphone or MP3 Player), the unit will turn to Aux
mode automatically when this jack is inserted. (Please Note: During Aux mode, the Bluetooth source
will not have sound playback. 3.5mm Aux cable not supplied)
3. USB Port for charging - 5V output for Smartphone charging at 1A current. (USB cable not supplied)
PAIR l
. 0 MI .
9 Bluiztnoth'
KEY PANEL
1. Bluetooth LED Indicators
- Flashing Red & Blue alternatively - Pairing mode
0 Flashing Blue - Waiting for connection
I Blue 0N - BT device connected
2. Standby key - Presso to turn on your Delta 10. Indicator 1 will light up in Blue if the source is Bluetooth,
whereas if the source is AUX, indicator 5 will light up in green.
3. PAIR key - Press . key to enter pairing mode, indicator 1 (Blue 81 Red) will flash alternatively.
4. Play/Pause key - Press a to play or pause playback, indicator 1 Blue will flash once each time you press
this button.
5. Aux LED

. Aux mode: Green

CONNECTING TO THE SPEAKER FOR THE FIRST TIME

1. Connect the speaker with the power adaptor provided.
2. Press "Standby" key to turn on the speaker, it will go to Pairing mode the first time you turn ON.
