Nakamichi CR 7 A Service Manual
This is the 48 pages manual for Nakamichi CR 7 A Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nakamichi CR 7 A Service Manual (Ocr-read)

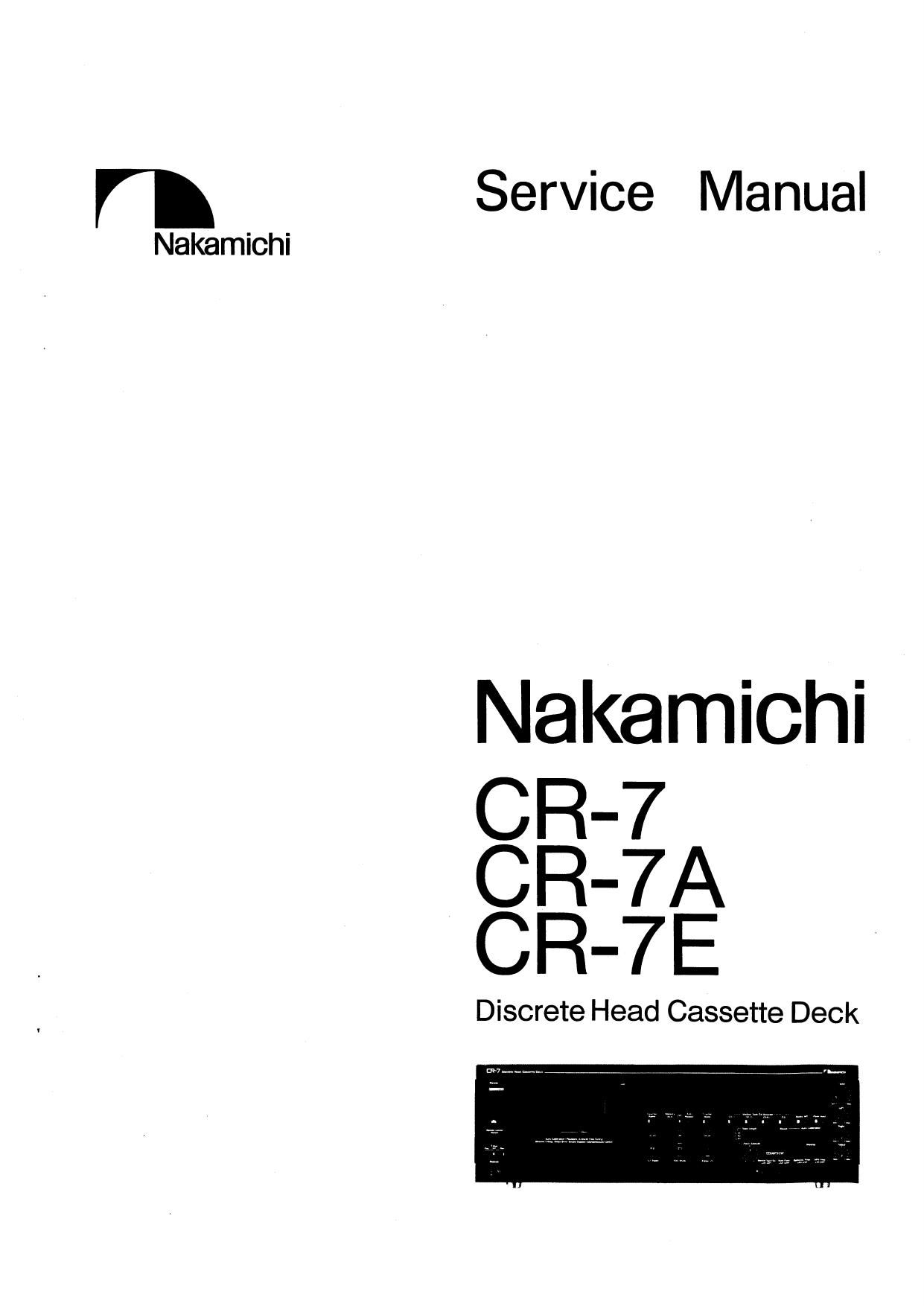

Page 1
n Service Manual
Nakamichi
Nakamichi
CR-7
CR-7A
CR-7E
Discrete Head Cassette Deck
Page 2
CONTENTS
1.
2.
3.
11.
12.
13.
General .................. . ..........
Test Tapes and Gauges . . . . . . . . . . . .
Mechanical Adjustments .........................
1. Record Head and Playback Head Tilt Adjustment .
Head Base Stroke Check ...............................
Erase Head Stroke Adjustment and Tape Guide Height Check
Erase Head Height and Tilt Adjustment .
Playback Head Azimuth Center Adjustment
Playback Head and Record Head Height Adjustment and Azimuth Alignment
Tape Travelling Check ......... . . . .
Eject Damper Adjustment ...........
. Reel Motor Speed Adjustment 111 Play Mode
10. Tape Speed Adjustment ........
11. Lubrication ...........
Parts Location for Electrical Adjustment
Electrical Adjustments
5. 1. How to Use Measurement Tools
5. 2. Adjustment Instructions . .
5. 3. Playback Frequency Response Adjustment .....
Mechanism Assy and Parts List .
6. Synthesis
Chassis Assy (A01)
Front Escutcheon L Ass'y (1301)
Front Escutcheon R Assy (302) . .
Mechanism Assy (803)
Rear Panel Assy (B04)
Front Escutcheon R Sub Assy (C01) ,
D. D. Motor Ass y (D01) ........
'ng Diagrams and Parts List . . . .
Power Switch P.C.B. Assy .
Shut-off P.C,B. Assy .....
Azimuth Motor P.C.B. Assy
Timer Switch P.C.B. Assy . . .
Headphone Jack P.C.B. Assy . . . .
Azimuth Control P.C.B. Assy . . . .
Pin Jack P.C.B. Assy .....
Volume P.C.B. Assy .
Receiver P.C.B. Assy . . .
10. Remote Control P.C.B. Assy
11. Control Switch P.C.B. Assy . .
12. Display P.C.B. Assy . . .
13. Dolby NR P.C.B. Ass'y .
14. Power Supply P.C.B, Assy .
15. MainP.C.B Assy .
16. Logic P. C. B. Ass y
hematic Diagrams ......... . .
1. IC Block Diagrams ......
2. Schematic Diagrams .....
8 2.1. Display Section
8. 2. 2. Amplifier Section . .
8.2.3 Mechanism Control Section
Wiring Diagram .....................
Block Diagrams ....... . . . .
10. 1. Amplifier Section ....... . .
10. 2. Mechanism Control Section ..... . .
Timing Chart and Eq. Amp. Frequency Response . .
11. 1. Eq. Amp. Frequency Response .....
11. 2. Timing Chart ............... . .
Remote Control Unit RM-IC ...................
Specifications
