Nakamichi CR 7 A Owners Manual

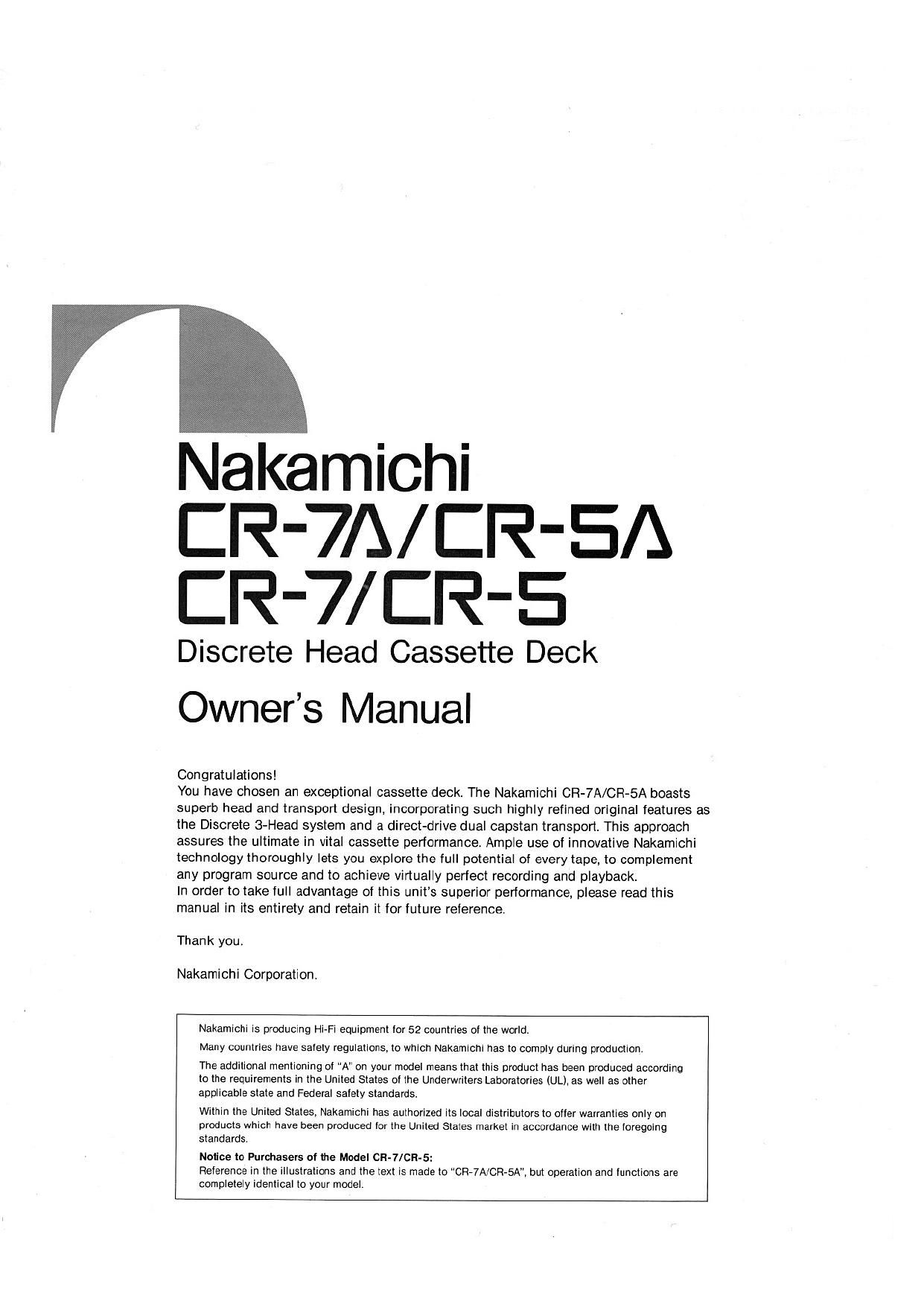

Page 1

Nakamichi
ER-7A/CR-SA
CR-7/CR-S

Discrete Head Cassette Deck

Owners Manual

Congratulations!

You have chosen an exceptional cassette deck. The Nakamichi CFt-7A/CR-5A boasts
superb head and transport design. incorporating such highly refined original features as
the Discrete 3-Head system and a direct-drive dual capstan transport. This approach
assures the ultimate in vital cassette periormance. Ample use of innovative Nakamichi
technology thoroughly lets you explore the full potential of every tape, to complement
any program source and to achieve virtually perfect recording and playback.

In order to take full advantage of this units superior performance. please read this
manual in its entirety and retain it for future reference.

Thank you.

Nakamichi Corporation.

Nakamichi is producing Hi~Fi equipment tor 52 countries of the world.
Many countries have safety regulations, to which Nakamichi has to comply during production.

The additional mentioning of A" on your model means that this product has been produced according
to the requirements in the United States oi the Underwriters Laboratories (UL). as well as other
applicable state and Federal saiely standards.

Within the United States, Nakamichi has authorized its local distributors to alter warranties only on
products which have been produced lor the United States market in accordance with the foregoing
standards.

Notice to Purchasers of the Model Cfi-7/CR5:
Relerence in the illustrations and the text is made to CRJA/CR-SA". but operation and Iunotions are
completely identical to your model.

Page 2

EFILITIDN
SHDEK. DUNUTDPEN'
CAUTION

TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK), NO
USER REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

A

The lightning flash with arrowhead
symbol. within an equilateral triangle. IS
intended to alert the user of the presence
of uninsulated "dangerous voltage"
with"! the product's enclosure, that may
be of sufficient magnitude to constitute a
risk of electric shock to persons

The exclamation point within an
equilateral triangle IS intended to alert
the user of the presence of important
operating and maintenance (servicing)
lnSIruCthns, in the literature
accompanying the appliance.

A

WARNING

TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR
MOISTURE.

This equipment generates and uses radio
frequency energy and if not installed and used
property, that is. in strict accordance with the
manufacturer's instructions, may cause
interference to radio and television reception. It
has been type tested and found to comply with
the limits for a Class B computing device in
accordance with the specifications in Subpart
J of Part 15 of FCC Rules, which are designed
to provide reasonable protection against such
interference in a residential installation.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged
to try to correct the interference by one or
more of the following measures:
- reorient the receiving antenna
- relocate this equipment with respect to the
receiver
- move this equipment away from the receiver
4 plug this equipment into a different outlet
so that equipment and receiver are on
different branch circuits.
If necessary. the user should consult the
dealer or an experienced radio/television
technician for additional suggestions. The user
may find the following booklet prepared by the
Federal Communications Commission helpful:
How to Identify and Resolve Radio-TV
Interference Problems".
This booklet is available from the US.
Government Printing Office, Washington, DC
20402, Stock No. 004-0000034511.

Please record the Model Number and Serial
Number in the space provoded below and
retain these numbers.
Model Number and Serial Number are located
on the rear panel of the unit.
Model Number: CR-7A/CR-5A

CR-7/CR-5
Serial Number:

CONTENTS

Safety Instructions ........................... 2
Controls and Features 3
Connections ........ 5
On Cassette Tapes . ..., t 5
Operation .................................... 6
Playback Head Azimuth Adjustment (CR-7A) .. 8
Auto Calibration (CR-7A) .................... a
Real-Time Tape Counter (CR-7A). . 9

Auto Fade tCR-7A) .................
Use of the Remote Control Unit (CR»7A
Bias Fine Tuning (CR-5A)..
More Convenient Features.
Maintenance. .
Specification
Troubleshooting.
Optional Accessories

Safety Instructions

The following safety instructions have been
included in compliance with safety standard
regulations, Please read them carefully.

1. Read Instructions-All the safety and
operating instructions should be read
before the appliance is operated.

2. Retain instructions-The safety and
operating instructions should be retained
for future reference.

3. Heed Warnings-All warnings on the
appliance and in the operating instructions
should be adhered to.

4. Follow Instructions-All operating and use
instructions should be followed.

5. Water and Moisture-The appliance should
not be used near water-for example, near
a bathtub, washbowl, kitchen sink, laundry
tub, in a wet basement, or near a swimming
pool, etc.

6. Carts and Stands -The appliance should be
used only with a cart or stand that is
recommended by the manufacturer.

7. Wall or Ceiling Mounting-The appliance
should be mounted to a wall or ceiling only
as recommended by the manufacturer.

8. Ventilation-The appliance should be
situated so that its location or position does
not interfere with its proper ventilation. For
example, the appliance should not be
situated on a bed, sofa, rug or similar
surface that may block the ventilation
openings; or placed in a built-in installation,
such as a bookcase or cabinet that may
impede the flow of air through the
ventilation openings.

9. Heat-The applicance should be situated
away from heat sources such as radiators,
heat registers. stoves. or other appliances
(including amplifiers) which produce heat.

10.Power Sources-The appliance should be
connected to a power supply only of the
type described in the operating instructions

or as marked on the appliance.

1 LGrounding or Polarization-Precautions
should be taken so that the grounding or
polarization means of an appliance is not
defeated.

1 2. Power»Cord Protection ~Power-su pply
cords should be routed so that they are not
likely to be walked on or pinched by items
placed upon or against them, paying
particular attention to cords at plugs,
convenience receptacles, and the point
where they exit from the appliance.

13.Cleaning-The appliance should be cleaned
only as recommended by the manufacturer.

14.Nonuse Periods-The power cord of the
appliance should be unplugged from the
outlet when left unused for a long period of
time.

15.0biect and Liquid Entry-Care should be
taken so that objects do not fall and liquids
are not spilled into the enclosure through
openings.

16. Damage Requiring Service-The appliance
should be serviced by qualified service
personnel when:

A The power-supply cord or the plug has
been damaged; or,

B. Objects have fallen, or liquid has been
spilled into the appliance; or

c. The appliance has been exposed to
rain; or,

D. The appliance does not appear to
operate normally or exhibits a marked
change in permormance; or,

E The appliance has been dropped, or the
enclosure damaged.

17 Servicing-The user should not attempt to
service the appliance beyond that
described in the operating instruction. All
other servicing should be referred to
qualified service personnel.

Page 14

Nakamichi Oorpovalion Tokyo oflnca Shiniuku Daiichi Seimei Bldg, 2-7-1 Nishishiniuku, Shinluku-ku. Tokyo 163 Phone: (08) 3424461 Telex: 2324721 (NAKAM Jl
Nakamichi America Capaaflon 19701 Scum Vermont Ave Torrance. CA 90502 Phone: 1213) 538-8150

Nakamichi Canada 276 South West Marine Drive. Vancouver, B.C. V5X 2R4 Phone: (604) 324-7535

Nakamichi GmbH Stephanienstrasse 6. 4000 Dilsseldod 1 Phone: (0211) 359036

0004553: 03906on mum m Jaw-n
