Nakamichi CR 4 Owners Manual

Page 1

Naakmichi

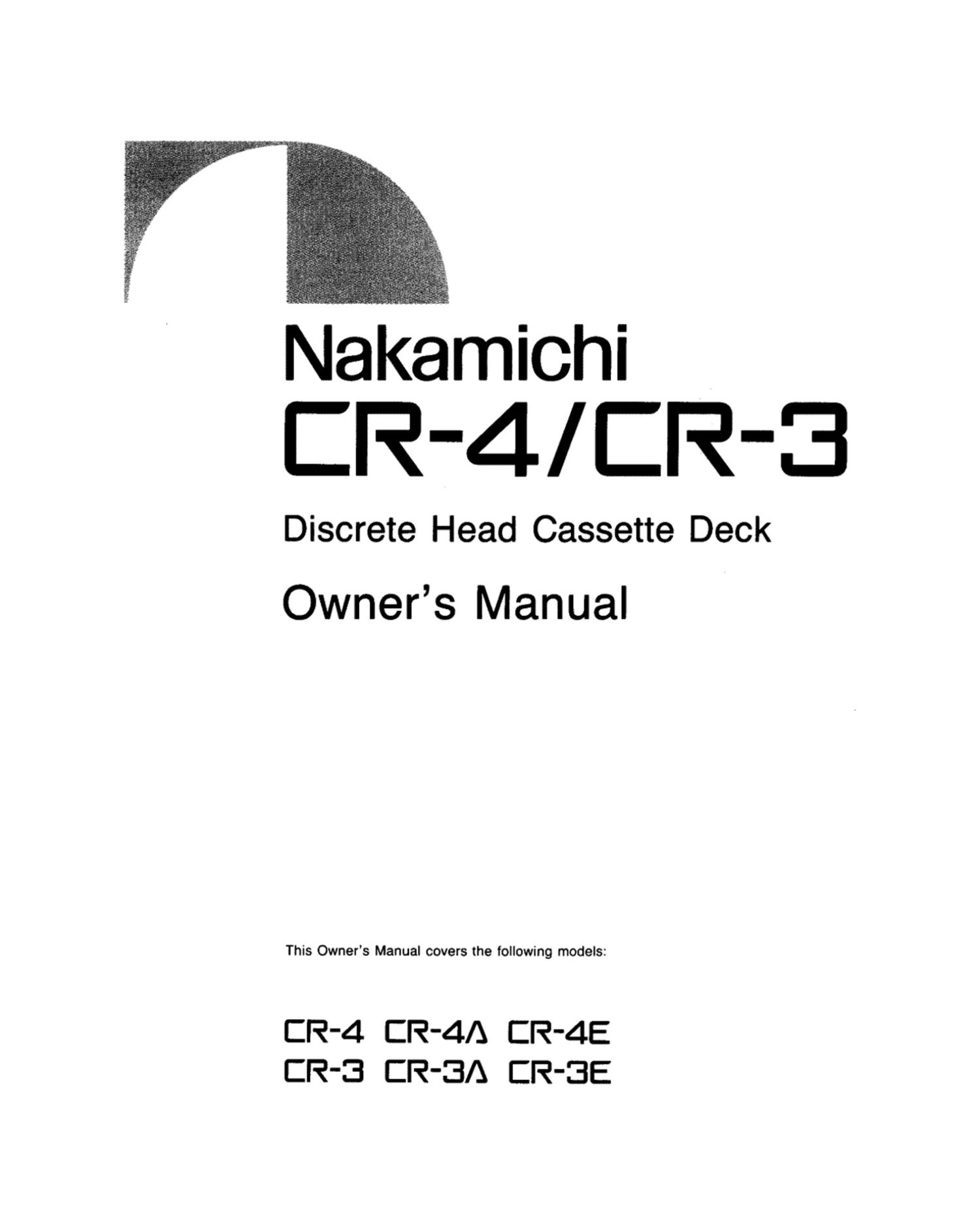

CR-4/CR-3

Discrete Head Cassette Deck

Owners Manual

This Owner's Manual covers the following models:

CR-4 CR-4A [ZR-4E
[ZR-13 [ZR-13A [IR-13E

Page 2

Congratulations!

You have chosen a truly exceptional product. All
Nakamichi audio components are created according to
a simple but highly demanding philosophy: perfectly
natural reproduction of the musical experience. without
the slightest trace of coloration. Even the ambience of
the stage and the heartbeat of the perfonners can be felt
when hearing music reproduced the Nakarnichi way. This
is what has earned our products a dedicated following
among discerning audio enthusiasts. music lovers and mu-
sicians the world over.

The CR~4/CR-3 cassette deck incorporates such highly
refined original Nakamichi features as the discrete 3-head
system and dtflused-resanance double~capstan trans-
port. The circuit design reflects latest amplifier technol-
ogy. Each deck is individually and carefully adjusted at
the factory. to guarantee optimum perjonnance. 77w out~
standing recording and playback quality is complement-
ed by attractive appearance and exceptional ease of use.

In order to takefitll advantage of this unit is superior per-
formance. please read this manual in its entirety and re~
lain it for fitture reference.

Thank you.
Nakarnichi Corporation

The photo on this page shows the concert hall in the Nalurnichi
Research Institute. Here every component ntust prove itself.
above and beyond technical specifications.'lhis hall helps us
explore the realm of live music. which is the starting and end
point in the development of all Nakamichi products.

English from page 3

Ijeber Stereo/reund!

Sie haben sich fitr ein in jeder Hinsicht hervorragendes
Gerdt entschieden. All: Audio-Komponenten von
Nakarnichi folgen einetn ebenso einfachen wie strikten
Motto: absolut natu'rliche Musikwiedergabe. ohnejeden
Anflug von Vertbrbungen. Musilr haren mit Nakamichi
ist ein Erlebnis. das selbst die Raumdimension und die
elektrisierende Atmosphare auf der Bahne mit ein-
schliejlt. Nicht urnsorut geniefit der Name Nakarnichi bei
Musikfreunden. HiFi-Uebhabem und Musikern aufder
ganzen Welt einen so guten Ru}:

lm Cassettendeck CR-4/CR-3 sind zahlreiche von
Nakamichi entwickelte Techniken verwirklicht, wie z. B.
die drei separaten Tonkopfe in Discrete '-Konfiguration
und der Doppel-Capstan-Direlttantrieb. Die Schaltung-
skonzeption beruht aufrnodernsten Verstarkerprinapien.
Darriber hinaus wirdjedes Gera't im Werlr einzeln justiert
und eingemessen, mas durchgehend hohe Qualitdt sichert.
Attraktives Styling und durchdachte Bedienungsfreund-
lichlteit sind weirere nicht zu itbersehende Merkmale.

Um die mrzugliche Leistung dieses Germs vol! zu nut-
zen. raten wir lhnen. die Bedienungsanleitung vor In-
betn'ebnahme genau durchzulesen und fitr spateres
Nachschlagen gut aufiubewahren.

Vielen Dank.
Nakamichi Corporation

035 Foto auf dieser Seite wigt die Konzenhalle im Nakamichi-
Forschungsuntrum. Uber die rein technische Seite hinaus
gewinnen wir don wichtige Impulse fiir unsete Arbeit. Jedcs
Gerit muB hier beweisen. was in ihm steckt. and live erlebte
Musrk steht am Aniang und Ende aller Entwicklungsarbeit.

Deutsch von Seite 10

Franeais de la page 17

Cher client!

You: venez d acquerir un produit reellement exception-
nel. Tous les elements des chaines Nakamichi sont con-
cus selon un principe simple mais des plus exigeants. a
savoir: une reproduction parfaiternent naturelle. exempte
de la moindre coloration, de ioute expression musicale.
Quand une musique est reproduite par Nakamichi. c 'est
toute l'arnbiance du plateau que l'on ressent. jusqu 'aux
battements de coeur des musiciens. De nous étre tenus
a ce principe nous a vain des adeptes fineles panni les
audiophiles, les mélornanes et les musiciens du monde
entier.

[es rnodéles CR-4 et CR-3 son! darts l'esprit des platines
a cassettes de Nakamichi avec leurs trois tétes distinctes
et leur mécanisme d 'entrainement par double caltestan
(1 absorption des resonances. caractéristiques dont les
avantages ne sont plus & dérnontrer. Les circuits ont été
concus en tenant compte des dernieres innovations dans
le domaine de la technologie des arnplificateurs. Four
[0 garantie des performances. les reg/ages en usine sont
efectués avec le plus grand soin sur chaque platine prise
individuelletnent. Ces platines ne vous ofl're pas seule-
ment une qualité incomparable en matiere d enregistre-
ment et de lecture, elles sont égalernent d aspect atrraymt
ct extrimernent facile a employer.

Afirt de profiter pleinement des performances supérieures
de cet appareil. nous mus conseillons vivement de lire
d 'abord ce mode d 'emploi d 'un bout a l 'autre et de le
conserwr pour pouvoir vous y référer plus tard.

Merci.
Nakamichi Corporation

La photo ci-dcssus est unc we de la salle dc concert qui se trouvc
dans l'inxtitut de recherche: de Nakamiclti. Cctte salle scrt h
mewrer les sensations qui. par definition meme. sont
immensurables et se situem audela des spécifications techniques.
C 'est clans cc royaume de la musique vivante quc commence et
quaboutit la creation de tous les produits Nakamichi.

Page 3

English

ERUTIUN

RISK OF ELECTRIII

A suncx. onunrnreu!

-----CAUTION

TO REDUCE THE RISK OF
ELECTRIC SHOCK. DO NOT
REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS
INSIDE.

REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

A

The lightning flash with arrowhead
symbol. within an equilateral triange. is
intended to alert the user of the
presence of uninsulated "dangerous
voltage" within the products enclosure;
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.

The exclamation point within an
equilateral triangle is intended to alert
the user of the presence of important
operating and maintenance (servicing)
instructions. in the literature
accompanying the appliance.

A

WARNING

TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR
MOISTURE.

This equipment generates and uses radio frequency
energy and if not installed and used properly. that
is. in strict accordance with the manufacturer's in~
structions. may cause interference to radio and tele-
vision reception. It has been type tested and found
to comply with the limits for a Class B computing
device in accordance with the specifications in Sub-
part J or Part 15 of FCC Rules, which are designed
to provide reasonable protection against such in.
terference in a residential installation.
However, there is no guarantee that interference will
not occur in a particular installation. If this equip-
ment does cause interference to radio or television
reception, which can be determined by turning the
equipment off and on. the user is encouraged to try
to correct the interference by one or more of the fol-
lowing measures:
- reorient the receiving antenna
- relocate this equipment with respect to the
receiver
- move this equipment away from the receiver
- plug this equipment into a different outlet so that
equipment and receiver are on different branch
circuits.
lf necessary. the user should consult the dealer or
an experienced radio/television technician for ad-
ditional suggestions. The user may find the following
booklet prepared by the Federal Communications
Commission helpful:
"How to Identify and Resolve Radio-TV Interfe-
rence Problems".
This booklet is available from the US. Government
Printing Office. Washington. DC 20402. Stock No.
004-0000034541.

Please record the Model Number and Serial Num-
ber in the space provided below and retain these
numbers.
Model Number and Serial Number are located on
the rear panel of the unit.
Model Number: CR-4lCR-3

CR-4AICR-3A

CR-4EICR-3E

Serial Number:

Nakamichi high-fidelity equipment is sold in
more than 50 countries around the world. Many
of these countries have strict safety regulations
to which Nakamichi products must comply.

Models designated by an A" have been
produced for North America (USA and Canada)
and comply with the requirements of Under-
writers Laboratories (UL) andlor Canadian Stan-

dards Association (CSA) as well as with other
applicable stale/provincial and federal safety
standards.

Models designated by an E have been
produced for Europe and comply with the re-
quirements of EEC Recommendation 82/499 as
well as with other applicable European safety
standards.

Models without an A" or E" have been
produced for countries other than North Ameri-
ca. Europe and Japan and comply with applica-
ble safety standards.

Nakamichi has authorized its local distributors
to offer warranties only on products which have
been produced in accordance with the forego-
ing standards.

Safety Instructions

The following safety instructions have been included
in compliance with safety standard regulations.
Please read them carefully.

1 . Read Instructions -- All the safety and operat-
ing instructions should be read before the ap-
pliance is operated.

2. Retain instructions - The safety and operat-
ing instructions should be retained for future
reference.

3. Heed Warnings - Adhere to all warnings 0n
the appliance and in the operating instructions.

4. Follow Instructions - All operating and use in-
structions should be followed.

5. Water and Moisture - The appliance should
not be used near water - for example. near
a bathtub. washbowl.kitchen sink. laundry tub.
in a wet basement. or near a swimming pool,
etc.

6. Carts and Stands - The appliance should be
used only with a cart or stand that is recom-
mended by the manufacturer.

7. Wall or Ceiling Mounting - The appliance
should be mounted to a wall or ceiling only as
recommended by the manufacturer.

8. Ventilation - The appliance should be situat-
ed so that its location or position does not in-
terfere with its proper ventilation. For example.
the appliance should not be situated on a bed.
sofa. rug or similar surface that may block the
ventilation openings; or placed in a built-in in-
stallation. such as a bookcase or cabinet that
may impede the flow of air through the venti-
lation openings.

9. Heat - The applicance should be situated
away from heat sources such as radiators. heat
registers, stoves. or other appliances (includ-
ing amplifiers) which produce heat.

3

Page 7

Calibration (CR-4)

The CR4 provides facilities for manual calibration.
to match the deck to a wide variety of tapes. For
best results, perform calibration before starting to
record.
0 Before doing the calibration. turn off the Dolby
NR switch.

0 The position of the Monitor switch has no effect
on calibration. The output is switched off.

0 While the Calibration switch of the CR4 is set
to "On," regular playback or recording is not
possible. Take special care not to inadvertently
set the switch to "On" during normal recording.

as a test tone will be recorded in such a case.
Always set the switch to "0" when calibration
is not being performed. To prevent noise tran-
sients from reaching the output. a muting circuit
is active for a few seconds when the Calibration
switch is operated.

1 ,_. __ . _ ___________._____.

0
Bus -- Dior-en *- «we
:10- on.

a Q

Insert the tape to be used for recording and set the
Tape Selector and Eq switch to the required posi-
tions. Then set the Calibration switch to "On."

Set the deck to the record mode and start the tape.
A test tone is now being recorded. and the results
are shown on the peak level meters, which assume
a special function during calibration.

First adjust the bias current to achieve flat frequency
response. Turn the Bias control until the indication
of the upper and lower meter bars becomes equal.
The upper bar corresponds to high-range response
and the lower bar to low-range response.

L - \
new at: :0 o s) 3 s r
n-----I
O
O

8-" -- Cam-tor u the

. JO 3'.

. - :JtBIo" -LM'

,1 If ur-

Next. adjust the overall level to match the sensi-
tivity of the tape. Turn the Level control until the in-
dication of the lower meter bar matches the "Cal"
mark. The upper bar should now also be approxi-
mately at the Cal" mark.

If there is a notable difference in upper and lower
meter readings. readjust the Bias control until both
bars match the Cal" mark. This completes the
calibration procedure.

Set the Calibration switch to ".Off" The tape is au-
tomatically rewound to the beginning (or to the zero
point of the tape counter, if Memory Stop is ac-
tivated).
