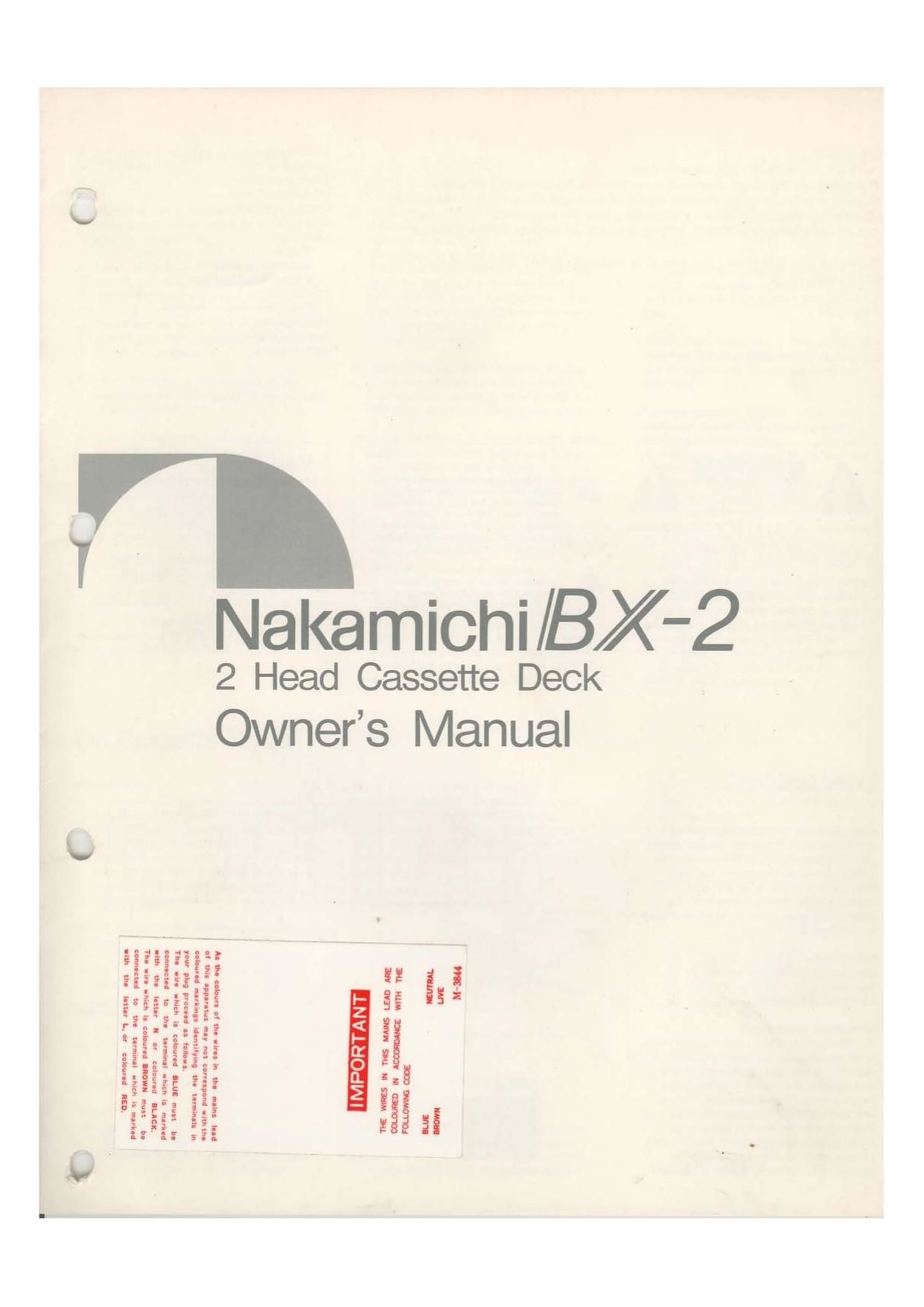

Nakamichi BX 2 Owners Manual

Page 2

Congratulations!
You have chosen a very tine cassette deck.

The Nakamichi BX-2 was developed on the basis oi this company's extensive
experience with high-grade mssette decks. While Incorporating much of Nakamichl's
superior technology and following its sound policy. this basic model delivers high

CONTENTS

Connections .....
Salety Instructions
On Cassette Tapes .
Controls and Features

overall characteristics and represents an extraordinary value at a moderate price. mfigs
Playback
Please take the time to read this manual In its entirety to lully acquaint yoursell with Matching the Dec .0
this cassette deck. Various Cassette Tapes . 5
Recording ............. . 6
Thank you. Timer Recording or Playback. , 6
Maintenance ..... . 7
Troubleshooting . 7
Nakamlchi Corporation. WI'MI'WL , 5
EHUTIDN Th ii in i ilasltwiih nowhead WARNING
e n no a
RISK uF ELEEiPiE A symbgl. within an equilateral triangle, is To PREVENT FIRE OR SHOCK
SHUEK DUNDTDPEN' Intended to alert the user of the presence HAZARD. DO NOT EXPOSE
fliiiénflfifilfflévimfi ma THIS APPLIANCE TO RAIN on
u i
CAUTION be at suflicient magnitude to mlltmeya MOISTURE-
TO REDUCE THE RISK OF risk of eieciric shock to persons. -J

ELECTRIC SHOCK. DO NOT
REMOVE COVER (OR BACK). N0
USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL

The exclamation point within an
aouilaleral triangle Is intended to alert
the user at the presence at Important
operating and maintenance (servicing)
instructions, in the literature
accompanying the appliance.

Connections

Alter consulting the instructions lor your
ampliiier or receiver. use the shielded cables
with RCA plugs (provided with the deck) to
make connections as shown in the chart.
Take care not to mix up left and right
channels. While making connections. the
power to the deck and to the ampiltler should
be switched oft.

Headphones

Standard stereo headphones with an
impedance at B~150 ohms may be
connected to the headphone Jack

Microphone Occupations

The BX-2 possesses only line input Iacillties.
when microphones are to be used tor
recording, a separate microphone mixer with
a line output must be connected to this
deck's line input terminals.

Nakamlchl alters the optional MX-iOO
Microphone Mixer. which provides three
inputs ior Iett. right and center blend (L+ Ft)
microphones. To power the MX-i 00. the
separate PS-ioo Power Supply is required.

Please record the Model Number and Serial
Number In the space provided below and

retain these numbers.

Modei Number and Serial Number are located
on the rear panel at the unit,

Model Number: Nakamichl BX-Z

Serial Number: A-L_ 7m

Madnhone:

to Impillior's "Roc Out terminals (L 4

pumpkin", ampiiiinr
or mcolvor

ioACw-iiwiiotcr

unpiiiinr. M: outlet

to amplifiers Tape Play" terminals (L. m
