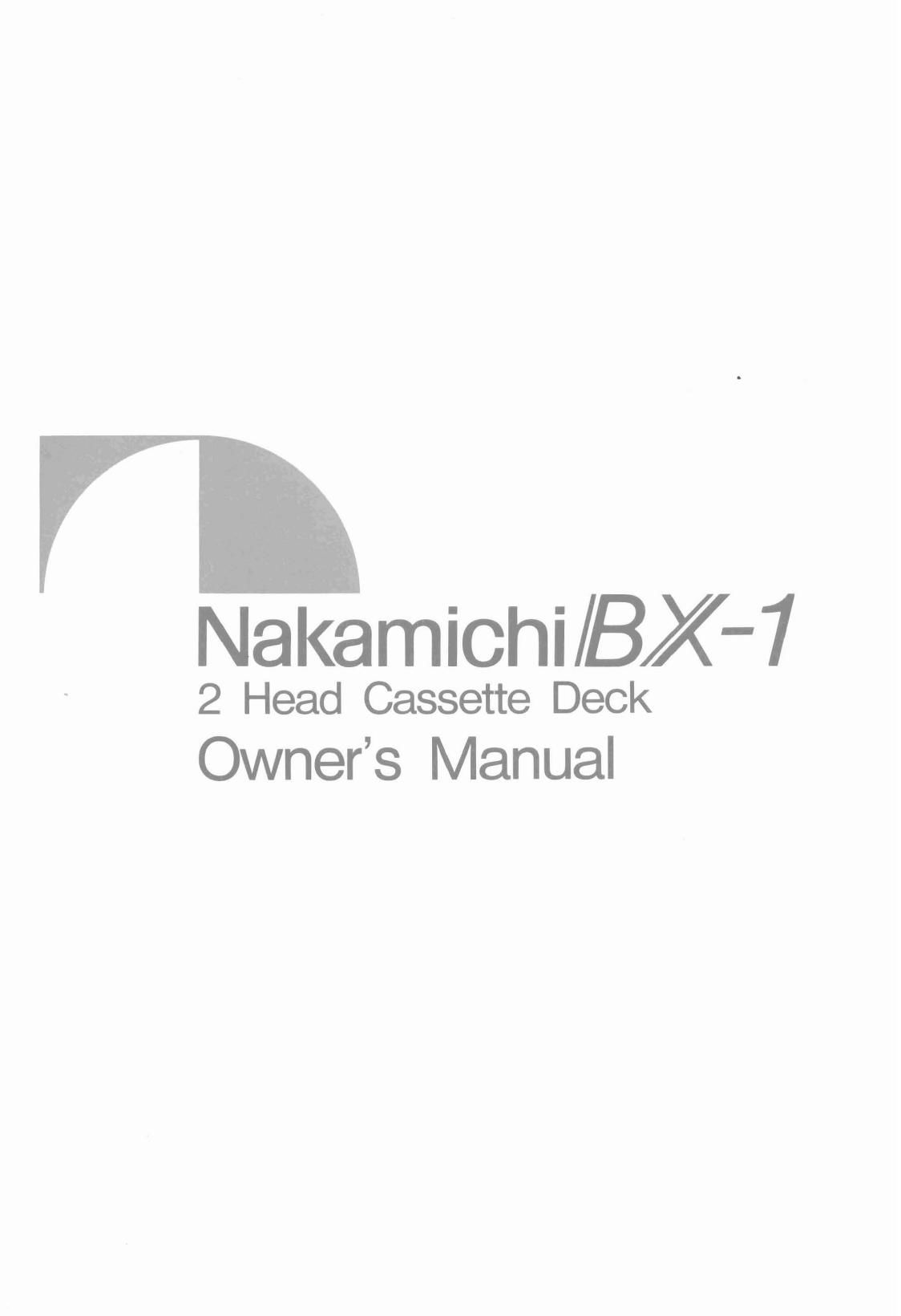

Nakamichi BX 1 Owners Manual

Page 1

Page 2

Page 7

Specifications Specifications Optional Accessories Track Configuration.. .............. .4 tracks/2-channel stereo Heads.. ............................ .2 (erase head x 1, record/playback head x 1) Motors (Tape Transport). ........... DC servo motor (capstan drive) x 1 DC motor (reel drive) x 1 Power Source.. ..................... 100, 120, 120/220-240. 220 or 240V AC; 50/60Hz (According to country of sale) Power Consumption.. .............. .23 W max. Tape Speed. ........................ 1 -7/8 ips. (4.8 cm/sec.) &0.5°10 Wow-and-Flutter.. .................. Less than 0.1 1% WTD Peak Less than 0.06% WTD RMS Frequency Response .............. .20 Hz-20,000 Hz (recording level -20 dB) Signal-tc+Noise Ratio.. ............. Better than 62 dB (Dolby B-Type NR on, 70ps, ZX tape, 400 HZ, 3% THD, IHF A-WTD RMS) Total Harmonic Distortion.. ......... Less than 1.0% (400 Hz. 0 dB, ZX, EX 11 tape) Less than 1.2% (400 Hz, 0 dB, SX tape) Erasure.. ........................... Better than 60 dB (1 00 Hz, 0 dB) Separation .......................... Better than 36 dB (1 kHz, 0 dB) Crosstalk ........................... Better than 60 dB (1 kHz, 0 dB) Bias Frequency.. ................... 105 kHz Input (Line) ........................ .50 mV, 30 kn Output (Line). ...................... .0.5V (400 Hz, 0 dB) 2.2 kn (Headphones). .............. 1.2 mW (400 Hz, 0 dB) 8 R load Dimensions ........................ .430(W) x 110(H) x 250(D) millimeters 16-1 5/16(W) x 4-5/16(H) x 9-7/8(D) inches Approximate Weight ............... .5.5 kg 12 Ib. 2 oz Specifications and appearance design are subject to change for further improvement without notice. Dolby NR under license from Dolby ~aboratories Licensing Corporation. The word "DOLBY" and the Double-D-Symbol are trademarks of Dolby Laboratories Licensing Corporation. Nakamichi Corporation Tokyo Office Shinjuku Daiichi Seimei Bldg. 2-7-1 Nishishinjuku. Shinjuku-ku, Tokyo Phone : (03) 342-4461 Teiex : 2324721 (NAKAM J) Nakamichi U.S.A. Corporation 1101 Colorado Avenue Santa Monica, Calif. 90401 Phone : (213) 451-5901 Telex : 652429 (NAKREI SNM) ZX Metalloy Cassette Tape C-60, C-90 SX ll Super Ferricobalt Cassette Tape C-60, C-90 SX Ferricobalt CassetteTape C-60, C-90 EX U Ferricrystal Cassette Tape C-60, C-90 EX Ferrioxide Cassette Tape C-60, C-90 DM-10 Head Demagnetizer SF-10 Subsonic Filter SP-7 Stereo Headphones Nakamichi GmbH Stephanienstrasse 6, 4000 Duesseldorf 1 Phone : (0211) 359036 Telex : 8588834 (NAKA D) 0-83082CL Printed an Japan
