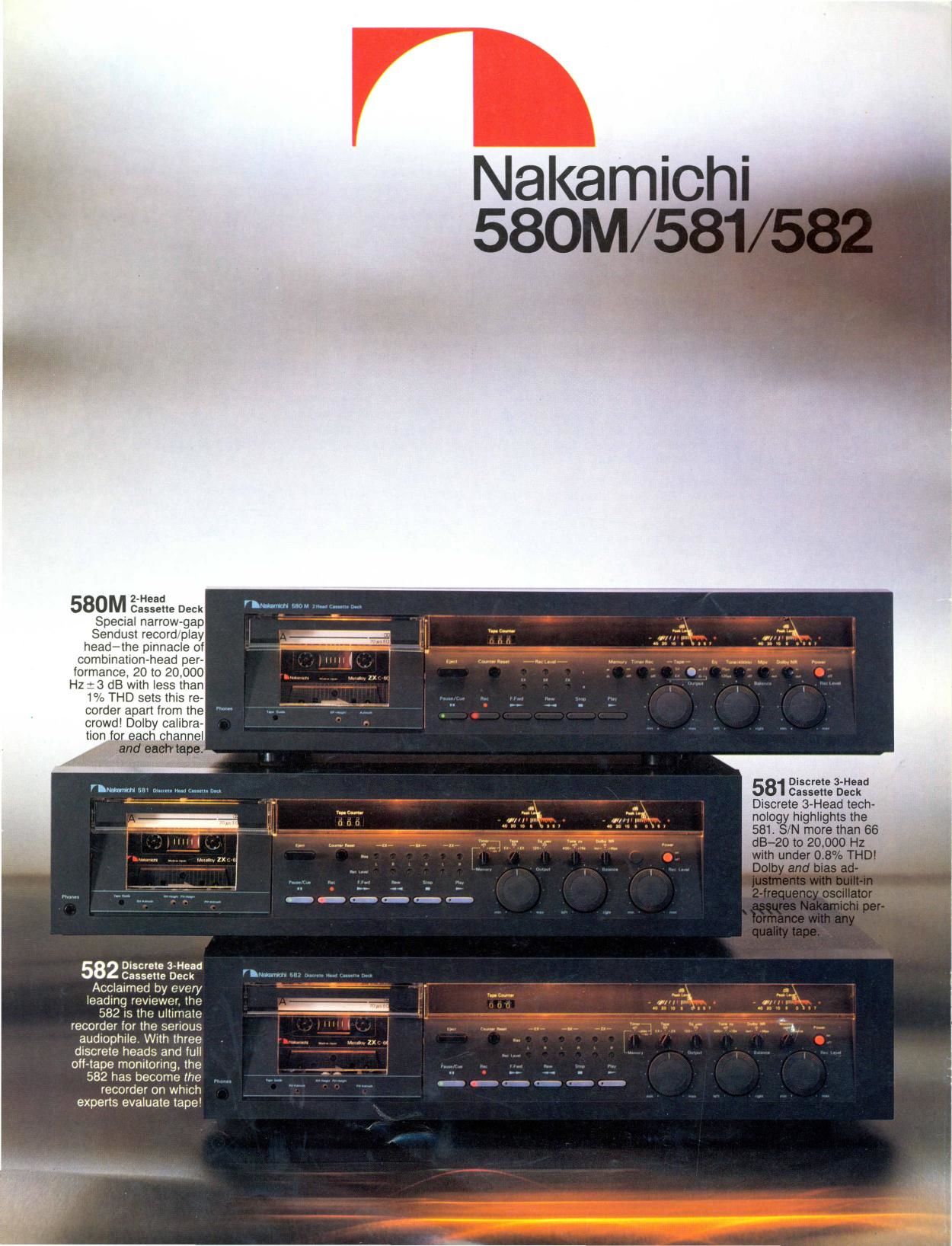

Nakamichi 580 M Brochure

Page 1

580M 2-Head
Cassette Deck
Specnal narrow-gap
Sendust record play
headithe pinnacle of
combination-head per-
formance, 20 to 20.000
Hz *3 dB with less than
1% THD sets this re-
corder apart lrorn the
crowd! Dolby calibra-
tion for each channel
and eaeh tape.

thrmnm um i.

582 Duane 3-Head
Cassette Deck
Acclaimed by every
leading reviewer, the
582 is the ultimate
recorder for the serious
audiophile, With three
discrete heads and full
oft-tape monitoring, the
582 has become the
recorder on which
experts evaluate tape!

Nakamichi
580M/58

581 Discrete 3-Head
Cassette Deck
Discrete 3-Head tech-
nology highlights the
581. S/N more than 66
dB-20 to 20,000 Hz
with under 0

D h

..
"lllll N I V ..

Page 2

For The Serious Recordist

580-Series Philosophy

580-Series cassette recorders occupy a unique position in the
Nakamichi universe-which is to say they are unique in the
world! The culmination of our effort to create equipment that
affords the serious recordist an ability to extract total performance
from each tape. the 580M. 581. and 582 are dedicated to those
who take recording seriously and like to practice their art. With a
580»Series deck. recording is not only convenient but pleasurable

Each SEC-Series deck has individual record-calibration con-
trols for each track and for each of the three major tape groups-
premium ferric, chrome/chrome-equivalent. and metal. A self-
contained tone generator and accurate metering afford precise
Dolby tracking for today's tapes and tomorrows formulations
as well. On the discrete-head 581 and 582. a second tone oscilla-
tor provides a precise means of bias adjustment and opens the
world of new tape formulations to you.

Nakamichi's unique Asymmetrical. Diffused-Resonance. Dual-
Capstan Transport with lC-Logic Control and Motor-Driven
Cam not only provides superior tape motion in RECORD and
PLAY but a special high-speed cueing function too. Touch
REWlND or FAST FORWARD when in either highspeed mode.
and the tape slows to one-third; the heads approach the tape
so you can hear the program. Press either button again. and the
speed is one-fifth for precision program location.

Sophisticated Mechanical Innovation
It is no exaggeration to claim the 580~Series transport as the first
true innovation in tape-transport technology in many years.
While conventional wisdom admits the superiority of the dual-
capstan design in wresting control of the tape from the cassette
housing. typical two'capstan machines are afflicted with common
resonances that increase the audibility of "wow." Nakamichi's
unique Asymmetrical. Diffused-Resonance Transport eliminates
common modes by employing capstans. flywheels. and pressure
rollers of different diameter and inertia No two parts rotate at
the same speed so resonances are diffused. Specially chosen
plastics and aluminum alloys absorb vibration and prevent it from
producing flutter. Heat-producing. jarring solenoids have been
eliminated entirely. replaced by a unique. smoothvacting. motor-
driven cam. Two pre-
fiarqla cision shoes. one at
each capstan. guide
the tape with exqui-
site accuracy~so
superior to common
fork guides that
20~kHz response is
achieved without user-
adjusted azimuth!
And, to prevent tape
skew across the heads
due to a misaligned
pressure pad, the pad
is automatically lifted
out of the way in
the record and play modes, Elimination of the pressure pad also
eliminates the scrape flutter and modulation noise it induces.

a nstaiV

erase heart

Wmd Item!

tape guide lane giiirte

playback head pressure roller

pressure roller pressure Dad lifter

581582 DiscreterHead Configuration

A New Standard of Excellence in Recording

Hardly had the Nakamichi 582 been introduced when it was
greeted with rave reviews and became the new standard of
excellence adopted by tape manufacturers and reviewers alike as
the recorder with which to evaluate magnetic tape. Why?
Because of its unique combination of performance and
features-its adaptability to different tape formulations. its stabil
ity of reproduction. and its superb high-level recording ability. low
noise and distortion.

This excellence stems from Nakamichi Discrete-Head Tech-
nology-physically and magnetically separate Crystal/0y record-
ing and playback heads and exclusive Dual-Gap. Direct-Flux
erase head-and superior Nakamichi recording electronics-DC
coupled with Double-NF circuitry, Precisely the same

Nakamichi Corporation

Nakamichi USA. Corporation

heads and electron-
ics are used on the
581. and it provides " *
performance and
features identical to
the 582 except for
the omission of off-
tape monitoring pro~
visions. Bias and
record-calibration
adjustments can be
made on either deck
without rewindlng
the tape.

The 580M is a 2-
head recorder using
the same transport
and virtually the
same electronics as the 581682. Record calibration compen-
sates for differences in tape sensitivity. With its ultra-fine-gap
Sendust record/play head, the 580M is fully metal-compatible and
affords the same bandwidth-20 to 20,000 Hz :3 stas the
581/582 albeit at slightly greater distortion and noise.

. mi mix)

Tape: Nakamichi ZX Eq: 70 HS

so: 1m 1m snrn'liiwzmrxiimou c.
"trauma (>111

580M531582 Frequency Response Noise Analysis

Features
0 Metal»Tape Recording For Superior High-Frequency Headroom
0 Advanced Magnetic Heads With 20~20.000 H2 Response
0 Dual-Gap. Direct-Flux Head For Complete Erasure Of Metal Tape
0 Asymmetrical, Diffused-Resonance Transport With
Motor-Driven Cam
0 Cal Controls and Tone Generator Assure Perfect Dolby Tracking
I Wide-Range Bias Adjustment Matches All Tapes (581582 only)
0 l0 Logic With Cue. High-Speed Shutolf. And Slack-Tape Takeup
I 47-dB Peak-Responding Meters For Tape Setup And Recording
0 Dolby Noise-Reduction System With Defeatable MPX Filter
0 Record. Balance. And Output-Level Controls
0 Total Remote Control Via RM-200 Option
0 Timer Operation And Tape-Stan Memory
0 High~0utput Headphone Jack Plus DC Power For Blackbox Series

Specifications:
Power Source ......... 100. 120, 120/220-240, 220 or 240V;
50/60 Hz (according to country of sale)

Power Consumption . . . .27W (581/582); 28W (580M) Max

Tape Speed ........... 1-7/8 ips (4.8 cm/s) 10.5%

Wow-and-Flutter ....... Less than 0.10% WTD Peak
Less than 0.05% WTD rms

.20-20,000 Hz (s20 dB Rec. Level)

. Better than 66 dB (581/582)

Better than 64 dB (580M) (400 Hz. 8%
THD. A-WTD rms)

.Less than 0.8% (ZX Tape); Less than
10% (5x. EXll Tape) (581/582) Less
than 10% (2X, EXII Tape); Less than
1.2% (sx Tape) (580M)

Frequency Response . . .
Signal-to-Noise Ratio . , .
(Dolby NR in, 70 its)

Total Harmonic Distortion
(400 Hz. 0 dB)

Erasure .............. Better than 60 dB below saturation
level (1 kHz, ZX Tape)

Separation . . . ........ Better than 37 dB at 1 kHz. 0 dB

Crosstalk ............. Better than 60 dB at 1 kHz. 0 dB

Bias Frequency ........ 105 kHz

input ................. SOmV, 50k ohms

Output Level .......... 1V (400 Hz. 0 dB. Output Level at Max)

Headphone ........... 45mW

Dimensions ........... 500(W) x 130(H) x 350(H) millimeters
19-11i16(W) x 51 8(H) x tit-2532(0)
inches

Approximate Weight ..... 8.3 kg, 18 lb 5 oz

'Specilicalions and appearance subject to change without notice
'Dolby NR under license from Dolby Laboratories
The word DOLBY and the DoubleD symbol are trademarks of Dolby Laboratories

1-153 Suzukicho, Kodaira, Tokyo. Japan Phone: (0423) 42-1111
Telex: 2832610 (NAKAM J) Cable: NAKAMICHi KOKUBUNJI

1101 Colorado Avenue, Santa Monica. California 90401 Phone (213) 451-5901

New York Office' 220 Westbury Avenue, Carle Place. NY. 11514 Phone (516) 333-5440
Printed in Japan SVBOSBSOA
