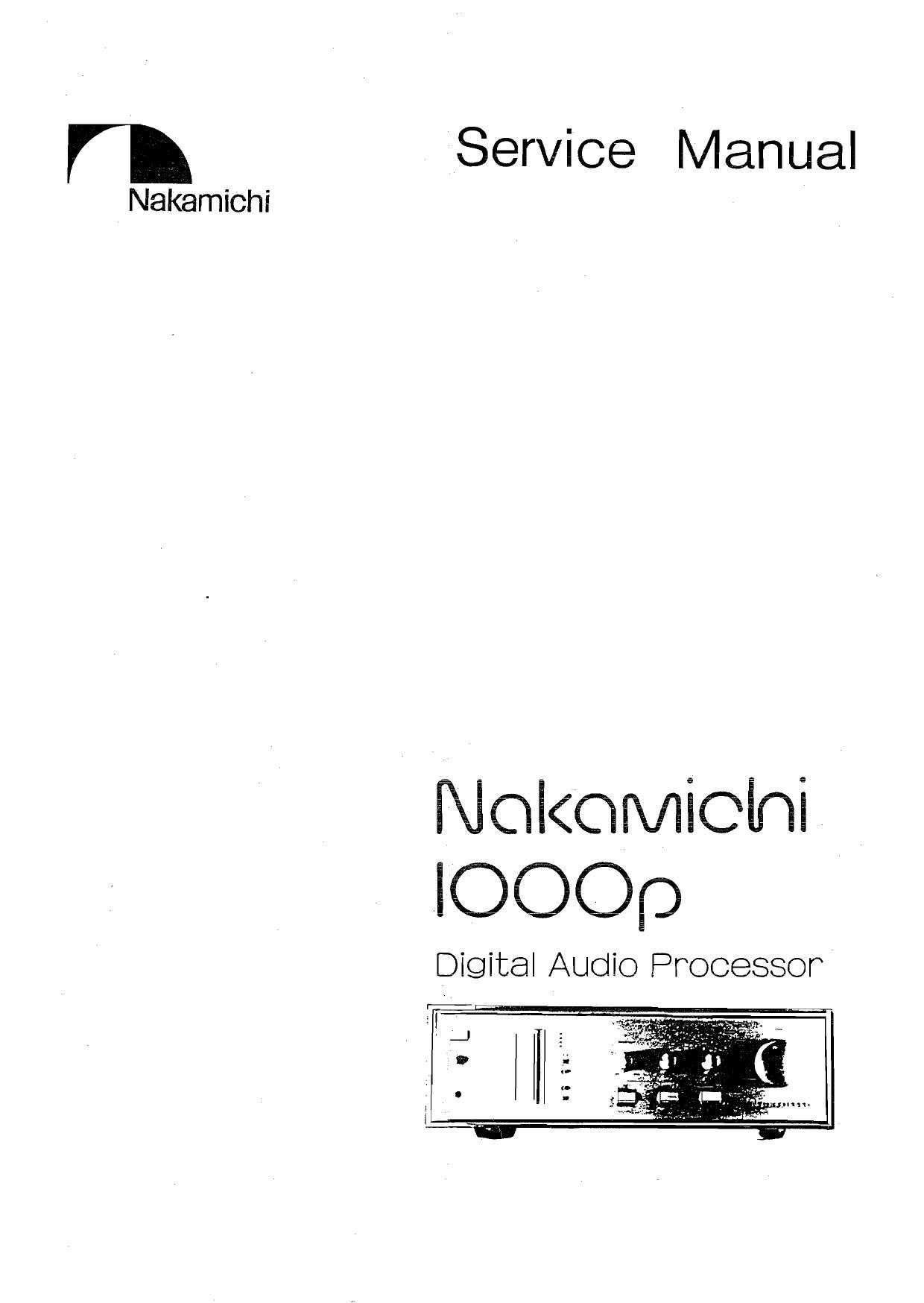

Nakamichi 1000 P Service Manual
This is the 53 pages manual for Nakamichi 1000 P Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nakamichi 1000 P Service Manual (Ocr-read)
Page 3
1. GENERAL
1 .1. CAUTIONS/WARNINGS
(1)
(2)
1.2.
1.3.
Product Safety Notice
Parts marked with the symbol in the schematic diagram have critical
characteristics.
Use ONLY replacement parts recommended by the manufacturer.
It is recommended that the unit be operated from a suitable DC supply or
batteries during initial check~out procedures.
Leakage Current Check/Resistance Check
Before returning the unit to the customer. make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the
leakage current exceeds 0.5 milliamp, or if the resistance from the
chassis to either side of the power cord is less than 240 K ohms, the unit
is defective.
WARNING - DO NOT return the unit to the customer until the problem is
located and corrected.
Destinations
USA - U.S.A.
CAN - Canada
EP - Europe
SWT - Switzerland
UK - United Kingdom
AUS - Australia
OTR - Other
JPN - Japan
Consumer Version/Professional Version
In the consumer version and professional version, some parts differ.
Parts for consumer version are indicated as [N-lOOOP] in the parts
list, and those for professional version are indicated as [N~1000P
Pro.].
