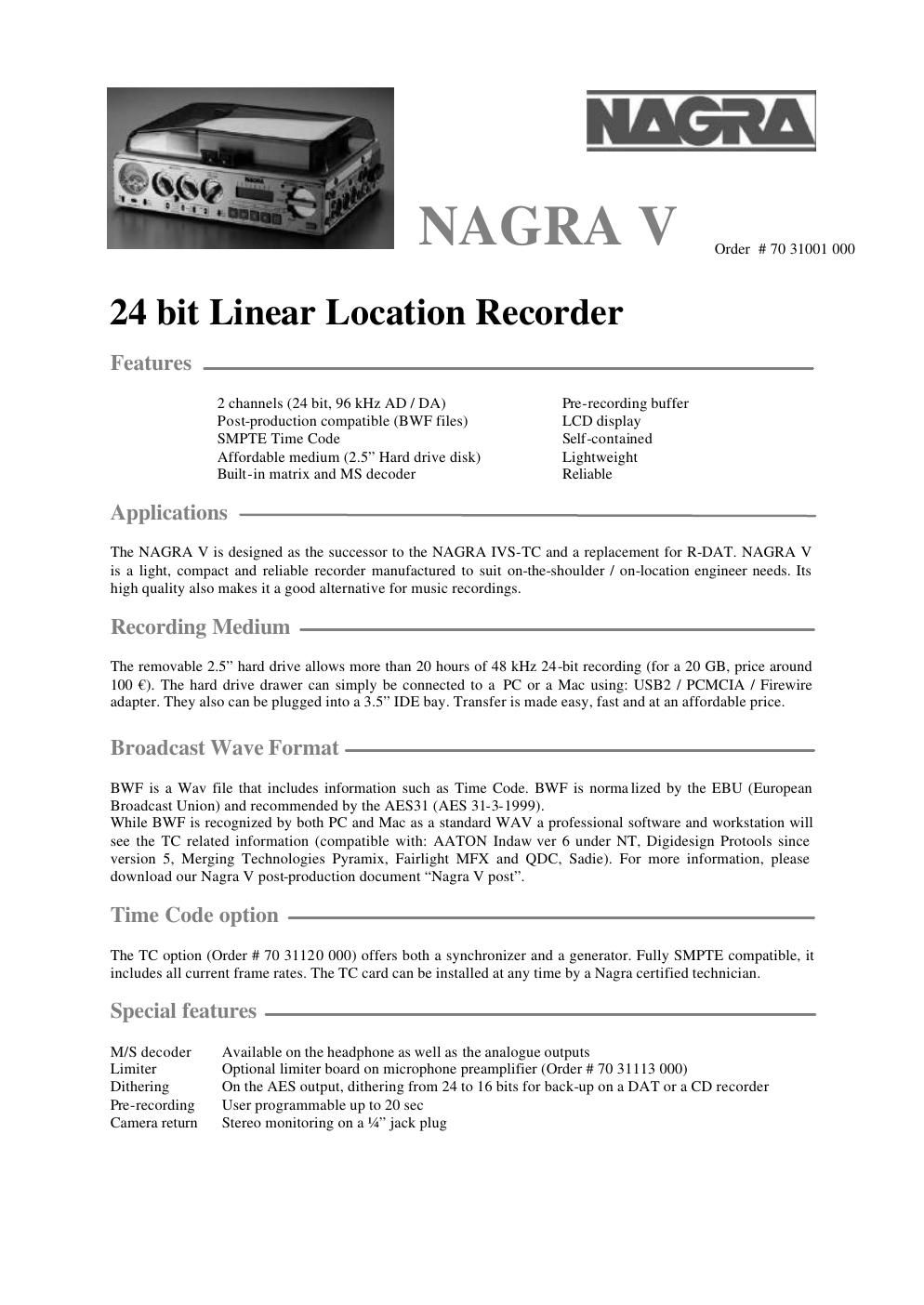

Specifications General Data storage medium 2.5 hard drive disk, Fat 16 / 32 formatted Recording format Linear PCM A/D and D/A conversion 24 bit Sigma-Delta Sampling frequency 44,1 – 96 kHz (optional 88,2 and 96 kHz Order # 70 31145 000)) File format BWF (Broadcast Wave Format) Filters LFA and SPEECH Inputs Mic inputs 2 x XLR (Dynamic, T Powering and +48V Phantom) Sensitivity 2, 10 and 40 mV/Pa Line input 15 pin SUB D connector Line input sensitivity 1.5V to 4.4V for 0 dB recording 0.44 V to 4.4 V for 0 dB recording Digital input Using special cable on 15 pin SUB D connector External reference 15 pin SUB D connector or BNC. (Word clock, video etc) Outputs Analogue line outputs 2 x XLR (4,4V max) THD at 1 kHz 0.1 % Frequency response 30 - 20 kHz (-3 dB in EE mode) 30Hz to 20 kHz (+0 dB -1 dB) at 48 kHz Total dynamic range Typical 98dB Headphone Stereo ¼ Jack Stereo with level adjustment Digital output AES 3 pin XLR Time Code In / Out 5 pin LEMO Power supply Li-ion pack 7 hours of operation (also works 5 hours on 8 D cells) DC Power 6 – 13,8 V on 4 pin XLRs Physical Dimensions 290 x 220 x 115mm (11.4 x 8.6 x 4.5) Weight 2.75 kg (6 lb) without battery box (3.5 kg with Li-ion battery / 7.6 lb) Quality control Every machine is tested: 1 cycle –10°C to + 60°C for 12 hours Humidity From 10% to 99% (non condensing) Optional accessories External accessories 70 19111 000 NA-BB8B Battery Box for 8 "D" cells 70 31110 000 NV-LIB Battery box with Lithium ion battery pack 65W 20 31150 000 NV-PSU Mains power supply for NAGRA V and charger for NV-LIB 20 99190 000 NA-SCC4 Soft carrying case for ARES-C with Li-ion battery box 20 99197 000 NA-SCCXL Extra large Soft carrying case for ARES-C with 8 cells battery box 70 31150 000 HD-20G Removable drawer equipped with a 20 GB IDE Toshiba hard disk 70 31152 000 HD-40G Removable drawer equipped with a 40 GB IDE Toshiba hard disk 70 31153 000 HD-60G Removable drawer equipped with a 40 GB IDE Toshiba hard disk 20 97937 000 HD-USB Adapter IDE drawer / USB2 20 97939 000 HD-FW Adapter IDE drawer / FireWire (IEEE 1394) 70 31100 000 NV-COM PC software for NAGRA V (Windows version) 70 10540 000 ND-PCA RS232 / 422 adapter for linking PC to NAGRA recorder Cables 20 95970 000 CXLR-FM 3-pin XLR Cable male-female 1.5 m (5 ft) 20 95974 000 C-LIN-FF Line input adapter (15-pin mini D 2 XLR 3-pin female 1.5m - 5 ft) 70 31114 000 NV-CDI Digital input adapter (15-pin mini D XLR 3-pin female 1.5m - 5 ft) Nagravision SA Route de Genève 22 1033 Cheseaux Switzerland Nagra Office Tel Fax + 41 21 732 01 01 + 41 21 732 02 12 audio@nagra.com www.nagra.com NAGRA V October 02Copyright Nagravision SA
