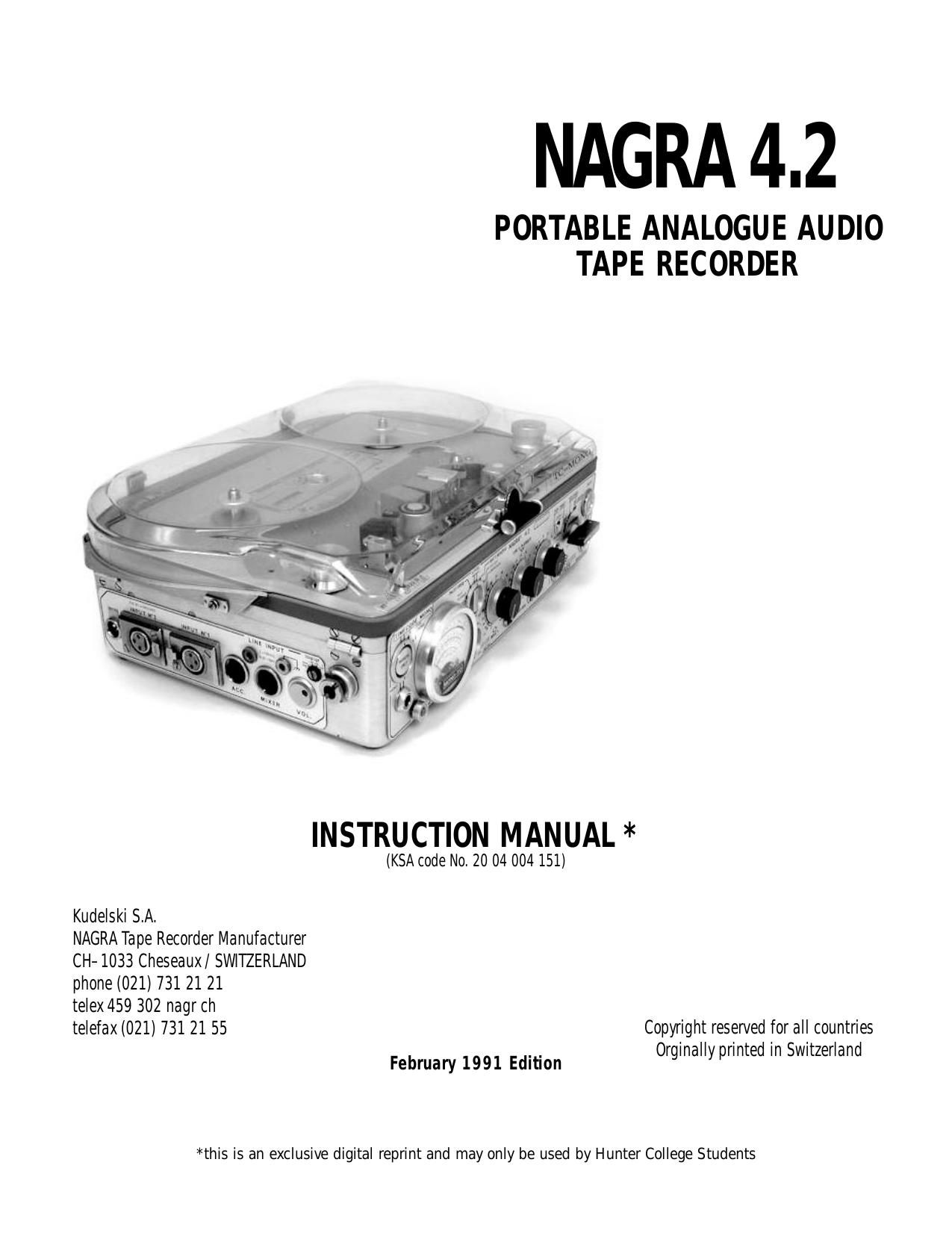

Nagra 4 2 Owners Manual
This is the 26 pages manual for Nagra 4 2 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nagra 4 2 Owners Manual (Ocr-read)
Page 1
1.1 INTRODUCTION The Nagra 4.2 was introduced originally in 1971. It is a portable 6.35 mm (1/4") mono analogue audio tape recorder designed for high quality recording having radio, cinema, and television applications. Many mechanical and electronic modifications have been made to the machine since its release, to adapt it according to modern day requirements. Despite all these modifications, the machine remains remarkably simi- lar to the original. The Nagra 4.2 can be delivered in two different versions both of which are available in either NAB or CCIR equal- ization. These versions are: NQÐLSP Non pilot NQSÐL Pilot Each version has three speeds: 38 cm/s. 19 cm/s and 9.5 cm/s (15, 7 1/2 and 3 3/4 ips) and has either the NAB or the CCIR standard. The Nagra 4.2 is a mono recorder recording full track audio on 6.35 mm tape, and the Neopilot synchronization system. The audio inputs may be used with either the two internal microphone preamplifiers (switchable between Dynamic, T power and Phantom power depending on the microphone preamplifier which is fitted) or as a line input, via the QCE cable. The Nagra 4.2 also contains a switchable limiter, a builtÐin loudspeaker, and an internal reference generator for line up, and calibration purposes. Optionally the machine may be fitted with the NEOPILOT pilot option. The machine may also be powered from either an external supply ATNÐ3 or internal batteries. The 4.2 may also be used with the QGB 10" real adaptor, to allow the use of larger reels for longer recording and playback.
Page 2
10 17 14 12 13 7 9 8 6 1 3 2 4 16 15 18 2523 24 21 26 27 28 29 20 30 11 31 5 34 22 32 33 19
