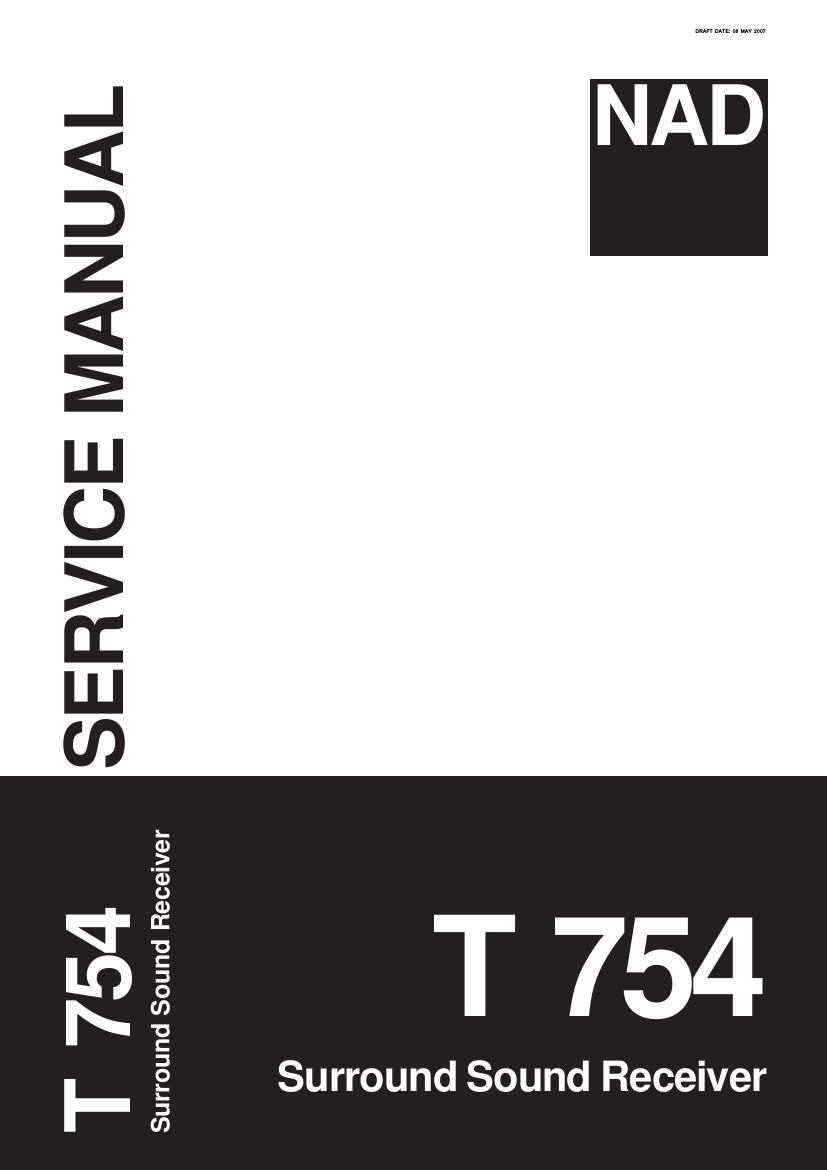

Nad T 754 Service Manual

Page 2

SAFETY INFORMATION

NAD, San CIIppIIIg. iner Dnve and EARS are Irademarks DINAD EIectmnICs
InlemaIIonal, 3 mm M Lenbmnk IndusIrIes LIVTIIIed
Coping!" 2003 NAB EIeclmnIc: INS/I'IGIIDHBL a dIVIsIDn 0/ Lem/00k MIXING: LImIled

Manufacmred under lIcense Irom DIgIIaI TheaIer Systems Inc. U 3 Fat
No's 5,A51.9A2I 5856,674: 59711380:5,378752;s,487 535 and other
U s and worId-wide paIems Issued and pendIng "msx DTS-ES and
"Neufi" are Irademarks o: DIgIIaI TheaIer Sysmms, Inc. CopyrIgm 1996,
2003 DIgIIaI TheaIer Systems Inc. AII ngms Reserved

(1 undo! IICcnsC IIom DaIby LabmanrIcs
m Lugic and me duubIEVD symhuI aIE
Ivademarks oI DnIby LaboranIies

MI: Iszz; cwmswu» WI IE m m In: mu
umwm 5 mm In m: mum/um Iwa comuum
III w: DEVICE w W muss mum Immzmcz
m ms mm mm mm Immune; REcEvEn
momma Immrmmc: mm m ms: woman» mww

/%
NAD ELECTRONICS INTERNATIONAL
533 GRANITE COURT, F'ICKERING 0N CANADALIW 3K1

MODEL T 753 AN SURROUND SOUND RECEIVER

POWER RATING 120V 60Hz SAN

CUSTOM MANUFACTURED To NAD SPECIFICATIONS
IN THE PEOPLES REPUBLIC OF CHINA

AH VERSION

(%
NAD ELECTRONICS INTERNATIONAL

MODEL T 753 AN SURROUND SOUND RECEIVER

POWER RATING 230V 50Hz SAN

CUSTOM MANUFACTURED TO NAD SPECIFICATIONS
IN THE PEOPLES REPUBLIC OF CHINA

C VERSION

CAUTION

RISK UF ELECTRIC SHOCK
DO NOT OPEN

WARNING:SHOCK HAZARD-DO NOT OPEN
AVIS:RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR

Page 56

EXPLODED VIEW PARTS LIST

ltgm Dagghfig Par; N9. D n I n 911
FAN DC 60X10mm 12V 0.09A 3000RPM DF126010SL L:450MM W/
1 08-00270065790 25p CONNECTOR 2
FAN DC 60X10mm 12V 0.09A 3000RPM DF126010SL L:350MM W/
2 08002006680 25p CONNECTOR 2
3 10005018890 TRANSFORMER PW EI-1 14 115V/230V T754 T06675A 1
4 25022138180 FAN GUARD 60mm DFG~60 4
5 17016007880 JUMPER PLUG PITCH 14mm 6
6 15-00470074790 AC SOCKET IEC 10A/25OV 1
7 15-00470078790 AC OUTLET 3 PINS US POLARIZED SSieB-17NY [FOR 120V VER.] 1
15-00470076790 AC OUTLET EURO CEE 7 2.5A/250V A302D0060P [FOR 230V VER.] 1
8 15016000180 AM/FM TUNER MODULE KST»MB114MAO-23 [FOR 120V VER.] 1
15016000290 AM/FM TUNER MODULE KST»MB114MA1-23 [FOR 230V VER.] 1
9 22003013890 SELF TAPPING SCREW 2X5 WASHER HEAD TYPE "B" NI PLT 8
10 22-00370139790 SELF TAPPING SCREW DIA2.6 X 5 P/H TYPE "A" NI PLT
11 2200370126300 SELF TAPPING SCREW D|A2.6 X 6 P/H TYPE "A" NI PLT
12 2200370145790 SELF TAPPING SCREW DIA2.6 X 8 B/H TYPE "A" NI PLT 14
13 25-014~0030»90 RUBBER FOOT I/D14 X O/D26 X 3 PORON HH748C 4
14 2200770081700 NUT M3 X 2.4mm 16
15 22-00770078700 NUT M4 X 3.2mm 0.7p 2
16 22-0077008290 NUT M5X3.4 NI PLT 4
17 2200770083-90 NUT ZINC PLATED M9.0 X 2.2mm 11p 1
18 2200370129700 TAPTITE SCREW 3 X 8 SMALL K/H TYPE "B" BLK PLT 2
19 220010383790 MACHINE SCREW M3 X 18 P/H NI PLT 16
20 22-00170367700 MACHINE SCREW M3 X 6 P/H NI PLT 17
21 2200170376790 MACHINE SCREW M3 X 6 P/H BLK 2
22 2200370149790 MACHINE SCREW M3.0 X 6.0 B/H TAP TYPE NICKEL PLT 20
23 2200370141790 TAPTITE SCREW 3 X 6 B/H TYPE "B" BLK
24 2200370142790 MACHINE SCREW M3 X 8 P/H NI PLT
25 2200370030700 SELF TAPPING SCREW D|A3 X 8 B/B ZINC PLD TAPTITE»TYPE 32
26 22-00170023700 MACHINE SCREW M3 X 8 B/H BLACK 2
27 2200370049700 TAPTITE SCREW DIA3 X 8 B/H TYPE "B" BLK PLT 54
28 22-003~O143~90 TAPTITE SCREW DIA3 X 10 P/H TYPE "B" BLK 7
29 22-001~0372»00 MACHINE SCREW M3 X 12 B/H NIPPLT 20
3O 22-0037014480 TAPTITE SCREW 3.5 X 8.0 B/H TYPE "B" NI PLT 5
31 22-00170379790 MACHINE SCREW M4 X 8 WASHER HEAD BLK 6
32 22-00370146790 TAPTITE SCREW DIA4 X 8 B/H BLK TYPEAB 4
33 2200370147790 TAPTITE SCREW 4 X 8 C/H TYPE B BLK 6
34 22-001~0384~90 MACHINE SCREW M4 X 14 WAHER HEAD BLK 1
35 22-001~0380»90 HEX HEAD SCREW M5 X 12 Nl PLT 4
36 25-00670043790 PCB SUPPORTER "KSS" (H:9.6mm PCB HOLE 4mm) CS~061O 3
37 2200870024700 INTERNAL TOOTH WASHER M3 X 0.4mm 5
38 22-005003200 WASHER SPRING VB 3.2 X O/D 5.6 0.9mm THK 35

56
