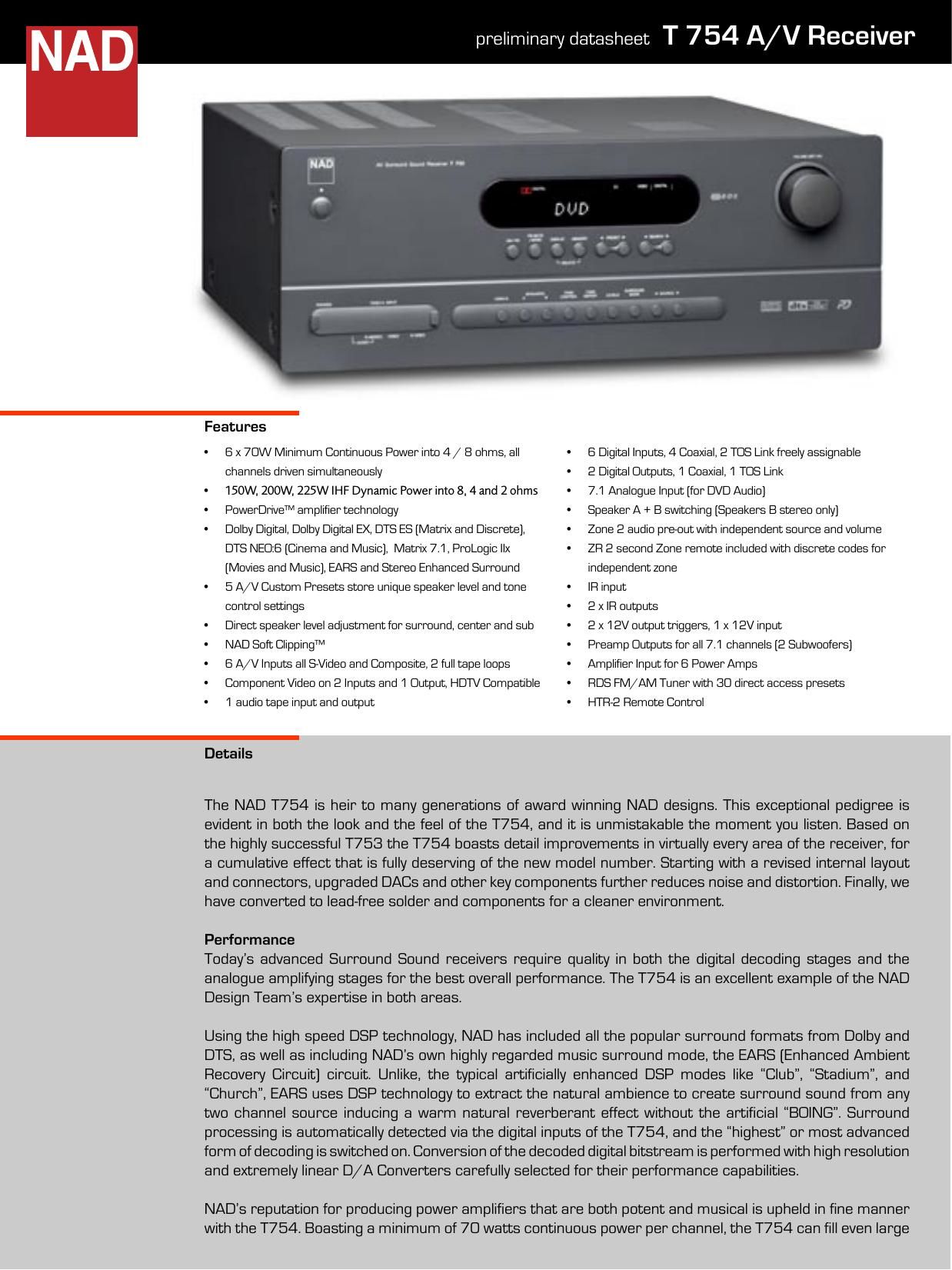

Page 1
rooms to lifelike sound levels. With NADs typical attention to detail in the all important power supply design, the T754 can easily meet its power spec with all channels operating simultaneously. NADs exclusive PowerDrive™ amplifier technology automatically adjusts the power supply settings of the amplifier to the needs of the loudspeaker. This ensures remarkably dynamic and distortion-free performance with any type of loudspeaker, even demanding 4 ohm designs. Many less advanced receivers resort to performance robbing protection resistors to allow the use of 4 ohm speakers. With PowerDrive, the performance is always optimized for the actual operating condition and as a result the amplifier exhibits very low distortion and excellent current drive in the real world. Credit for the sound of NADs components rests squarely with our unique design approach and our experienced and very talented design team. Most companies design their products to a technical specification and a price point. While this sounds logical enough, it does not address the way the product will actually be used by the eventual owner. You dont listen to specifications, you listen to music and sound. While NAD products exhibit excellent technical measurements, we have relied on our own ears and listening experience to determine the final design of our products. Because of our unique design approach , NADs sound is simply more real sounding, adding enjoyment and excitement to your favourite films and music recordings. Flexibility The T754 has all the flexibility required to serve as the command center for even the most sophisticated Home Theatre systems. A full suite of video switching caters to all the popular video formats (Component Video, S-Video, and Composite Video). Digital inputs and outputs are available in both coaxial and optical formats to make it easy to attach all your digital sources for playback and recording. With the T754, NAD has made it easy to add more speakers for listening to music in additional rooms or zones. A second pair of speakers can simply be added to the front channel amplifiers and switched on or off from the remote control or front panel switch. More elaborate systems can also be created using the Zone 2 output to add additional amplifiers and speakers with the added benefit of independent source selection and volume control. A separate second zone remote is included. There are also 12 volt triggers to automatically switch remote zone amplifiers on and off. Thoughtful features like discrete On and Off codes, direct access to inputs and FM station presets facilitates the integration of the T754 into elaborate remote control systems. An analogue 7.1 input is also provided for attaching a DVD-Audio player or any other yet to be developed surround decoder, making sure the T754 does not become obsolete anytime soon. Preamp outputs and main amp inputs, a long standing NAD feature, allow the addition of more powerful amplifier channels and/or the reconfiguring of amplifier channels. (for example adding a more powerful external amplifier to the front channels, and using the onboard front channel amp or back surround channels amps to power a second music zone from the Multi-Source output.) Luxurious Simplicity All the capability and flexibility in the world is quite useless if the receiver becomes too complicated to be operated by every member of the family. NAD has taken special measures to make operation of the T754 as logical and straightforward as possible. Initial system setup is best accomplished using your television monitor and the clear and simple On Screen Display (OSD), which can be configured to also give status updates as settings are changed in everyday use. Once the T754 is informed of your specific system set-up, all settings are stored in a non-volatile memory making this a one time task. The front panel display indicates complete information about the source being listened to or watched including selected surround mode and volume setting. The FM tuner includes 30 favorite station presets that can be custom named, or if the station supports the Radio Data System (RDS), it will automatically stream information about the station and music being played. Five independent A/V Presets can store speaker level and tone control settings for instant recall, making it easy to custom tailor your system for different types of program material. Encoded surround modes like Dolby Digital and DTS are automatically selected if the program is so encoded. The T754 also remembers your last used settings when switched in and out of Standby mode. The included HTR-2 remote handset is a model type that is replacing the typical remotes found for TVs, VCRs DVD players etc... . It has illuminated buttons for easy operation in low light environments. Remote commands for products not already included in the HTR- 2s memory can be easily taught to the HTR-2. And the HTR- 2s Macro function allows up to eight individual commands to be triggered by the pressing just two keys. With this feature, all of the commands required for watching a DVD, for example, are executed automatically by the HTR-2s Macro function. Summary The T754 offers remarkable performance and flexibility in a compact and simple to operate package. This multi-channel powerhouse will bring your favorite music and movies to life in your home entertainment room with an absolute minimum of fuss and a maximum of pure enjoyment.
Page 2
SPECIFICATIONS Amplifier Section Power output Stereo Mode(8Ω within rated distortion) IHF dynamic power; 8Ω IHF dynamic power; 4Ω IHF dynamic power; 2Ω Simultaneous power output surround mode Total harmonic distortion at rated power IM distortion at rated power Damping factor 8Ω Input sensitivity and impedance Frequency response Signal/noise ratio; ref rated power 8Ω Signal/noise ratio; ref 1W / 8Ω Remote Control Tuner Section Input sensitivity Mono 50dB Stereo: 90W (19.5dBW) 2 x 150W (21.7dBW) 2 x 200W (23dBW) 2 x 225W (23.5dBW) 6 x 70W (18.45dBW) 0.05% 0.05% 60 400mV / 50kΩ 20Hz-20kHz +/- 0.8dB >90dB >80dB HTR2 16.1dBf 36.1dBf Harmonic Distortion; FM Mono Harmonic Distortion; FM Stereo Signal/noise; Mono Signal/noise; Stereo Stereo separation at 1kHz Frequency response; + 1.5dB Video Section Input and output impedance Component Video Bandwidth Physical Specifications Dimensions (W x H x D)* Net Weight Shipping Weight 0.25% 0.5% 60dB 55dB 40dB 30Hz - 15kHz 75Ω 50MHz 17 1/8 x 6 3/4 x 16 1/2 (435 x170x 420mm) 45.1lbs (20.5kg) 48.5lbs (22.1kg) * Dimensions are of units cabinets without feet attached; add up to 18mm for total height. Dimension depth excludes terminals, sockets, controls and buttons.
