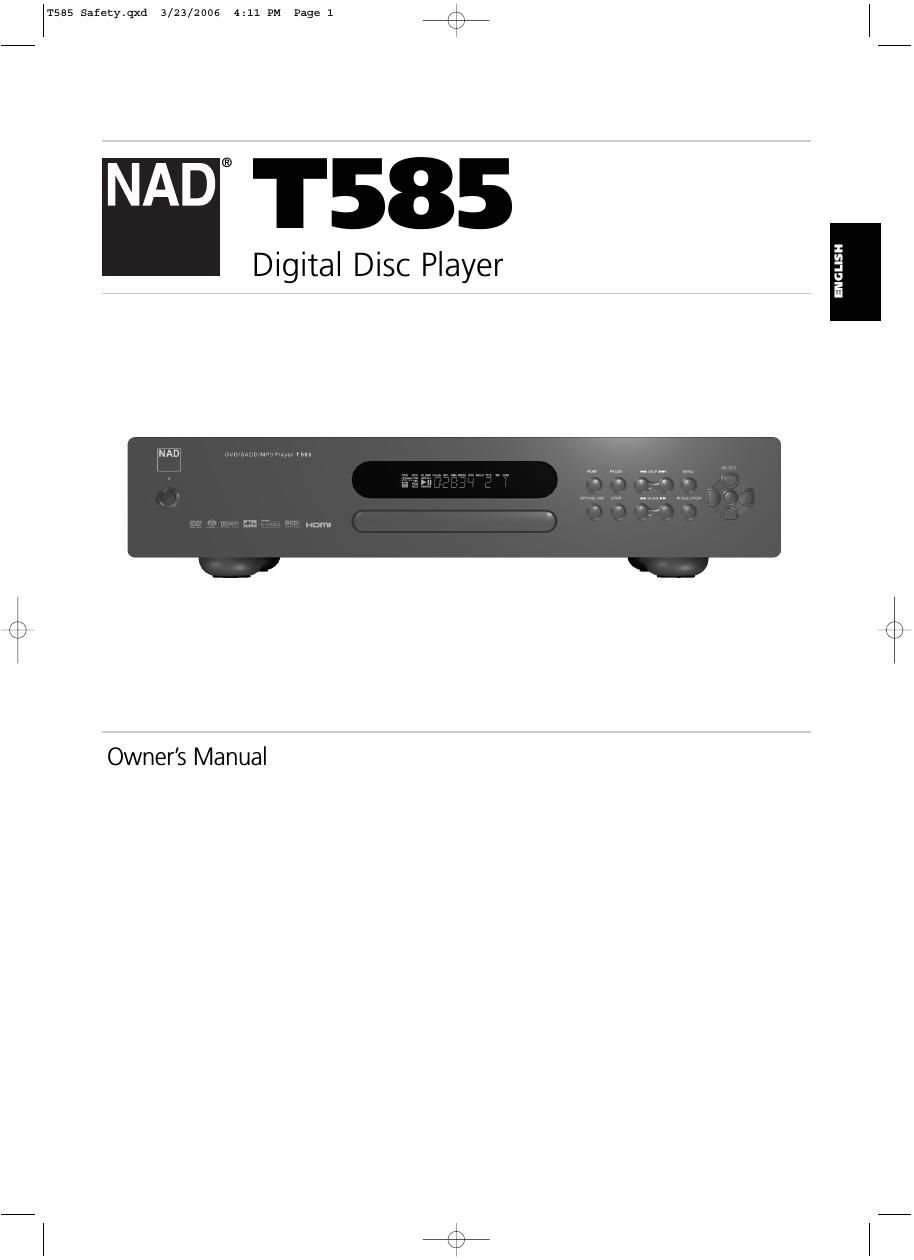

Nad T 585 Owners Manual 2
This is the 40 pages manual for Nad T 585 Owners Manual 2.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nad T 585 Owners Manual 2 (Ocr-read)
Page 1
2 Introduction ENGLISH FRANÇAISDEUTSCHNEDERLANDS ESPAÑOLITALIANO PORTUGUÊS SVENSKA IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Save these instructions for later use. Follow all warnings and instructions marked on the audio equipment. 1 Read instructions - All the safety and operating instructions should be read before the product is operated. 2 Retain instructions - The safety and operating instructions should be retained for future reference. 3 Heed Warnings - All warnings on the product and in the operating instructions should be adhered to. 4 Follow Instructions - All operating and use instructions should be followed. 5 Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 6 Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards. 7 Water and Moisture - Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like\ . 8 Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the pr\ oduct. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturers instructions, and should use a mounting accessory recommended by the manufacturer. 9 A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 10 Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unle\ ss proper ventilation is provided or the manufacturers instructions have been adhered to. 11 Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. Main Power Disconnect; When the power switch is in the Off position, the T585 is not completely disconnected from the main power. The primary method of isolating the T585 from the mains supply is to disconnect the mains plug. Ensure that the mains plug remains accessible at all times. When installing the product, ensure that the plug is easily accessible. Non-use Period; Unplug the AC power cord from the AC outlet if the unit will not be used for a long period of time such as several months or more. CLASS 1 Products; The T585 shall be connected to a MAINSsocket outlet with a protective earthing connection. 12 Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attentio\ n to cords at plugs, convenience receptacles, and the point where they exit from the product. 13 Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to gr\ ounding electrodes, and requirements for the grounding electrode. NOTE TO CATV SYSTEM INSTALLER This reminder is provided to call the CATV system installers attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable \ entry as practical. 14 Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. 15 Power Lines - An outside antenna system should not be located in the vicinity of ove\ rhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. 16 Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 17 Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. WARNING18 Transportation - Transport the T585 in the shipping containers supplied. Do not transport the T585 using one shipping container; to do so may result in damage to either the T585 or personnel. T585 Safety.qxd 3/23/2006 4:11 PM Page 2
Page 2
3 Introduction ENGLISH FRANÇAIS DEUTSCH NEDERLANDS ESPAÑOL ITALIANO PORTUGUÊS SVENSKA IMPORTANT SAFETY INSTRUCTIONS 19 Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a)When the power-supply cord or plug is damaged. b) If liquid has been spilled, or objects have fallen into the product. c) If the product has been exposed to rain or water. d) If the product does not operate normally by following the operating instructions.\ Adjust only those controls that are covered b y the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. e) If the product has been dropped or damaged in any way. f) when the product exhibits a distinct change in performance-this indicates a need fo\ r service. 20 Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized \ substitutions may result in fire, electri c shock, or other hazards. 21 Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. 22 Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended by the manufacturer. WARNING TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR\ MOISTURE. THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED DANGEROUS VOLTAGE WITHIN THE PRODUCTS ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS. THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE CAUTION Changes or modifications to this equipment not expressly approved by NAD Electronics for compliance could void the users autho rity to operate this equipment. CAUTION REGARDING PLACEMENT To maintain proper ventilation, be sure to leave a space around the unit (from the largest outer dimensions including projectio ns) equal to, or greater than, shown below. Left and Right Panels : 10 cm Rear Panel : 10 cm Top Panel : 50 cm IMPORTANT INFORMATION FOR UK CUSTOMERS DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power poin\ ts in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer. If, none theless, the mains plug is cut off, REMOVE THE FUSE and dispose of the PLUG immediately, to avoid possible shock hazard by inadvertent connection to the mains supply. If this product is not provided with a mains plug, or one has to be fitted, then follow the ins tructions given below: IMPORTANT DO NOT make any connection to the larger terminal which is marked with the lett\ er E or by the safety earth symbol or coloured GREEN or GREEN AND YELLOW. The wires in the mains lead on this product are coloured in accordance with the following code: BLUE - NEUTRAL BROWN - LIVE As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The BLUE wire must be connected to the terminal marked with the letter N or \ coloured BLACK. The BROWN wire must be connected to the terminal marked with the letter L or coloured RED When replacing the fuse, only a correctly rated and approved type should be used, and be sure to re-fit the fuse cover. IF IN DOUBT CONSULT A COMPETENT ELECTRICIAN This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 89/68/EEC and 73/23/EEC NOTES ON ENVIRONMENTAL PROTECTION At the end of its useful life, this product must not be disposed of with regular household waste but must be returned to a coll ection point for the recycling of electrical and electronic equipment. The symbol on the product, user's manual and packaging, point t his out. The materials can be reused in accordance with their markings. Through re-use, recycling of raw materials, or other forms of re cycling of old products, you are making an important contribution to the protection of our environment. Your local administrative offi ce can advise you of the responsible waste disposal point. Model No. :________________________Serial No. :_________________ T585 Safety.qxd 3/23/2006 4:11 PM Page 3
