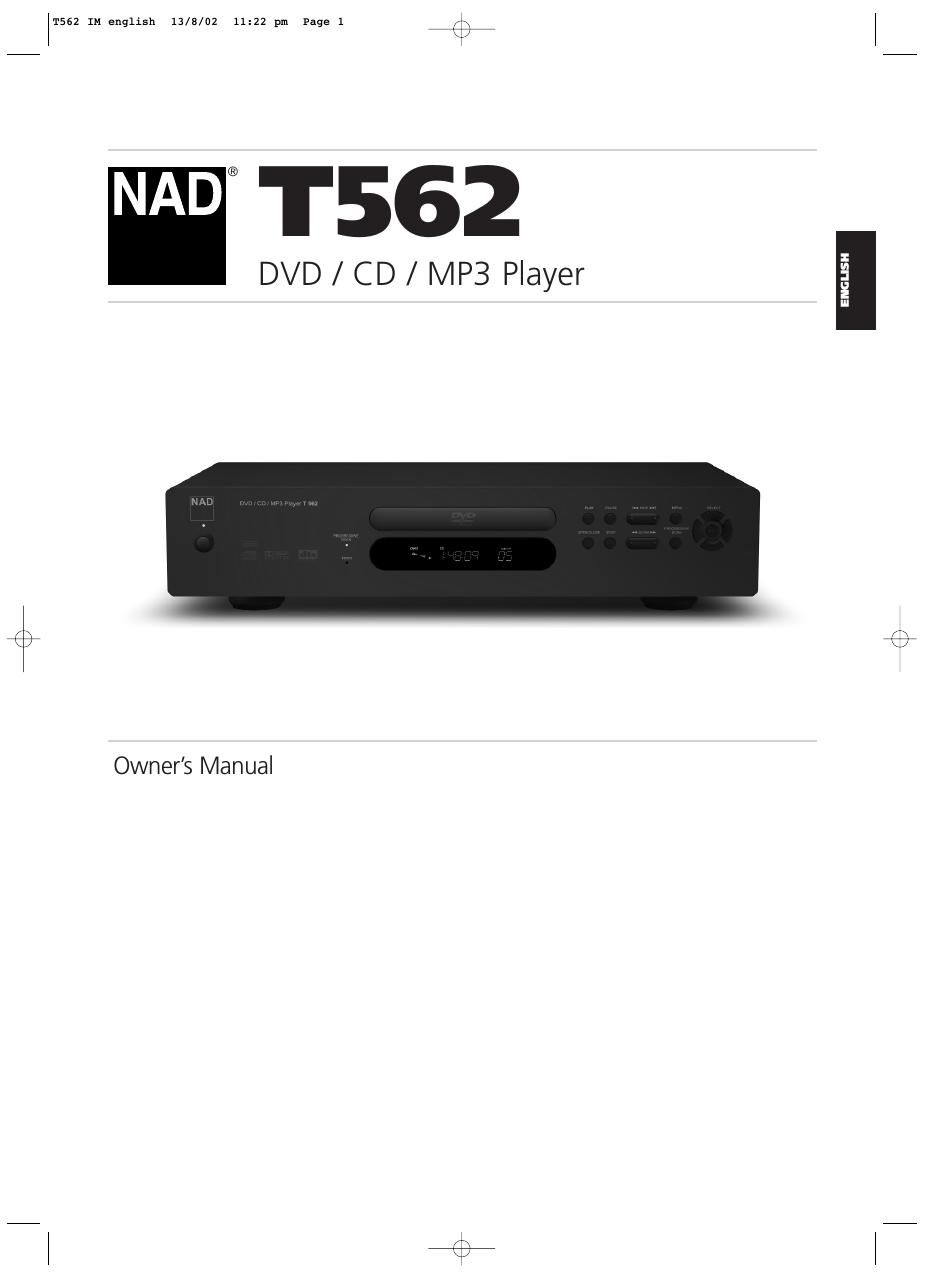

Nad T 562 Owners Manual
This is the 34 pages manual for Nad T 562 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nad T 562 Owners Manual (Ocr-read)
Page 1
2 WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE CAUTION THIS DVD PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS OWNERS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION. USE OF CONTROLS, ADJUSTMENTS TO MODIFY PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION EXISTS WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM. THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USERS AUTHORITY TO OPERATE THE EQUIPMENT. NOTE T562 is not an auto voltage DVD player. Connect only to the prescribed AC outlet, i.e., 120V 60Hz or 230V 50Hz. RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT) The model and serial number of your new DVD player are located on the back of the DVD player cabinet. For your future convenience, we suggest that you record these numbers here: MODEL NO.____________________________ SERIAL NO.____________________________ SAFETY PRECAUTIONS Introduction ENGLISHFRANÇAIS DEUTSCH NEDERLANDSESPAÑOLITALIANO PORTUGUÊSSVENSKA NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited Copyright 2002, NAD Electronics International, a division of Lenbrook Industries Limited T562 IM english 23/7/02 9:42 am Page 2
Page 2
3 INTRODUCTION Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . . . . . . . . . .2 IDENTIFICATION OF CONTROLS Front Panel/Display window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . .4 Rear Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Preparing The Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . .7 Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Operation Of The T562 With The Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 OPERATION Operation of the T562 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . 10 Special Playback . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . .11-12 Screen Save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Automatic Power Off Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . 1 1 Stopping Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Resume Play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Still Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Frame Advance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Skipping chapters and tracks. . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Scanning at High Speed . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Playing in Slow-Motion. . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 OSD Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . . . . . . . . . . . .13 Display/Titles/Menus/Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . 13 V iewing From Another Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . .1 4 Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Storing Markers in Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . .15 Zoom Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Random Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Program Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Playback Audio with CD, VCD, and DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . .17 Playback with MP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . . . . . . . . .17 SETUP Connecting to Surround Sound System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . .18-21 Dolby Digital Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . 18 Dolby Pro Logic Surround Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . 1 9 2-Channel Digital Stereo Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . 2 0 DTS Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Connecting to an Analogue Stereo System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . .22 Connecting to a TV Directly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . .23 Initial Setup Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . . . . .24-26 Selecting Languages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . 24 Selecting Video Display Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . 25 Selecting Scan Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . 25 Selecting Signal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . 26 Selecting Gamma Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . 26 Selecting Audio . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . 26 REFERENCE Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Table of Languages and Their Abbreviations . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . . . . . . . . .29 Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31\ Copyright Information/Macrovision Product Notice . . . . . . . . . . . .\ . . . . . . . . . . . . . . . . . . . . .32 T ABLE OF CONTENTS Introduction ENGLISH FRANÇAIS DEUTSCH NEDERLANDS ESPAÑOL ITALIANO PORTUGUÊS SVENSKA T562 IM english 23/7/02 9:42 am Page 3
Page 5
ENGLISHFRANÇAIS DEUTSCHNEDERLANDS ESPAÑOLITALIANO PORTUGUÊS SVENSKA 6 1 DIGITAL OUT COAX Jack 2 DIGITAL OUT OPTICAL (With Dust Protection Cap) Jack 3 MIXED AUDIO OUT (L & R) Jacks 4 S-VIDEO OUT Jack 5 Composite VIDEO OUT Jack 6 COMPONENT VIDEO OUT Jacks 7 VIDEO OUTPUT S-VIDEO-SCART/RGB Switch 8 SCART/RGB OUT Jack 9 12V TRIGGER IN jack 10 AUTO TRIGGER ON-OFF Switch 11 EXT. IR IN Jack 12 Power cord socket NOTE Remove the dust protection cap from the connector and connect the optica\ l digital cable (not supplied) firmly so that the confi gurations of both the cable and the connector match. Keep the dust protection cap and alwa\ ys reattach the cap when not using the connector to pro tect against dust. NOTE The 12V TRIGGER IN jack is a 3.5mm monotype miniature phone jack with th\ e centre pin the 12V signal-sense. We recommend that yo u use a good quality cable with shield when attaching the 3.5mm monotype plug so\ as to prevent false triggering of the amplifier due to electro-magnetic interference from nearby electronic equipment. The 12V-IN TRIGGER allows you to have an external 12V signal to turn ON the NAD\ T562 from standby. This 12V signal must be a continuous 12V signal in order to keep the T\ 562 in the ON state. Once you remove the 12V sig nal the T562 will return to standby. Check the specifications of the trigger input terminal the other compo\ nents to ensure these are compati ble with the T562. All 12V-TRIGGER inputs and outputs on other NAD components with a 12V-TRIGGER feature are fully compatible with the NAD T562s 12V- TRIGGER IN. Before making any connections to any 12V-TRIGGER IN make sure all components are disconnected from the AC mains.\ If in doubt over the connections, installation and/or operation of the 12V-TRIGGER IN connection, consult your NAD dealer or sales represen tative. Failure to observe the above may result in damage to the NAD T562 and/or any ancillary components attached to it. NOTE The EXT. IR IN jack is connected to the output of an IR (infrared) repeater (\ Xantech or similar), or the IR output of another c omponent to allow control of the T562 from a remote location. Ask your dealer or custom in\ staller for further details REAR PANEL (EUROPEAN VERSION) T562 IM english 23/7/02 9:42 am Page 6 Identification of Controls
Page 9
10 When you want to play back DVD videodiscs, turn on the TV and select the video input source connected to the DVD player. When you want to enjoy the sound of DVD videodiscs or audio CDs from the audio system, turn on the audio system and select the input source connected to the DVD player. Set the playback picture size according to the aspect ratio of the connected TV in the Setup and Video OSD menus. Press POWER. The 562-power indicator turns red, then amber and finally green. Press OPEN/CLOSE. The disc tray opens. -You can open the disc tray by pressing this button even if the DVD player is in standby mode. The power indicator will turn from amber to green. Place a disc on the disc tray with the playback side down. -There are two different disc sizes. Place the disc in the correct guide on the disc tray. If the disc is out of the guide, it may damage the disc and cause the T562 to malfunction. Press PLAY. The disc tray is automatically closed and playback begins. -If the disc is placed in upside down (and it is a single sided disc), - - - will appear on the T562s display and NO DISC appears on the TV screen. -If you insert an audio CD, the total tracks and time will appear. -After playing back all of the chapters in the title, T562 automatically stops and returns to the menu screen. Press the navigation keys then and press ENTER, or press the numeric button(s), to select the desired item. Play of the selected item now begins. -For further information, also refer to the jacket or case of the disc you are playing. AFTER OPERATION When the unit is not in use, remove the disc and press the POWER OFF button on the remote to switch the T562 to standby. If the T562 is left unattended for any length of time such as during a vacation, then switch off the T562 by depressing the green power button found on the left front of the T562. NOTES -Do not move the DVD player during playback. Doing so may damage the disc and the T562. -Use the OPEN/CLOSE button on the remote control or T562 to open and close the disc tray. -Do not push the disc tray while it is moving. Doing so may cause the T562 to malfunction. -Do not push up the disc tray or put any objects other than discs on the disc tray. Doing so may cause the T562 to malfunction. -Keep your fingers well clear of the disc tray as it is closing. Be especially careful with childrens fingers around the closing disc tray, as there is a risk of personal injury. -Depending on the DVD disc, some operations may be different or restricted. Refer to the jacket or case of the disc you are playing. -Do not switch the S-Video switch on the back of the T562 when the T562 is in the ON position. Doing so may result in poor picture quality. OPERATION OF THE T562 Operation ENGLISHFRANÇAIS DEUTSCH NEDERLANDSESPAÑOLITALIANO PORTUGUÊSSVENSKA T562 IM english 23/7/02 9:42 am Page 10
Page 22
23 ENGLISH FRANÇAIS DEUTSCH NEDERLANDS ESPAÑOL ITALIANO PORTUGUÊS SVENSKA NOTE The switch labeled VIDEO OUTPUT S-VIDEO-SCART/RGB is used to select between one of two outputs, the S-VIDEO and the \ 21-pin SCAR T/RGB. If one intends to connect to the S-VIDEO then slide the switch to S-VIDE\ O; if to the 21-pin SCART/RGB, then slide the switch to the SCART/RGB position. A 75-Ohm video and audio cables are supplied with the T562. SCART and S-Video cables can be purchased from your local NAD retai ler. WARNING Do not set the Digital Audio Output of this DVD player to Analogue Off u\ nless you are connecting the DIGITAL OUT jack of this D VD player to a TV that is equipped with an AV decoder that has the Dolby Digital decoding function. High volume soun\ d may damage your hearing as well as the speakers. (Refer to Initial Setup Settings, Audio) NOTES - Switch the power off on the T562 before switching the SCART/S-VIDEO switch position. - Refer to the owners manual of your receiver as well. - Before you connect the T562 to other equipment, be sure to turn off the \ power and unplug all of the equipment from the wall ou tlet before making any connections. - Depending on your Digital sound decoder, the decode rate may be 96 or 48K. - The output sound of the T562 has a wide dynamic range. Be sure to adjust\ the receivers volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound. -T urn off the receiver before you connect or disconnect the T562s power cord. If you leave the receiver power on, the speakers may be damaged. S-VIDEO of the T562 to the S-Video of the TV Composite VIDEO OUT Jack of the T562 to the composite video of the TV SCART/RGB OUT Jack of the T562 (EURO version) to the 21- pin SCART of the TV COMPONENT VIDEO OUT Jacks of the T562 to the component video of the TV TV or monitor with audio/video inputs T562 IM english 23/7/02 9:43 am Page 23 CONNECTING TO A TV DIRECTLY Setup
Page 26
27 This section shows you how to handle, clean and store discs. ON HANDLING DISCS -Do not touch the playback side of the disc. -Do not attach paper or tape to discs. To do so may cause the discs to jam inside the machine ON CLEANING DISCS -Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outward with a soft cloth. Always keep the disc clean. -If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth wiping from the centre outward, not in a spiral rotation. -Do not use any type of solvents such as thinner, benzene, commercially available cleaners or anti- static spray for vinyl LPs. They may damage the disc. -The T562s OSD may display ERROR: DISC MINOR - CLEAN ME. If it does, clean the disc as mentioned above. ON STORING DISCS -Do not store discs in a place subject to direct sunlight or near heat sources. -Do not store discs in places subject to moisture and dust such as a bathroom or near a humidifier. -Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause warping. ABOUT THIS OWNERS MANUAL This owners manual explains the basic instructions of this T562. Some DVD/VCD/CD media have functions that may not be explained in this owners manual. Therefore, some instructions may differ from the T562 owners manual, and there may be extra instructions. In this case, follow the instructions displayed on the media package or displayed on the OSD during operation. The following responses means the function explained in this owners manual is not available on that specific media being played. NOTE Refer to the owners manual of your audio equipment as well. When you connect the T562 to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections. The output sound of the T562 has a wide dynamic range. Be sure to adjust the receivers volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound. Turn off the receiver before you connect or disconnect the T562s power cord. If you leave the receiver power on, the speakers may be damaged. NOTES ON DISCSReference ENGLISH FRANÇAIS DEUTSCH NEDERLANDS ESPAÑOL ITALIANO PORTUGUÊS SVENSKA T562 IM english 23/7/02 9:43 am Page 27
