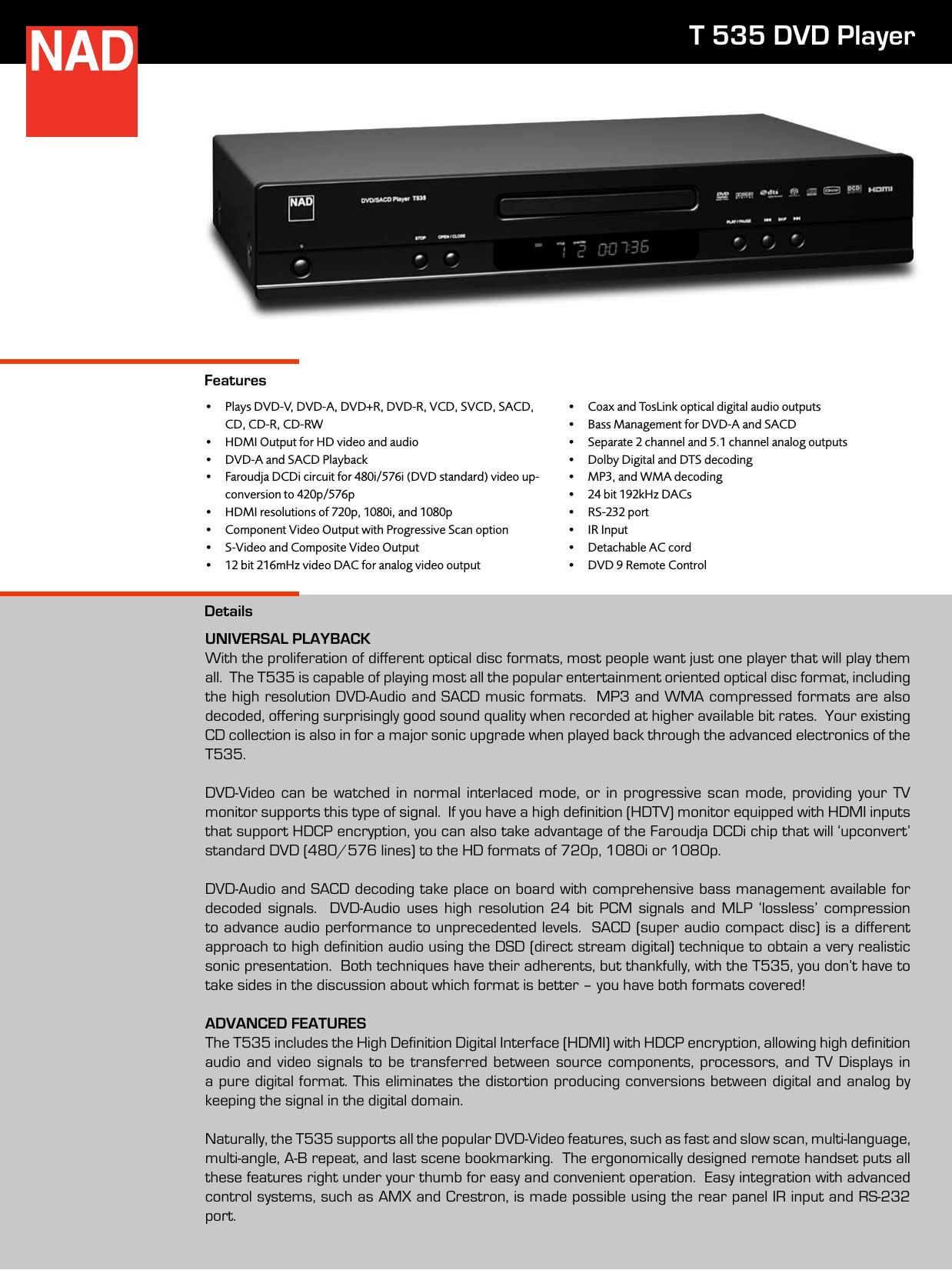

Nad T 535 Brochure

Page 1

AUDIO PERFORMANCE Digital audio outputs are available in both coaxial, and optical (TosLink) SPDIF formats, as well as I/2 S digital format via the HDMI output. DVD-Audio uses the Dolby licensed MLP lossless compression to produce PCM formatted high resolution signals with 24 bits and up to 192kHz sample rates. MLP perfectly shrinks the very high data rates of DVD-Audio – up to 13.8 Mbps – to the DVD limit of 9.6 Mbps without losing any data. This compares with data rates of approximately 1.5 Mbps for CD, and as little as 0.03 Mbps for MP3 encoded audio. Dolby Digital and Dolby ProLogic decoding is also included, as is support for MP3 and Windows Media Audio. The NAD T535 uses audiophile quality 24-bit, 192-kHz audio D/A converters. These devices are well protected from noise caused by even minute fluctuations in current from the power supply. The level of quantization noise within the frequency range is uniform for all frequencies and very well suppressed. This D/A converter ensures that all the sound you hear is as clear and noise-free as possible. High speed FET output devices keep all the detail present in high resolution SACD and DVD-Audio formats, perfectly intact. VIDEO PERFORMANCE The T535 features a Dual Discrete Video Circuit (D.D.V.C.) for the highest possible picture quality via the Component Video output. An extremely high-speed video D/A converter is a very critical component in generating superior quality video playback from DVD. The NAD T535, therefore, uses the highest quality 12-bit, 216- MHz video D/A converters to ensure highly accurate playback of deli¬cate, low-level video signals. This produces a vivid picture that is faithful in every detail. Over sampling of 4x is achieved for Progressive and 8x for interlaced video signals, allowing more detailed D/A conversion. Higher quality picture reproduction is also possible thanks to a filter with flexible shutout characteristics that is used for the analog filter in the latter stage. Progressive Scan features the DCDi processor by Faroudja. Progressive Scan technology represents a vast improvement over the interlaced scanning method used in normal TV broadcasts and other conven¬tional applications, as it can process around twice as much video data to produce a sharper, noise-free picture with finer details. Video images are faithfully displayed with optimum naturalness and beauty. NAD Electronics International reserves the right to change specifications or features without notice. NAD is a registered trademark of NAD Electronics International. All rights reserved. No part of this publication may be reproduced, stored, or transmitted in any form whatsoever without the written permission of NAD Electronics International. © 01/07 NAD Electronics International. www.NADelectronics.com SPECIFICATIONS Video Section Signal system Disc played Composite video output S-Video output Component Video Output HDMI output SCART output Audio Section Analog stereo outputs Analog multi channel outputs Digital Optical output Digital Coaxial output Signal-to-noise-ratio Dynamic range General Power supply Power consumption Dimensions (W x H x D) Net Weight Shipping Weight NTSC/PAL selectable DVD-A, DVD-V, DVD-R/RW, SACD, VCD, CD, CD-R/RW, Picture CD 1 Vp-p (75 ohms load) Y; 1 Vp-p (75 ohms load), C; 0.286 Vp-p (NTSC) Y, Cb/Pb, Cr/Pr: Y; 1.0 Vp-p (75 ohms load), Cb/Pb; 0.648 Vp-p (75 ohms load), Cr/Pr; 0.648 Vp-p (75 ohms load) Yes / 1 Yes / 1 (240V only) Yes / 1 Yes / 1 Yes / 1 Yes / 190dB 110dB AC 120V, 60Hz / AC 230V, 50Hz 25W 428.5 x 73 x 300mm (16.9 x 2.9 x 11.8) 8.6 lbs (3.9kg) 12.8 lbs (5.8kg)
