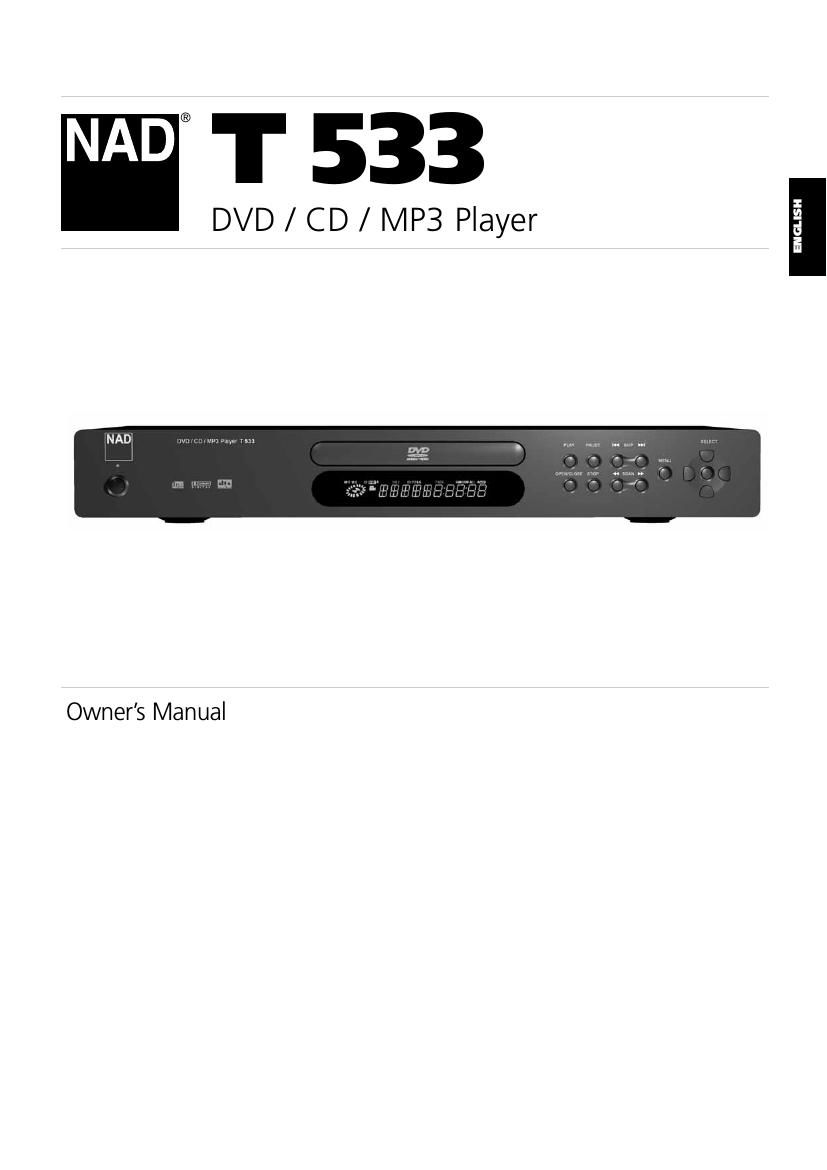

Nad T 533 Owners Manual
This is the 30 pages manual for Nad T 533 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nad T 533 Owners Manual (Ocr-read)
Page 1
2 WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE CAUTION THIS DVD PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS OWNERS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION. USE OF CONTROLS, ADJUSTMENTS TO MODIFY PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION EXISTS WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM. THE APPARATUS SHOULD NOT BE EXPOSED TO DRIPPING OR SPLASHING, AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NEVER BE PLACED ON THE APPARATUS. W ARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USERS AUTHORITY TO OPERATE THE EQUIPMENT. This product is manufactured to comply with the radio interference r equirements of EEC DIRECTIVE 89/336/EEC, 93/68/EEC and 73/23/EEC. NOTES ON COPYRIGHT It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyright material without permission. This product is equipped with copy protection measures developed by Macrovision. Copy protection signals are recorded on some discs. When recording these discs on a VCR, picture noise will appear during playback. This product incorporates copyright protection technology that is protected by certain U.S. patent claims and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT) The model and serial number of your new DVD player are located on the back of the DVD player cabinet. For your future convenience, we suggest that you record these numbers here: MODEL NO.____________________________ SERIAL NO.____________________________ SAFETY PRECAUTIONS Introduction ENGLISH FRANÇAIS DEUTSCHNEDERLANDS ESPAÑOLITALIANO PORTUGUÊS SVENSKA NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited Copyright 2003, NAD Electronics International, a division of Lenbrook Industries Limited T533AH_eng 10/10/03 4:10 pm Page 2
Page 2
3 INTRODUCTION Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ 2 Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . .5Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . 4 Disc-related terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Types of video CDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Precautions for handling the unit . . . . . . . . . . . . . . . . . . . . . . . . 5 Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . 5 About Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . 5 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . .6 Front Panel and Display Window . . . . . . . . . . . . . . . . . . . . . . . .7 Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . .8 PREPARATION Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . .9 Connecting to a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Connecting to Optional Equipment . . . . . . . . . . . . . . . . . . . . . 10 Before Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ 11 General Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 On-Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . 13 Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . 13 Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . 13 Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . 14 Speaker selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . 15 Parental Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15\ OPERATION Operation with DVD and Video CD . . . . . . . . . . . . . . . . . . . . .17Playing a DVD and Video CD . . . . . . . . . . . . . . . . . . . . . . . . . 17 General Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17\ Special DVD Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 DVD Audio Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Operation with Audio CD and MP3 / WMA Disc . . . . . . . . . . .21 Playing an Audio CD and MP3 / WMA Disc . . . . . . . . . . . . . . . 21 Notes on MP3/WMA Recordings . . . . . . . . . . . . . . . . . . . . . . . 21 Operation with JPEG Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Viewing a JPEG disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Programmed Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 REFERENCE Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ .26 T able of Languages and Their Abbreviations . . . . . . . . . . . . . .27 Country Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ 28 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . .29 T ABLE OF CONTENTS Introduction ENGLISH FRANÇAIS DEUTSCH NEDERLANDS ESPAÑOL ITALIANO PORTUGUÊS SVENSKA T533AH_eng 10/10/03 4:10 pm Page 3
Page 3
4 PLAYABLE DISCS DVD video discs (8 cm / 12 cm disc) DVD audio discs (8 cm / 12 cm disc) Video CD (VCD) (8 cm / 12 cm disc) Audio CD (8 cm / 12 cm disc) In addition, this unit can play a DVD-R, DVD±RW, Kodak PICTURE CD, SVCD, and CD-R or CD-RW that contains audio titles, MP3, WMA or JPEG files. NOTES - Depending on the conditions of the recording equipment or the CD- R/RW (or DVD-R/±RW) disc itself, some CD-R/RW (or DVD-R/±RW) discs cannot be played on the unit. - Do not attach any seal or label to either side (the labeled side or the\ recorded side) of a disc. - Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). It may result in malfunctions. NOTES ON DVDS AND VIDEO CDS Some playback operations of DVDs and Video CDs may be intentionally fixed by software manufacturers. As this unit plays DVDs and Video CDs according to disc content designed by the software manufacturer, some playback features of the unit may not be available or other functions may be added. Refer also to the instructions supplied with the DVDs and Video CDs. Some DVDs made for business purposes may not be played on the unit. REGIONAL CODE OF THE DVD PLAYER AND DVDS This DVD player is designed and manufactured for playback of r egion 1 encoded DVD software. The region code on the labels of some DVD discs indicates which type of player can play those discs. This unit can play only DVD discs labeled 1 or ALL. If you try to play any other dis\ cs, the message Check Regional Code will appear on the TV screen. Some DVD discs may not have a region code label even though their playback is prohibited by area limits. DISC-RELATED TERMS TITLE (DVD VIDEO DISCS ONLY) The main film content, accompanying feature content, additional feature content, or music album. Each title is assigned a title reference number enabling you to locate it easily. CHAPTER (DVD VIDEO DISCS ONLY) Sections of a picture or a musical piece that are smaller than titles. A title is composed of one or several chapters. Each chapter is assigned a chapter number, enabling you to locate the chapter you want. Depending on the disc, chapters may not be recorded. GROUP (DVD AUDIO DISCS ONLY) The main audio content or accompanying feature content or additional feature content, or music album. Each group is assigned a group r eference number enabling you to locate it easily. TRACK (DVD AUDIO, VIDEO CD AND AUDIO CD ONLY) Sections of a picture or a musical piece on a video CD or an audio CD. Each track is assigned a track number, enabling you to locate the track you want. SCENE On a video CD with PBC (Playback control) functions, moving pictures and still pictures are divided into sections called Scenes. Each scene is displayed in the menu screen and assigned a scene number, enabling you to locate the scene you want. A scene is composed of one or several tracks. TYPES OF VIDEO CDS There are two types of video CDs: V ideo CDs equipped with PBC (Version 2.0) PBC (Playback control) functions allow you to interact with the system via menus, search functions, or other typical computer-like operations. Moreover, still pictures of high resolution can be played if they are included in the disc. V ideo CDs not equipped with PBC (Version 1.1) Operated in the same way as audio CDs, these discs allow playback of video pictures as well as sound, but they are not equipped with PBC. BEFORE USE Introduction ENGLISH FRANÇAIS DEUTSCHNEDERLANDS ESPAÑOLITALIANO PORTUGUÊS SVENSKA 1 T533AH_eng 10/10/03 4:10 pm Page 4
Page 21
22 SEARCH 1Press and hold SCAN or > > during playback. The player will now go into SEARCH mode. 2 Press and hold SCAN or repeatedly to select the required speed: X2, X4, X8 (backward) or X2, X4, X8 (forward). Search speed and direction are indicated on the menu screen. 3 To exit SEARCH mode, press PLAY. RANDOM 1 Press RANDOM during playback or when playback is stopped. The unit automatically begins Random Playback and RANDOM or RAND. appears on the display window and menu screen. 2 To return to normal playback, press RANDOM repeatedly until RANDOM or RAND. disappears on the display window and menu screen. REPEAT A-B To r epeat a sequence: 1 During disc playback, press RPT A-B at your chosen starting point. The Repeat icon and A * appears on the menu screen. 2 Press RPT A-B again at your chosen end point. The Repeat icon and A B appears on the menu screen, and the sequence begins to play repeatedly. 3 To exit the sequence and return to normal play, press RPT A-B again. The Repeat icon and OFF appears on the menu screen. 3D SURROUND This unit can produce a 3D Surround effect, which simulates multi- channel audio playback from two conventional stereo speakers, instead of the five or more speakers normally required to listen to multichannel audio from a home theater system. 1 Press DISP during playback. 2 Use to select the sound option. The sound option will be highlighted. 3 Use to select 3D SUR. To turn off the 3D Surround effect, select NORM. CHANGING THE AUDIO CHANNEL Press AUDIO repeatedly during playback to hear a different audio channel (STER., LEFT, or RIGHT). CD CD CD WMA MP3 CD WMA MP3 CD OPERATION WITH AUDIO CD AND MP3 / WMA DISC Operation ENGLISH FRANÇAIS DEUTSCHNEDERLANDS ESPAÑOLITALIANO PORTUGUÊS SVENSKA T533AH_eng 10/10/03 4:11 pm Page 22
Page 26
ENGLISH FRANÇAIS DEUTSCH NEDERLANDS ESPAÑOL ITALIANO PORTUGUÊS SVENSKA 27 Language Code List Enter the appropriate code number for the initial settings Disc Audio, Dis\ c Subtitle and/or Disc Menu Code Language Code Language Code Language Code Language6566 Abkhazian 7074 Fiji 7678 Lingala 8373 Singhalese 6565 Afar 7073 Finnish 7684 Lithuanian 8375 Slovak 6570 Afrikaans 7082 French 7775 Macedonian 8376 Slovenian 8381 Albanian 7089 Frisian 7771 Malagasy 8379 Somali 6577 Ameharic 7176 Galician 7783 Malay 6983 Spanish 6582 Arabic 7565 Georgian 7776 Malayalam 8385 Sudanese 7289 Armenian 6869 German 7784 Maltese 8387 Swahili 6583 Assamese 6976 Greek 7773 Maori 8386 Swedish 6588 Aymara 7576 Greenlandic 7782 Marathi 8476 Tagalog 6590 Azerbaijani 7178 Guarani 7779 Moldavian 8471 Tajik 6665 Bashkir 7185 Gujarati 7778 Mongolian 8465 Tamil 6985 Basque 7265 Hausa 7865 Nauru 8484 Tatar 6678 Bengali; Bangla 7387 Hebrew 7869 Nepali 8469 Telugu 6890 Bhutani 7273 Hindi 7879 Norwegian 8472 Thai 6672 Bihari 7285 Hungarian 7982 Oriya 6679 Tibetan 6682 Breton 7383 Icelandic 8065 Panjabi 8473 Tigrinya 6671 Bulgarian 7378 Indonesian 8083 Pashto, Pushto 8479 Tonga 7789 Burmese 7365 Interlingua 7065 Persian 8482 Turkish 6669 Byelorussian 7165 Irish 8076 Polish 8475 Turkmen 7577 Cambodian 7384 Italian 8084 Portuguese 8487 Twi 6765 Catalan 7465 Japanese 8185 Quechua 8575 Ukrainian 9072 Chinese 7487 Javanese 8277 Rhaeto-Romance 8582 Urdu 6779 Corsican 7578 Kannada 8279 Rumanian 8590 Uzbek 7282 Croatian 7583 Kashmiri 8285 Russian 8673 Vietnamese 6783 Czech 7575 Kazakh 8377 Samoan 8679 Volapük 6865 Danish 7589 Kirghiz 8365 Sanskrit 6789 Welsh 7876 Dutch 7579 Korean 7168 Scots Gaelic 8779 Wolof 6978 English 7585 Kurdish 8382 Serbian 8872 Xhosa 6979 Esperanto 7679 Laothian 8372 Serbo-Croatian 7473 Yiddish 6984 Estonian 7665 Latin 8378 Shona 8979 Yoruba 7079 Faroese 7686 Latvian, Lettish 8368 Sindhi 9085 Zulu T ABLE OF LANGUAGES AND THEIR ABBREVIATIONS Reference T533AH_eng 10/10/03 4:11 pm Page 27
