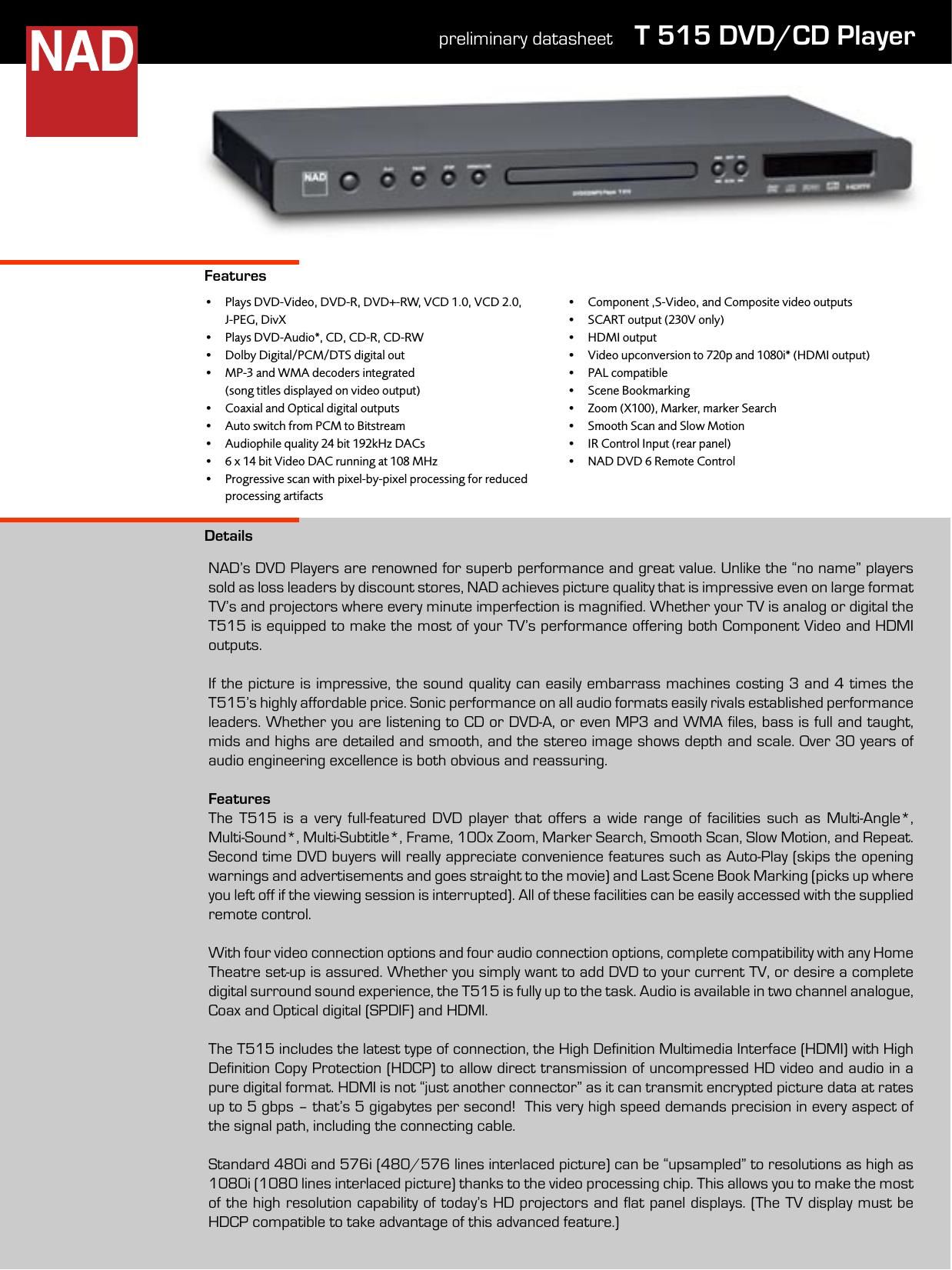

Nad T 515 Brochure

Page 1

Most popular disc formats are supported by the T515, including JPEG, as well as MP-3 and WMA (Windows Media Audio). DVD-R recordable DVD format is fully supported. Other DVD recording formats (DVD+R and DVD-RAM) may, or may not play properly, depending on the specific recorder and blank disc used. Performance Audio performance is fully up to NADs high standards, and the T515 is a superb music player for CD and two channel DVD- Audio. With full support for CD-R and CD-RW formats the T515 is right up to date. Even MP-3 and WMA files can be played back on this versatile player, with one CD-R capable of up to 10 hours of continuous music playback! Whichever audio format is chosen, the signal will be processed and decoded with typical NAD precision. The analogue output stages are fed from separate regulated power supplies, and utilize audiophile quality parts to retain all the dynamics and detail contained in the original recording. Equal attention has been paid to the video performance capabilities: Keeping signal paths short and direct to minimise any interference, the 14 bit 108 MHz Video DACs are capable of reproducing the finest of picture details, where black is truly black and with vivid colours extremely faithful to the original. The Component Video output (Y, Cr, Cb) sports Progressive Scan to get the most out of the latest high-end digital video monitors and projectors with significantly increased resolution when compared to standard, interlaced video. For video displays without Component Video input, the SCART (which supports RGB 230V only) and S-Video connectors offer superior video performance. Value The NAD T515 brings NAD quality and performance to an affordable price range. While this player is a natural partner to one of NADs high performance AV Receivers, its superb performance and exceptional value make it an outstanding choice in its own right. SPECIFICATIONS Audio Frequency Response CD Audio Frequency Response DVD (96kHz) Output Level Sign al/noise ratio, A-weighted THD (at 0dB, 1kHz) Wow and Flutter Channel separatio n CD Dynamic range Number of discs DVD Video Signal to Noise Signal System 4Hz to 20kHz 4Hz to 44kHz 2V rms -100dB 0.005% Quartz Accuracy 95dB 103 dB 1 60dB PAL/NTSC Output Digital Coaxial - PCM, DTS, MPEG, AC3 Digital Optical - PCM, DTS, MPEG, AC3 Composite Video S-Video Component VideoHDMI Remote Control Physical Specifications Dimensions (W x H x D) Net Weight Shipping Weight 0.5 p-p 75Ω, RCA x 1 3V p-p 75Ω 1v p-p 75Ω 1 x RCA Y/C 4 pin x 1 RCA x 3 Y/Cb/Cr YES NAD DVD- 6 17 1/8 x 1 7/8 x 9 1/2 (436 x 39 x 240mm) 5.0lbs (2.2kg) 7.0lbs (3.2kg) NAD Electronics International reserves the right to change specifications or features without notice. NAD is a registered trademark of NAD ElectronicsInternational. All r permission of NAD Electronics International. © 07/06 NAD Electronics International. www.NADelectronics.com
