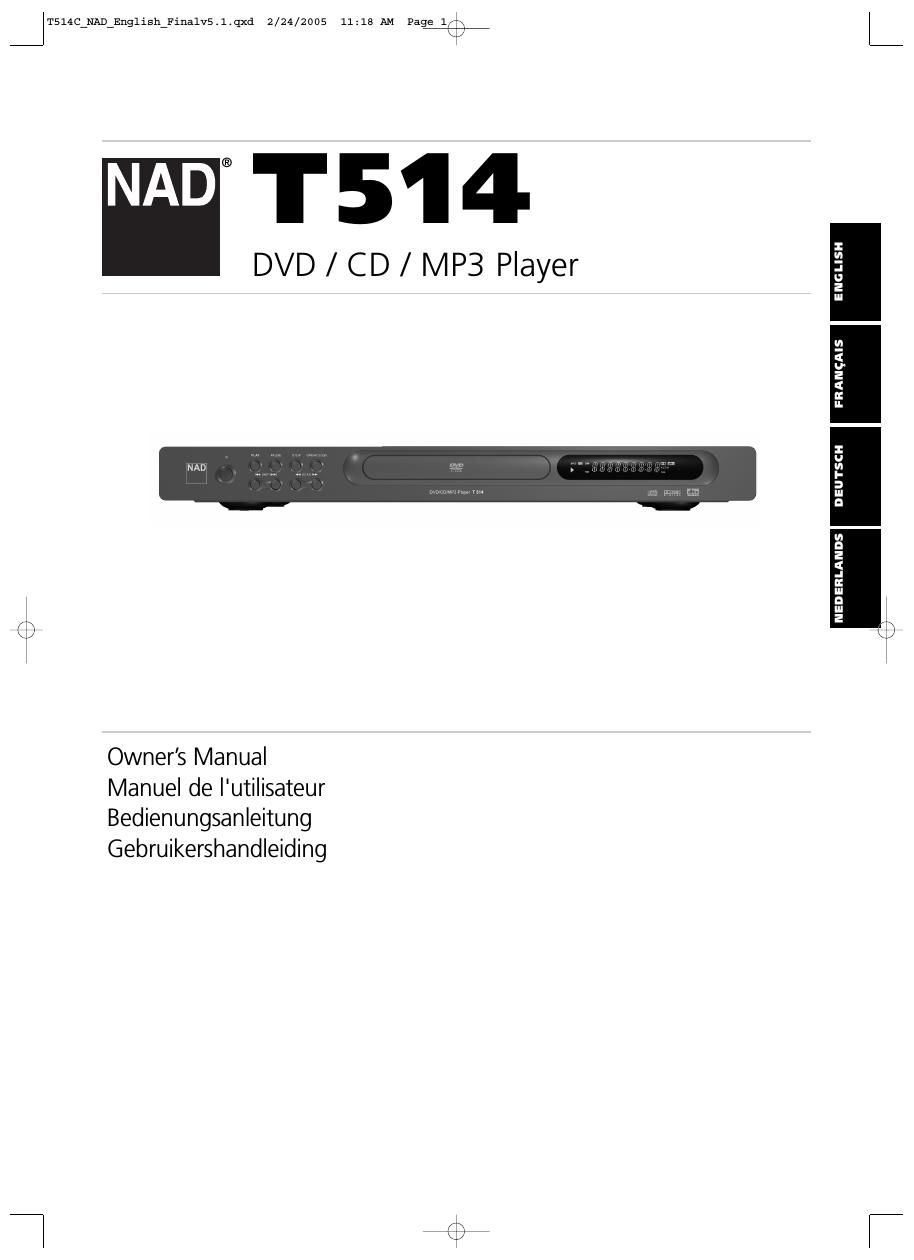

Nad T 514 Owners Manual 2
This is the 30 pages manual for Nad T 514 Owners Manual 2.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nad T 514 Owners Manual 2 (Ocr-read)
Page 1
2 WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER OR BACK OF THIS PRODUCT. THERE ARE NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO DRIPPING OR SPLASHING WATER, RAIN, OR MOISTURE. DO NOT PLACE OBJECTS FILLED WITH WATER SUCH AS VASES, ON THE PRODUCT. WARNING: THIS DIGITAL VERSATILE DISC PLAYER EMPLOYS A LASER SYSTEM. USE OF CONTROLS, ADJUSTMENTS, OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. WARNING: TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT OPEN THE ENCLOSURE. VISIBLE LASER RADIATION WHEN OPEN. WARNING: NEVER STARE DIRECTLY INTO THE LASER BEAM. CAUTION DO NOT INSTALL THIS PRODUCT IN A CONFINED SPACE SUCH AS A BOOK CASE OR SIMILAR UNIT. This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 89/336/EEC, 93/68/EEC and 73/23/EEC. NOTES ON COPYRIGHT It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE STANDARD DEFINITION OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER. SERIAL NUMBER: You can find the serial number on the back of the unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. MODEL NO. ____________________________ SERIAL NO. ____________________________ DATE OF PURCHASE _________________________ SAFETY PRECAUTIONS Introduction ENGLISH FRANÇAIS DEUTSCHNEDERLANDS ESPAÑOLITALIANO PORTUGUÊS SVENSKA NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited Copyright 2005, NAD Electronics International, a division of Lenbrook Industries Limited CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN T514C_NAD_English_Finalv5.1.qxd 2/24/2005 11:18 AM Page 2
Page 2
3 INTRODUCTION Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . .2 Before use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . .4Symbol used in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 About the ( ) Symbol Display . . . . . . . . . . . . . . . . . . . . . . . . . .4 Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . .4 Types of Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Disc-related terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ .6 Front Panel and Display Window . . . . . . . . . . . . . . . . . . . . . . . . .7 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . . . . .8 Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . .9 INSTALLATION AND SETUP Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . . .10 Setting up the Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 DVD Player Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Audio Connection to Optional Equipment . . . . . . . . . . . . . . . . .11 Before operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . .11 On-Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ 12 Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . .13 Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . 13 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . 13 AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . 14 Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . 15 LOCK (Parental Control) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 OPERATION Operation with DVD and Video CD . . . . . . . . . . . . . . . . . . . . . . .17Playing a DVD or Video CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 General Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ .17 Special DVD Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Operation with Audio CD and MP3 / WMA Disc . . . . . . . . . . . .20 Playing an Audio CD or MP3/WMA Disc . . . . . . . . . . . . . . . . . . .20 Audio CD and MP3 / WMA Disc Features . . . . . . . . . . . . . . . . . .21 Programmed Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Operation with JPEG Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Viewing a JPEG Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Operation with a DVD VR format Disc . . . . . . . . . . . . . . . . . . . .24 Maintenance and Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Additional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25\ REFERENCE Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . .26 Table of Languages and their Codes . . . . . . . . . . . . . . . . . . . . . .27 Country Codes List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ .28 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\ . . . . .29 TABLE OF CONTENTS Introduction ENGLISH FRANÇAIS DEUTSCH NEDERLANDS ESPAÑOL ITALIANO PORTUGUÊS SVENSKA T514C_NAD_English_Finalv5.1.qxd 2/24/2005 11:18 AM Page 3
Page 3
4 Introduction ENGLISH FRANÇAISDEUTSCHNEDERLANDS ESPAÑOLITALIANO PORTUGUÊS SVENSKA To ensure proper use of this product, please read this owners manual carefully and retain for future reference. This manual provides information on the operation and maintenance of your DVD player. Should the unit require service, contact an authorized service location. SYMBOL USED IN THIS MANUAL The lightning flash symbol alerts you to the presence of dangerous voltage within the product enclosure that may constitute a risk of electric shock. The exclamation mark alerts you to the presence of important operating and maintenance / servicing instructions. Indicates hazards likely to cause harm to the unit itself or other material damage. NOTE: Indicates special notes and operating features. TIP: Indicates tips and hints for making the task easier. A section whose title has one of the following symbols is applicable onl\ y to the disc represented by the symbol. DVD and finalized DVD±R/RW Video CDs Audio CDs MP3 Discs WMA Discs JPEG Discs ABOUT THE SYMBOL DISPLAY may appear on your TV display during operation and indicates that the function explained in this owners manual is not available on that specific DVD video disc. NOTES ON DISCS HANDLING DISCS Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tap\ e on the disc. STORING DISCS After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight. CLEANING DISCS Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the centre out. Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records. JPEG WMA MP3 CD VCD DVD-V BEFORE USE T514C_NAD_English_Finalv5.1.qxd 2/24/2005 11:18 AM Page 4
Page 8
9 Introduction ENGLISH FRANÇAIS DEUTSCH NEDERLANDS ESPAÑOL ITALIANO PORTUGUÊS SVENSKA REMOTE CONTROL ON Switches DVD Player ON. AUDIO Selects an audio language (DVD). SUBTITLE Selects a subtitle language. ANGLE Selects a DVD camera angle if available REPEAT Repeat chapter, track, title, all. RPT A-B Repeat sequence. RANDOM Plays tracks in random order. MARKER Marks any point during playback. SEARCH Displays MARKER SEARCH menu. RESOLUTION You can change the resolution depending on your TV . SLOW ( / ) Reverse/ Forward slow playback. TITLE Displays the discs Title menu, if available. SETUP Accesses or removes setup menu. (left/right/up/down) - Selects an item in the menu. ENTER Acknowledges menu selection DISP Accesses On-Screen display OFF Switches DVD Player OFF. PROGRAM Enters to the program edit mode or exits from that. CLEAR Removes a track number on the program list or a mark on the MARKER SEARCH menu. ZOOM Enlarges video image. 0-9 number buttons Selects numbered items in a menu. SCAN ( / ) Press for fast reverse search or forward search. MENU Accesses menu on a DVD disc. RTN Displays the menu of a video CD with PBC. OPEN/CLOSE Opens and closes the disc tray. STOP ( ) Stops playback. PAUSE/STEP ( ) Pauses playback temporarily/ press repeatedly for frame-by-frame playback. Reverse SKIP ( ) Go to beginning of current chapter or track or go to previous chapter or track. PLAY ( ) Starts playback. Forward SKIP ( ) Go to next chapter or track. SCAN 2 5 8 4 7 3 6 9 0 1 MENU RTN DISP TITLE ENTER DVD 6 ANGLE ON OFF SUBTITLE AUDIO SLOW SETUP RPT A-B REPEAT RANDOM SEARCH MARKER CLEAR PROGRAM ZOOM OPEN/CLOSE STOP PAUSE/STEP PLAY SKIP SKIP RESOLUTION PLACE BATTERIES INTO OPENING. ENSURE THE CORRECT POLARITY IS OBSERVED REPLACE BATTERY COVER BY ALIGNING AND INSERTING THE TWO TABS INTO THE HOLES. PRESS BATTERY COVER INTO PLACE UNTIL IT 'CLICKS' CLOSED PRESS IN AND LIFT TAB TO REMOVE BATTERY COVER OUT FROM RECESS T514C_NAD_English_Finalv5.1.qxd 2/24/2005 11:18 AM Page 9
