Nad S 500 Service Manual
This is the 23 pages manual for Nad S 500 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nad S 500 Service Manual (Ocr-read)
Page 1
|||||l|l||l||||||lllllllllllllllllllllll
V27270

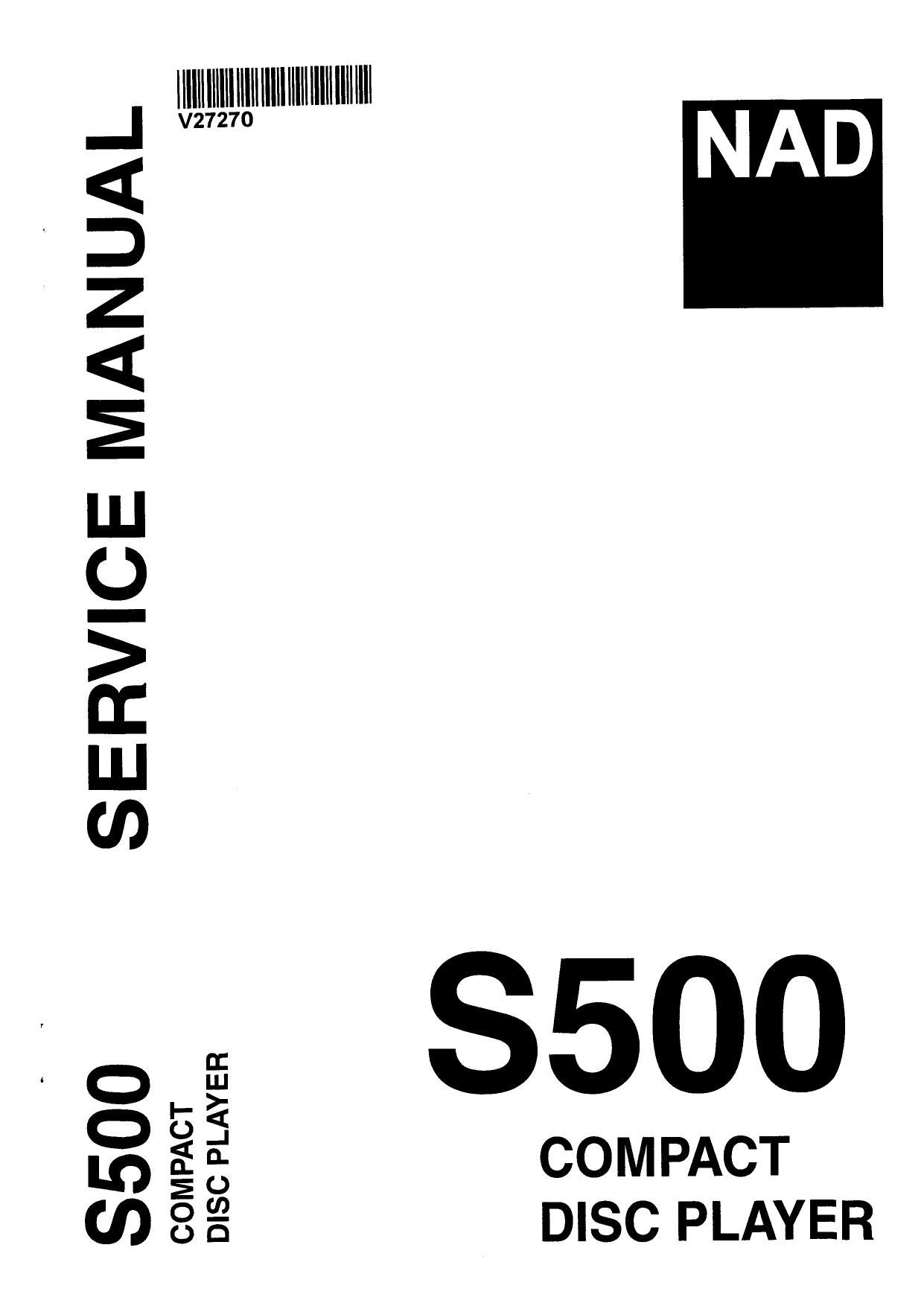

SERVICE MANUAL
$500
COMPACT
DISC PLAYER
DISC PLAYER
$00
Page 2
CONTENTS
FRONT PANEL/ REAR PANEL VIEW ................................... 3
SPECIFICATIONS ................................................... 4
WIRING DIAGRAM .................................................. 5
PCB LAYOUT .................................................... 6-10
SCHEMATIC DIAGRAM ........................................... 11-14
ELECTRICAL PARTS LIST ......................................... 15-19
IC BLOCK DIAGRAM ................................................ 20
EXPLODED VIEW .................................................. 21
EXPLODED VIEW PARTS LIST ....................................... 22
PACKING DIAGRAM ................................................ 23
SERVICE SAFETY PRECAUTIONS
1. Replacing the Fuses
CAUTION: FOR CONTINUED PROTECTION AGAINST THE RISK OF FIRE REPLACE ONLY
WITH SAME TYPE OF FUSE.
REFERENCE NO. PART NUMBER DESCRIPTION
AC INLET FUSE Fuse Tlme Lag 500mA 250V 5x20mm UL/CSA
F451 -F452*AH 5120~0032-0 Fuse TIme Lag 2A250V 5x20mm UL/CSA
AC INLET FUSE Fuse Time Lag 250mA250V 5X20mm SEMKONDE
F451-F452C 5120-0065-0 Fuse Time Lag 2A250V 5x20mm SEMKONDE
NOTE:
*AH : North American model only
*C : European model only
2. Safety-check out (North American model only)
Parts marked with the symbol A are critical with regard to the risk of fire and electric shock.
Replace only with parts recommended by the manufacturer.
