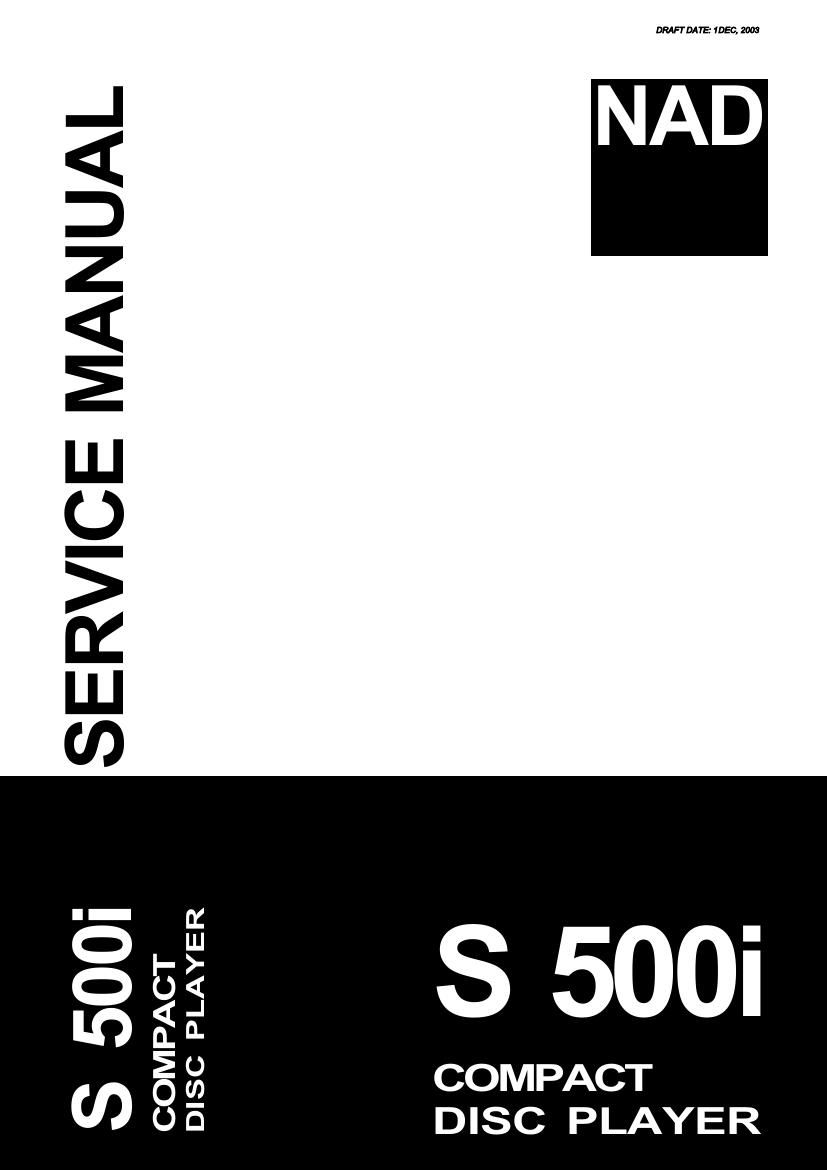

Nad S 500 I Service Manual
This is the 27 pages manual for Nad S 500 I Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nad S 500 I Service Manual (Ocr-read)
Page 1
EX PL O DED V IE W C om pac t D is c P la y e r S 50 0i PL A Y / P A U SE S TO P / O P E N S C AN S K IP N AD 1 1 2 2 3 3 5 5 6 6 7 7 7 7 8 8 9 9 10 1 0 11 1 1 7 7 7 7 4 4 1 2 1 2 1 3 1 3 15 1 5 17 1 7 1 8 1 8 16 1 6 19 1 9 2 0 2 0 2 1 2 1 22 2 2 2 3 2 3 25 2 5 26 2 6 27 2 7 28 2 8 2 9 2 9 3 1 3 1 30 3 0 24 2 4 NAD N AD 32 1 4 1 4
Page 2
EXPLODED VIEW PARTS LIST* Location Part Number Description Quantity 1 S500i-2001-1 FRONT FASCIA 1 2 S500-2004-2 TOP COVER 1 3 S500-2005-4 REAR PANEL 230V 1 Parts marked with the symbol are critical with regard to the ris\ k of fire and electric shock. Replace only with parts recommended by the manufacturer. 4 S500i-2003-1 BASE PLATE 1 5 S500-2002R-3 RIGHT SIDE PANEL 1 6 S500-2002L-4 LEFT SIDE PANEL 1 7 S500-2026-2 PCB BAR 4 8 S500-2036-2 CLAMP BAR 1 9 S100-2020-2 AC INLET PLATE 1 10 S500-2016-1 PCB PLATE 1 11 S500-2009-5 HEAT SINK 1 2 12 S500i-2013-2 RIGHT MECHANISM BRACKET 1 13 S500i-2113-2 LEFT MECHANISM BRACKET 1 14 NPN TRANSFORMER BOLT 1 15 S500i-2023-2 TRAFO BRACKET 1 16 S500i-2008-2 CD TRAY LID 1 17 S100-2011-4 10MM POWER BUTTON 1 18 S100-2121-2 6MM INPUT BUTTON 4 19 S100-2013-3 FOOT WITH RUBBER CUSHION 4 20 S400-2221-2 DISPLAY LENS 1 21 5200-3181-0-01 POWER SWITCH 1 22 AC1 AC INLET 1 23 S500-0206 BNC CONNECTOR 1 24 VAE1250 CD MECHANISM WITH LOADER 1 25 TI-65575A TRANSFORMER 1 26 S500-0130 POWER SUPPLY (PSU PCB) 1 27 S500-0100 CONTROL PCB 1 28 S500-0150 DAC PCB 1 29 S500-0170 FRONT PANEL PCB** 1 30 S500-0205 POWER SWITCH PCB WITH SWITCH 1 31 S400-DISPLAY DISPLAY MODULE** 1 32 MECH-S500i MECHANISM INTERFACE BOARD 1 + 7 SOCKETS & STICKY FOAM/TAPE 1 ** S500-0171 S500-0170 FRONT PANEL PCB AND S400-DISPLAY DISPLAY \ MODULE * Refer to S500 Service Manual for electrical parts and service procedu\ res.
