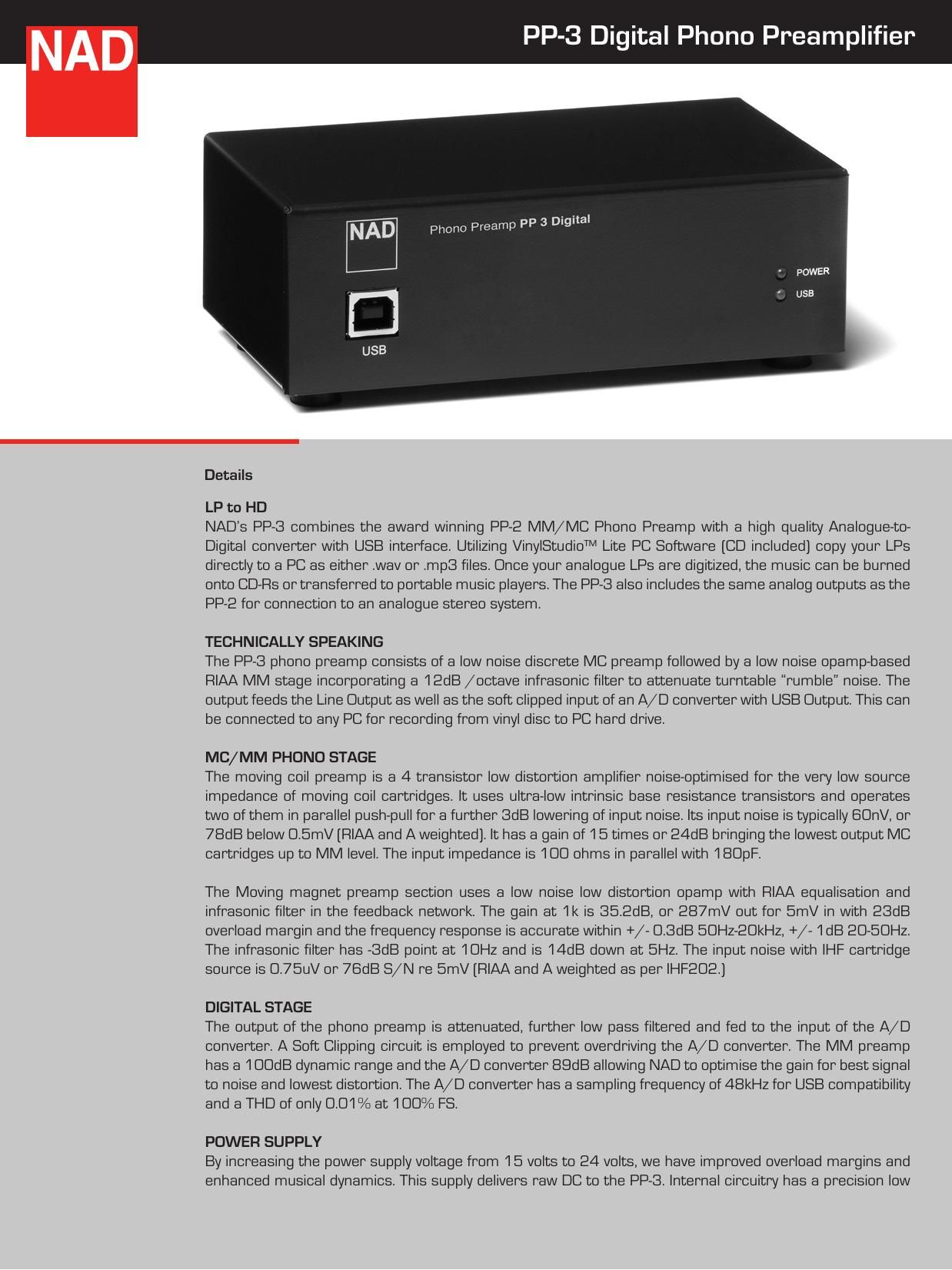

Nad PP 3 Brochure

Page 1

NAD Electronics International reserves the right to change specifications or features without notice. NAD is a registered trademark of NAD ElectronicsInternational. All rights reserved. No part of this publication may be reproduced, stored, or transmitted in any form whatsoever without the written permission of NAD Electronics International. © 07/08 NAD Electronics International. www.NADelectronics.com noise series current source /shunt regulator arrangement for low impedance and noise. The digital stage is fed by the 5V USB supply of the PC thus offering total isolation of the analogue and digital stages for clean low noise performance. SUMMARY This sophisticated and cost-effective component allows you to enjoy your vinyl LP collection through your normal stereo system, but also gives the option to record your LPs into todays digital formats. The additional Line Input allows any other analogue source, be it FM radio, Tape, or the analogue output of your CD player, to be converted to the digital USB format. This also adds back the input on your Amp or Receiver used up by the PP-3. This extra functionality makes the PP-3 an easy upgrade from the PP-2, while maintaining the PP-2s extraordinary performance and sound quality. SPECIFICATIONS Input impedance Gain at 1kHz Input sensitivity (1kHz for 300mV output) Signal to noise (A weighted, with cartridge connected) (Un-weighted, with cartridge connected) Input Overload (20Hz/1kHz/20kHz) Rated distortion (THD 20Hz - 20kHz at 3V) RIAA response accuracy Infrasonic filter Digital Output (USB) Sampling frequency Dynamic Range Net Dimensions ( excl. Power supply) (W x H x D) Gross Dimensions ( excl. Power supply) (W x H x D) Net Weight (includes power supply) Shipping Weight MM 47kohms + 200pF 35dB 5mV 76dB 65dB 10/100/900mV <0.03% +/- 0.3dB -3dB (10Hz) -14dB (5Hz) 16 bit linear PCM 48kHz 89dB 5 1/4 x 1 11/16 x 2 13/16 (146 x 43 x 71mm ) 5 1/4 x 1 15/16 x 3 (146 x 49 x 76mm ) 0.9lbs (0.4kg) 1.7lbs (0.75kg) MC 100ohms + 180pF 58dB 0.35mV 78dB 70dB 0.65/6.5/60mV <0. 03% +/- 0.3dB -3dB at 10Hz - 14dB at 5Hz 16 bit linear PCM 48kHz 86dB LINE OUT PHONO PHONO INPUT SELECTOR LINE IN LINE IN
