Page 1

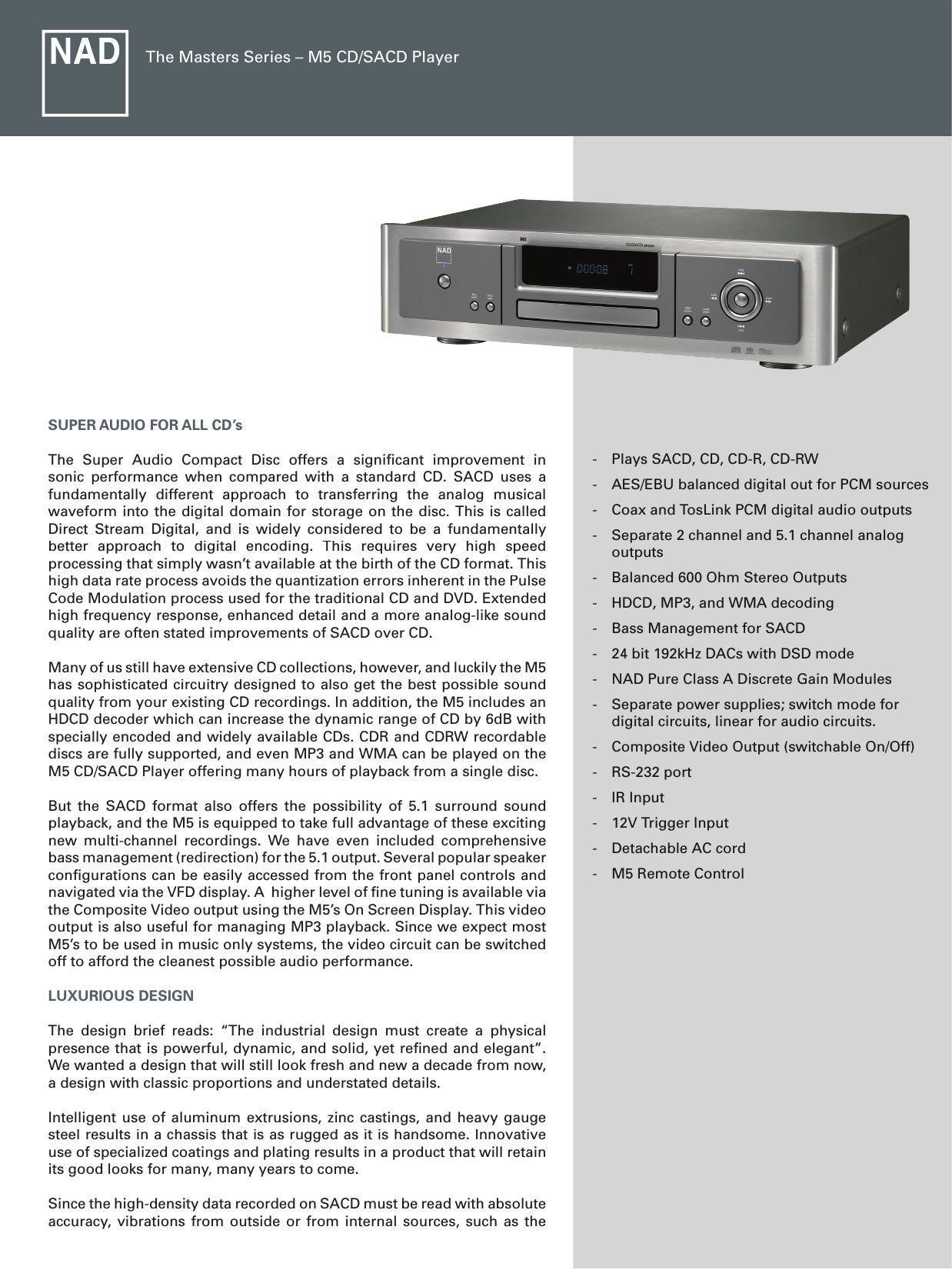

power supply, will adversely affect sound and picture quality. A variety of special measures have been incorporated in the NAD M5 to suppress these unwanted vibrations, from the carefully engineered heavy gauge steel chassis, to the vibration isolating silicon rubber foot design. AUDIO PERFORMANCE Separately confi gured signal paths for the CD and SACD audio maintain the highest possible levels of CD and SACD sound quality. PCM Digital audio outputs are available in AES/EBU (balanced), coaxial, and optical (TosLink) SPDIF formats. The NAD M5 uses professional grade D/A converters with 24-bit, 192-kHz resolution for PCM (CD) signals, and a special DSD mode for SACD. These premium devices are well protected from noise caused by even minute fl uctuations in current from the power supply. Separate digital fi lters are employed for the SACD and CD signal paths to perfectly compliment these uniquely different signal formats. The level of quantization noise within the frequency range is uniform for all frequencies and very well suppressed. This D/A converter ensures that all the sound you hear is as clear and noise-free as possible, regardless of recorded format. NADs specially designed discrete Class A gain modules keep all the detail in high resolution SACD perfectly intact, and offer very low output impedance across the frequency spectrum. These are the same high performance modules fi rst seen in the M3 preamplifi er stage, with distortion levels that are at the lower limits of measurement combined with ample undistorted output current to effortlessly drive even long cable runs. A set of balanced stereo analog outputs are included for very long runs and easy integration with professional studio equipment. The audio stage of the M5 is fed from a separate linear power supply utilizing a specially designed C-core transformer for the lowest possible noise and best supply regulation. The mechanical and digital circuits have their own independent NAD designed switch mode supply. Digital Bass Management is available for the SACD surround sound format. This prevents bass frequencies from overloading and distorting your speakers by redirecting them to your subwoofer which is specially designed to handle the lowest octaves. When playing Super Audio CD sources, it is possi¬ble to preset 5.1 speaker confi gurations. The crossover point is selectable with 12 dB high and 24 dB low pass fi lter slopes. VALUE Musical performance at the highest levels of attainment; inspired industrial design; Build Artistry construction; the M5 CD/SACD Player is without peer for its unique blend of features and performance at an incredibly affordable price. The M5 has the power and performance to literally transform your current CD collection, opening new musical vistas in your favorite recordings. The M5 also fully exploits the latest recorded music formats. From High Defi nition SACD, to compressed MP3 and WMA, the emotive value of music is always clearly communicated. If music is important in your life, listen to the NAD Masters Series M5.
Page 2
Audio Frequency Response CD Audio Frequency Response SACD Audio Output Level HDCD, SACD, CD RCA Out Balanced Signal/noise ratio, A-weighted 2 ch out: RCA Out CD: 2 ch out: RCA Out SACD: 2 ch out: Balanced CD: 2 ch out: Balanced SACD: 6 Ch out: THD (at 0dB, 1kHz) Wow and Flutter Channel separation CD Dynamic range CD SACD Number of discs Output Digital Coaxial - PCM, DTS, MPEG, AC3 Digital Optical - PCM, DTS, MPEG, AC3 Composite Video Remote Control Physical Specifi cations Dimensions (W x H x D) Net Weight Shipping Weight 4Hz to 20kHz 10Hz to 41kHz 2V rms 4.24V -110dB -116dB -112.5dB -121dB -95dB 0.0018% Quartz Accuracy 100dB 96dB 110dB 1 0.5 p-p 75 Ω, RCA x 1 3V p-p 75 Ω 1v p-p 75 Ω 1 x RCA NAD M5 17 1/8 x 3 7/8 x 11 4/5 (436 x 100 x 300mm) 20.3 lbs (9.2kg) 31.5 lbs (14.3kg) Specifi cationsSpecifi cations
