Nad L 53 Technical Bulletin
This is the 5 pages manual for Nad L 53 Technical Bulletin.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Page: 1 / 5
Extracted text from Nad L 53 Technical Bulletin (Ocr-read)

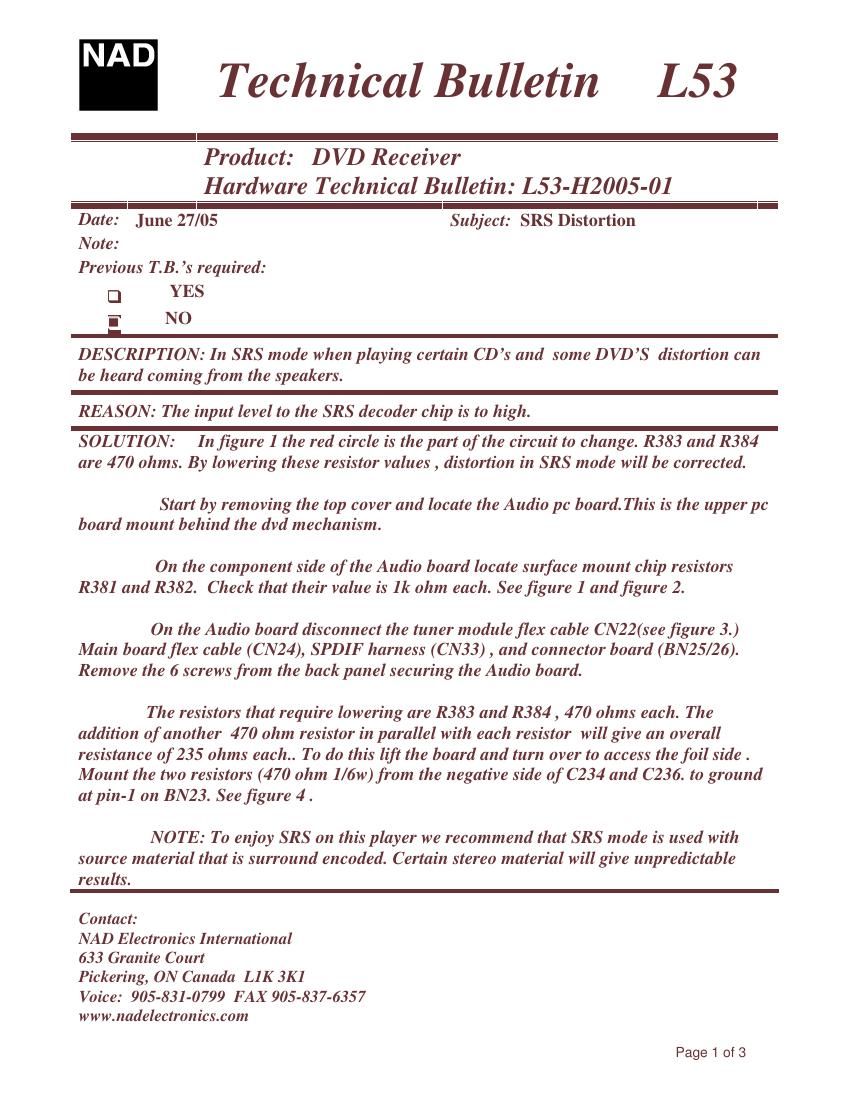

Page 1
Page 2 of 3 Technical Bulletin L53 Product: DVD Receiver Hardware Technical Bulletin: L53-H2005-01 Figure 1 (schematic of Audio board) Figure 2 R381,R382,R383,R384 SRS Decoder chip PC Board top view showing R381-R384 on Audio board.
Page 2
Page 3 of 3 Technical Bulletin L53 Product: DVD Receiver Hardware Technical Bulletin: L53-H2005-01 Figure 3 Figure 4 Bottom of Audio board showing addition of 470 ohm resistors Audio PC Board
