Nad HTR 5 Owners Manual
This is the 58 pages manual for Nad HTR 5 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nad HTR 5 Owners Manual (Ocr-read)

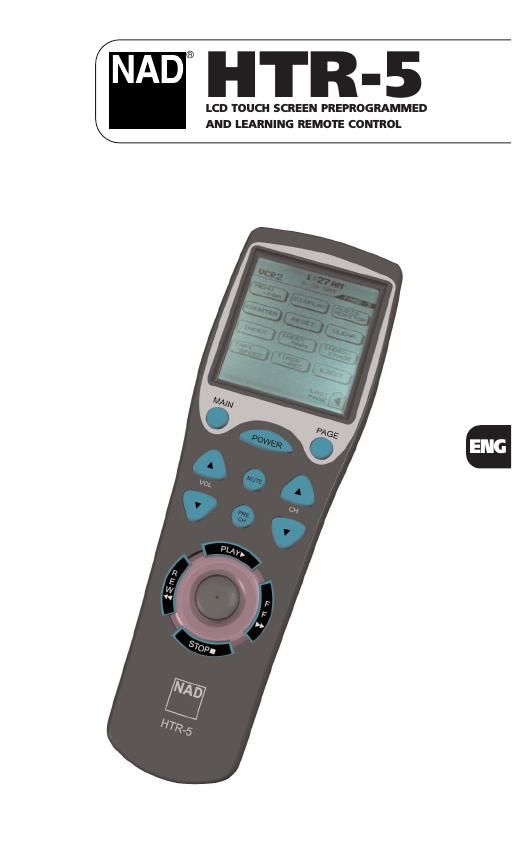

Page 1
2 ENG
Page 2
3 ENG TABLE OF CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Summary of Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 LCD Screen and Button Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Getting Ready with System Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Programming the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Preprogramming Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Learning method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Erasing the learned buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 System and Operations Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Setting up the system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Macro and Punch Through Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Programming Punch Through Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 To Edit the Buttons on LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 To Move buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 To Copy buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 To Delete buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 To Insert buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 To Change buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 To Edit a text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Clock Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Loading Programs with PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 LCD Screen Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 LCD Screen Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Caution on LCD Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Memory Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Erasing all the Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Appendix A. Set up Function Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 - 43 Appendix B. Set up code Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44 - 57 NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited Copyright 2002, NAD Electronics International, a division of Lenbrook Industries Limited
Page 18
19 ENG SYSTEM AND OPERATIONS SET UP MACRO AND PUNCH THROUGH PROGRAMMING The MACRO and PUNCH THROUGH can be also programmed in this mode. Press the button you wish to program and follow procedures shown below: MACRO PROGRAMMINGThere are three type of macro functions you can program. They are as follows: 1M1, M2 and M3 in the Main menu. Designed to send out up to twenty eight commands from each of the three buttons. 2Twelve device buttons in the Main menu. Send out up to fourteen commands from each device button. 3Favorite Channel Buttons. You can create and design up to 60 buttons as your Favorite Button in video modes. Each favorite channel button can send out up to fourteen commands with one button press. TO PROGRAM MACRO FUNCTIONS:Press MACRO PROGRAM button in 2. SYSTEM & OPTIONS FOR M1 – M3 BUTTON: 1Press one of the three macro buttons, M1 – M3, for which you want to store the macro. 2Select functional buttons you wish to store in the macro button. You can store up to 28 commands. 3Store the commands you selected to the macro button by pressing CH (UP) button. To cancel the macro commands, press CH (DOWN).
Page 38
LASER DISC - SET-UP FUNCTION TABLE Button Name 1 2 3 4 5 6 7 8 9 0 +10 DISPLD Functions 1 2 3 4 5 6 7 8 9 0 +10 Display Page 1 Button Name PAUSE OPEN/CLOSE STILL/STEP- STILL/STEP+ PROGRAM REPEAT ALL A-B SHUFFLE FRAME/TIME CLEARLD Functions Pause Open/Close Search- Search+ Program Repeat All A-B Shuffle Frame Clear Page 2 Button Name AUTO PGM DISC A DISC B AUDIO MONITOR ANALOG BACK AV TIME PICTURE CHANGE INTRO K1 K2 K3LD Functions Auto Program Disc A Disc B Audio Monitor Analog Back Time Picture Change Intro Random Disc Page 3 Button Name K4 K5 K6 K7 K8 K9 K10 K11 K12 K13 K14 K15LD Functions Disc 1 Disc 2 Disc 3 Disc 4 Disc 5 Edit Page 4 Button Name Device Name POWER CH UP CH DOWN VOL UP VOL DOWN MUTE PRE. CHLD Functions LD (On) On/Off (Off) Track+ / Skip+ Track- / Track+ Volume Up Volume Down Mute Button Name PLAY STOP REW F. F. CURSOR ENTER CURSOR UP CURSOR DOWN CURSOR LEFT CURSOR RIGHTLD Functions Play Stop Rew/Search- FF/Search+ 9
Page 56
15 Manufacturer/Brand3M AIWA ARCHER AUTON DMX DRAPER SCREEN DWIN EVERQUEST EXTRON FAROUDJA FUJI JERROLD JVC KENWOOD LITE-TOUCH LUTRON MAKITA MINDPATH NILES NSM PIANO DISC PLUS POLKAUDIO REPLAY RUSSOUND SCIENTIFIC ATLANTA SIMA SOLO ELECTRONICS SOMFY SONY STARCOM TIVO TURBOSCAN VELODYNE X-10 XANTECH Set-Up Code Number152 164 155 191 156 204 080 206 151 184 209 153 185 185 208 077 158 159 186 201 205 160 187 161 085 162 075 081 156 163 082 207 078 079 164 165 166 153 090 167 203 093 183 168 169 170 171 172 188 189 AUX - SET-UP CODE TABLE
